FS.com 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module for FS Switches
Product Information
FS.com SFP-10GLR-31

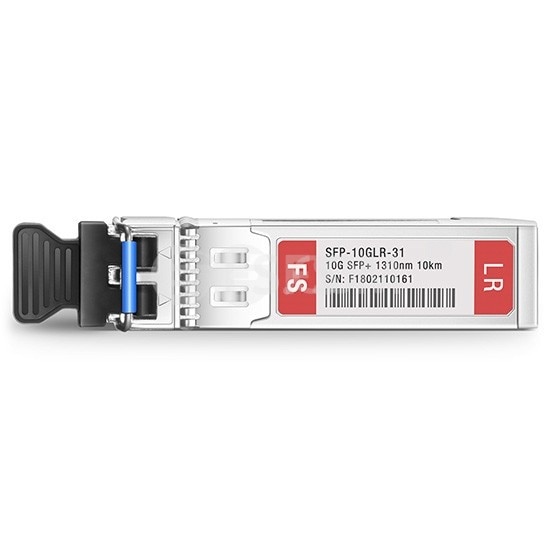

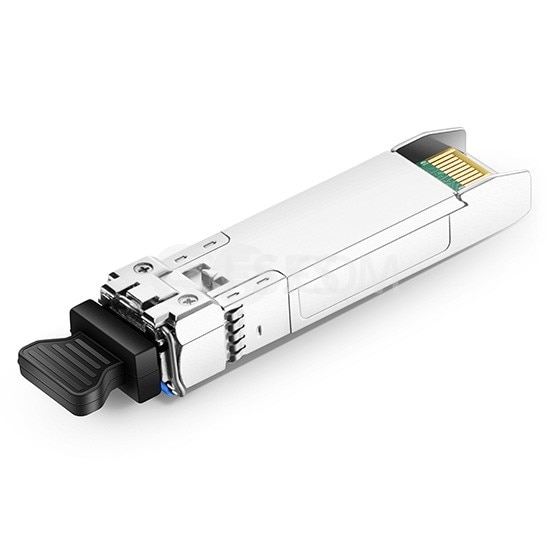

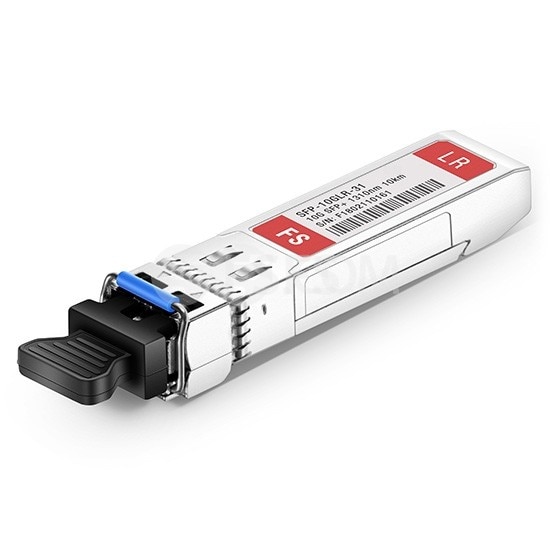

10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module for FS Switches
10GBASE-LR compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Each SFP+ transceiver module is individually tested to be used on a series of FS switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
High Performance
- Low power consumption <1W, saving power
- 2ns typical latency, MTBF over 1 million hours
- -5℃~70℃ operating temperature
- Stainless steel material, anti-corrosion and salt spray resistance

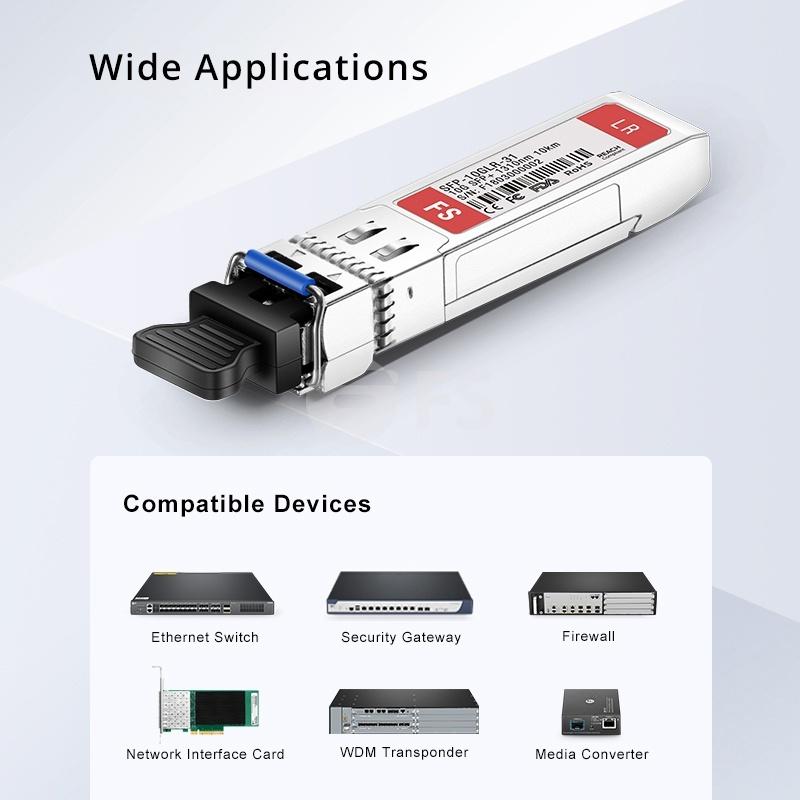

Wide Application
- Fully compatible with major networking equipment vendors worldwide
- Widely used on 10G switches, routers, servers, NICs and other transmission equipment
- Suitable for data center, enterprise wiring closet, radio & baseband unit and other environments
Protocols and Safety Standards
- IEC60825-1 Class 1 laser safety compliant
- Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
- Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, CPRI, eCPRI
High-Performance Features for Cost-Effective and Reliable Transmission
Low power consumption and low latency allow your network devices to work efficiently, and the DDM function supports real-time monitoring for transceiver status.
Comprehensive Performance Test with the Advanced Equipment
Certified and tested on the automatic quality control system, to ensure the high performance in the actual working environment.
Specifications
Specifications SFP-10GLR-31
| FS Genuine | SFP-10GLR-31 |
| Vendor Name | FS |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |

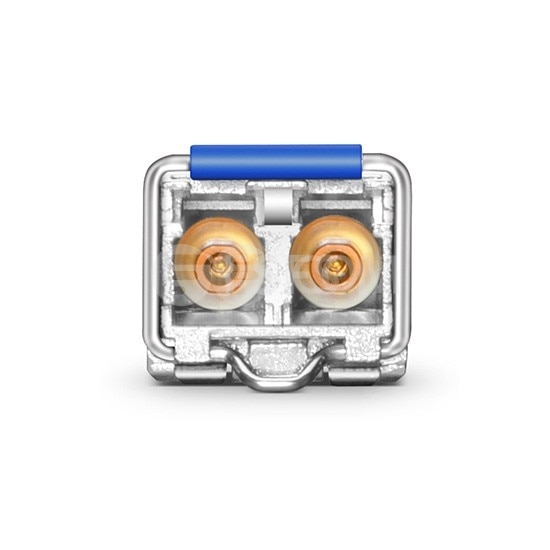

| Connector | LC Duplex |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| Commercial Temperature Range | -5 to 70°C (23 to 158°F) |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Power Consumption | <1W |
| Receiver Overload | 0.5dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Extinction Ratio | >3.5dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
