Finisar Fiber Optic Transmitters, Receivers, Transceivers 1310nmFP GigE 1x FC 1.25Gb/s 10km

  • SKU: FTLF1318P3BTL
  • Manufacturer: Finisar
  • Data Sheet: Download
  • Availability: 9 In Stock    (updated live)
US$‎65.00

Specifications FTLF1318P3BTL

ProductTransceivers
Wavelength1310 nm
Data Rate1.25 GBd
Form Factor, or Case StyleSFP
Operating Supply Voltage3 V to 3.6 V
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
ApplicationEthernet
Connector TypeLC
BrandFinisar
Mounting StyleSnap-In
Product TypeFiber Optic Transmitters, Receivers, Transceivers
Factory Pack Quantity40
SubcategoryFiber Optic
Unit Weight1.301279 oz

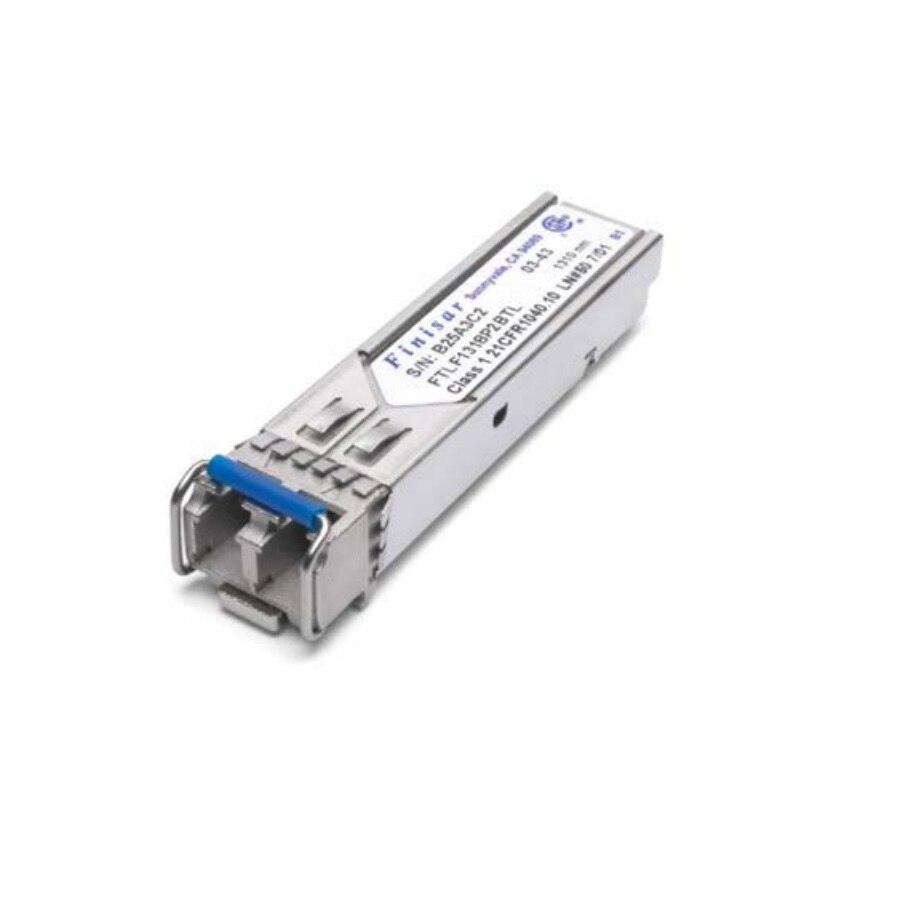

Finisar FTLF1318P3BTL

Fiber Optic Transmitters, Receivers, Transceivers 1310nmFP GigE 1x FC 1.25Gb/s 10km

Finisar’s FTLF1318P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)4. They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.31 and 1x Fibre Channel as defined in FC-PI-4 Rev. 8.003. The optical transceivers are compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


Features:

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 1310nm Fabry-Perot laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • Up to 10 km on 9/125um SMF
  • Metal enclosure for lower EMI
  • Single 3.3V power supply
  • Low power dissipation <600mW typical
  • Industrial operating temperature range: -40°C to 85°C

Applications:

  • 1.25Gb/s 1000Base-LX Ethernet
  • 1.06 Gb/s Fibre Channel
