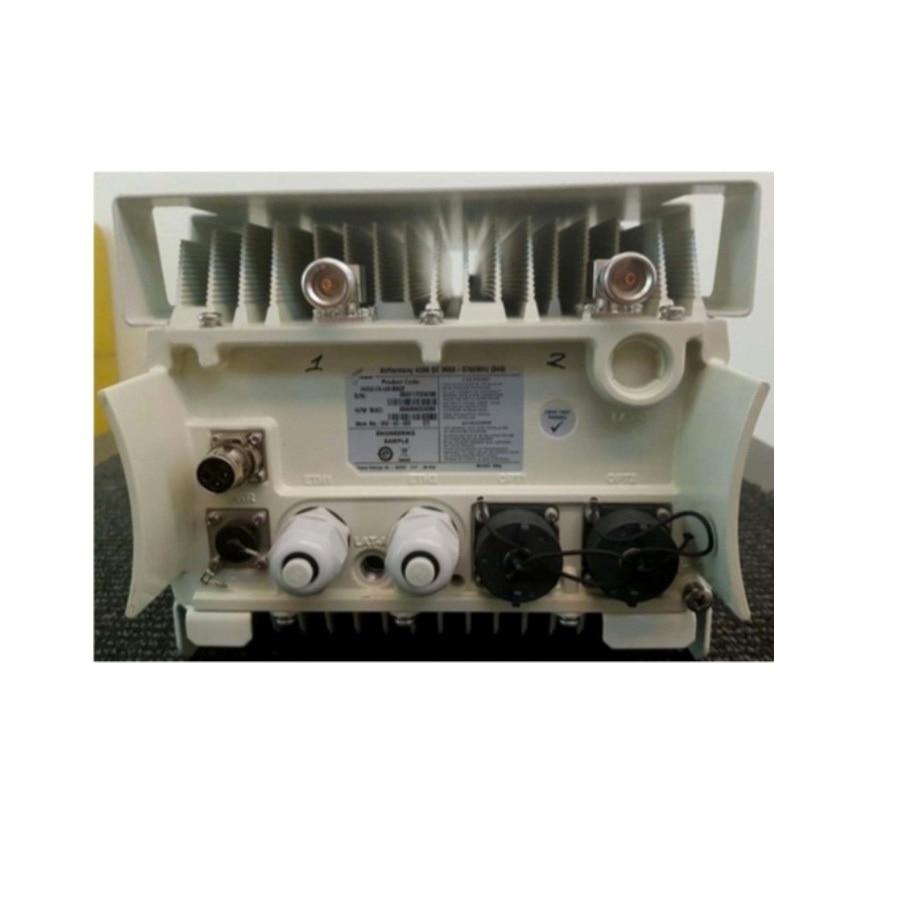

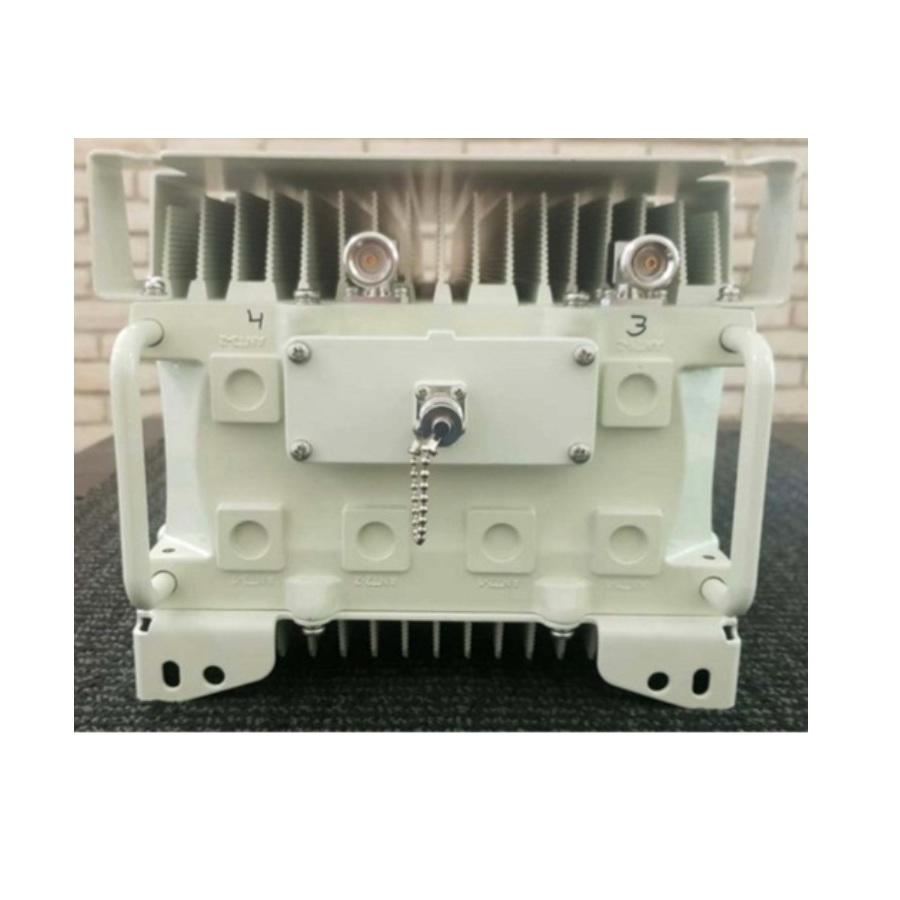

Airspan AirHarmony 4200 3550 - 3700 MHz (B48), Connectorized 2x Fiber + 2x Copper, PoE, DC
- SKU: HAR42-CN-U48-B06DP
Product Information
Airspan HAR42-CN-U48-B06DP
AirHarmony 4200 3550 - 3700 MHz (B48), Connectorized 2x Fiber + 2x Copper, PoE, DC
The AirHarmony 4200 is part of Airspan’s carrier-class, LTE Advanced small cell, eNodeB family. It is a Mini-Macro class product that supports 3GPP’s latest LTE eNodeB specifications, provides high-speed data, mobility, Voice over LTE, and broadcast/multicast services in order to meet the demands of the LTE fixed and Mobile Carriers.
Plug and Play
Experience full functionality, out-of-the-box to fully operational, within 20 minutes.
CAT B CBRS
47 dBm EIRP per 10 MHz, capable for 10MHz or 20MHz; 2 carrier with full band, 150MHz IBW
Flexible Deployments
CAT B EIRP for omni antennas for 2 carriers or single/dual sector for panel antennas.
Multiple Backhaul Options
Backhaul options include multiple fiber/copper interfaces, including PoE output for supporting wireless backhaul.
Released 10-LTE Advanced
Release 10 feature sets include support for SON and eICIC, which enable N=1 frequency reuse.
Network Planning with SON
Self-Organizing Network (SON) features enable complete integration of eNodeB’s including Automatic Neighbor Relations(ANR) and Auto-PCI.
Specifications
Specifications HAR42-CN-U48-B06DP
| Part Number | HAR42-CN-U48-B06DP |
| Operating Band | Band 48 (3.550–3.700 GHz) |
| Duplex | TDD |
| Max Channel Bandwidth | Up to 2x 20 MHz with Carrier Aggregation |
| Max Tx Power | Up to +40 dBm per Tx Channel |
| Port Configuration | 2T2R x 2 4.1–9.5 DIN Female |
| Antenna Configuration | |
| Single Sector | Omni or Panel, X-Polar |
| Dual Sector | Panel, X-Polar (not included) |
| Data Interfaces | 2 x Fiber Optic (via SFP) 2 x Copper with PoE |
| Unit Dimensions | 509 mm (w) x 236 mm (l) x 210 mm (h) 20.0 in (w) x 9.3 in (l) x 8.3 in (h) |
| Unit Weight | 20 kg (44 lbs) |
| Power | 48VDC |
| Power Consumption | 265 W |
| Operating Temperature | -40°C to 55°C -40°F to 130°F |
| IP Rating | IP66 |
| Synchronization | GNSS (GPS) |
| Safety | Conforms to: IEC 60950 UL 60950 EN 60950-1:2006 EN 60950-22:2006 EN 50385:2002 EN 50401:2006 |
