Global Telecom GTC117V CAT6 LTE Indoor CPE -B41

US$‎83.33 US$‎125.00
  • SKU: GTC117V
  • Manufacturer:
  • Data Sheet: Download
  • Availability: 109 In Stock    (updated live)
    109 In stock at College Station
US$‎83.33 US$‎125.00

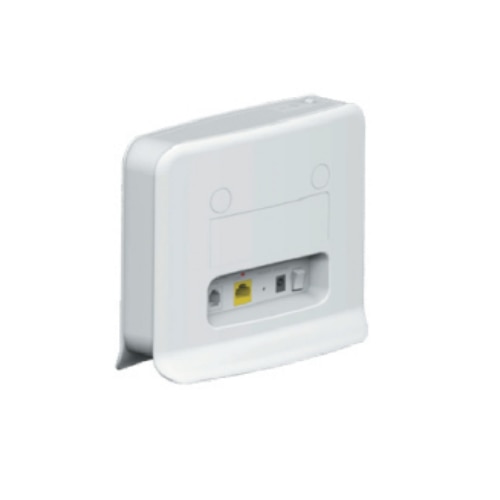

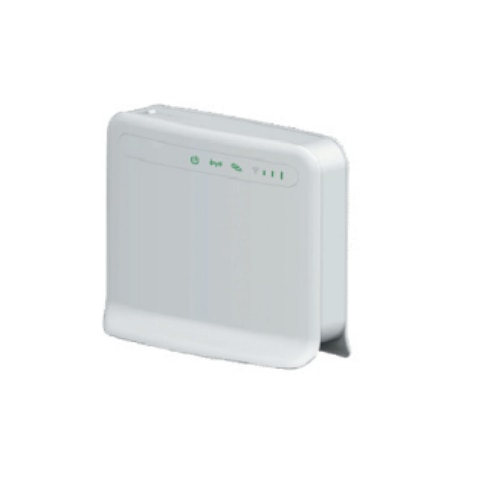

Global Telecom GTC117V

GTC117V CAT6 LTE Indoor CPE Series (B41)

Convenient Wireless Broadband Access:

GTC117V is a cost effective and high performance CAT6 LTE indoor Wi-Fi & SIP VoIP CPE product specially designed to enable quick and easy LTE fixed data service deployment for residential and SOHO customers. It provides high speed LAN, Wi-Fi and VoIP integrated services to end users who need both bandwidth and multi-media data service in residential homes or enterprises.

The device has 1 LAN ports, 1 RJ11 analog phone port, high performance 4x4 MIMO and CA capabilities, 802.11b/g/n/ac dual band Wi-Fi, advanced routing and firewall software for security. It provides an effective all-in-one solution to SOHO or residential customers. It can deliver up to 230 Mbps max data throughput which can be very competitive to wired broadband access service.

Reliable Performance:

GTC117V is an advanced multiport indoor Wi-Fi & VoIP CPE based on the standard implementation of LTE Release 10 specifications. With built-in high gain LTE antenna, it enables a longer reception range from the base station. This yields more efficient use of the network with a larger cell reach, guaranteed carrier class service, and customer service probability. To meet the different operating requirements in various countries and regions, GTC117V can be supplied with optional UPS power adapter to provide continuous usage during power outage.

Easy Usage & Management:

GTC117V is a user-friendly LTE CPE and very easy to configure and setup. Subscribers can just connect the device to their computer or home switch/router and the device is ready to offer an experience of surfing over Internet. The LEDs on the GTC117V have also been designed for user convenience, and offer a clear sign of what the device is doing. The compact design is well suited for enterprise and residential users.

GTC117V offers rich management features which facilitate the task of service provider. It supports local management access, Telnet, WEB, and centralized remote OTA configuration, upgrades management and device monitoring via standard TR069 ACS system

Technical Features:

GTC117V is fully compliant to the LTE specification. It offers standard support for advanced features such as Carrier Aggregation, MIMO and AMC to maximize the system capacity and bandwidth throughput. The use of OFDM modulation enhances performance in non-line-of-sight conditions to ensure immunity to interference and multi-path conflicts typical of deployments in urban areas. Sophisticated QoS capabilities ensure true end-to-end QoS and support for high quality data services.

GTC117V has enhanced router function and VPN clients support to enable greater service selection and reliability.


Features:

  • Cost effective & compact design with built-in high gain LTE and Wi-Fi antenna
  • Compliant to 3GPP LTE R10 specifications
  • Advanced 4x4 MIMO and CA support with Category 7 throughput
  • Dual GE LAN ports, VoIP Line and 802.11b/g/n dual band MIMO Wi-Fi support
  • Router, bridge and by-pass networking, IPv4 &v6 and Multiple PDN support
  • VPN & full L2/L3 GRE Tunneling clients support
  • FTP, HTTP,HTTPS and TR-069 management support

Networking Configuration:

  • Router and L3 Bridge Operation Support
  • Built-in DHCP Server for LAN Devices
  • IPv4, and IPv6 DS-Lite Support for LTE
  • Multiple PDN Interface Support

Data Networking Features:

  • VPN Pass-through support (PPTP, L2TP & IPsec)
  • Built-in L2TP & GRE Tunneling Client Support
  • DNS Proxy Suppor
  • Firewall & Access Control
  • DMZ and Virtual Server Support
  • IP and Port Forwarding Support
  • Local and Remote Management Restriction
  • Application Firewall Support
  • NTP Service Support

Specifications GTC117V

Physical
Dimensions150mm x 120mm x 40mm
Weight< 600g
Power Consumption< 18W
Power Supply12V/1.5A DC Adapter UPS battery backup optional
Environmental
Operating Temperature -15°C--55°C
Storage Temperature-30°C--85°C
Humidity 90% max non-condensing
LTE Radio Interface
Radio Access 3GPP LTE Release 10
Operation ModeTDD, 2T4R, 4x4 MIMO, CA Contiguous & Non-Contiguous
Frequency Band B41
Channel Bandwidth 5/10/15/20/20+20 MHz Modulations DL: QPSK, QAM16, QAM64 UL: QPSK, QAM16, UL QAM64 (optional)
QoS Support Non-GBR and GBR
Output Power 23 ± 1 dBm
Antenna Gain 2-5 dBi (B3, B7, B20, B40, B41) 5-6 dBi (B42, B43, B48)
Wi-Fi Interface
Radio Access 802.11b/g/n
MIMO 2x2, 300Mbps
Output Power 16 ± 1dBm
Antenna 4-5 dBi built-in antenna
Connected Users 32
Security 64/128 bit WEP, WPA/WPA2
VoIP Processing
Compression G.711 G.721 G.723 G.726 G.729 G.722
Comfort Noise Comfort Noise Generation & Control
Echo CancellationG.165/168-2000
Silence Handling Silence Detection/Suppression
Fax Support T.30 and T.38
Delay/Jitter/Loss Jitter and Packet Loss Compensation
DTMF Relay In band DTMF, RFC2833, SIP signal
Call Duration 24+ hours Uninterrupted Call
Voice Services
Basic Voices Local, Domestic & International Calling Flexible Dial Plan Configuration Support
Tone Customization for Different Countries
Industry Standards
ITU 3GPP: E-UTLA Release 10
IEEE IEEE 802.3 10Base Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.11 Wireless LAN (802.11b/g/n/ac)
IETF IP voice: SIP v2.0
OTHERS Safety: FCC or CE
