Grandstream 2x2 802.11 a/b/g/n/ac/ax Wi-Fi 6 Wireless AP
- SKU: GWN7660
- Manufacturer: Grandstream
- Data Sheet: Download
Product Information

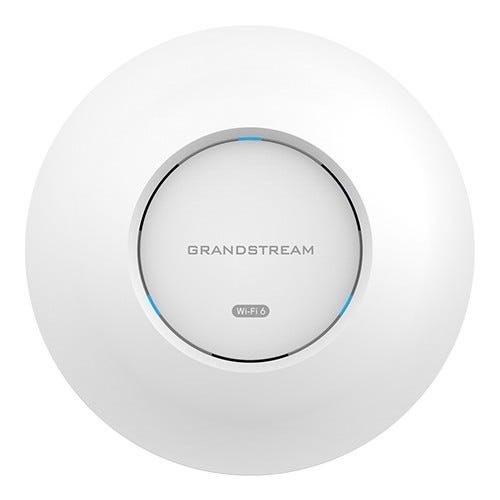

Grandstream GWN7660
2x2 802.11 a/b/g/n/ac/ax Wi-Fi 6 Wireless AP
The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface.
The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features:
- 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
- Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
Specifications
Specifications GWN7660
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 2 dual band internal antennas 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi |
| Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 1201 Mbps; IEEE 802.11ac: 6.5 Mbps to 867 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps; IEEE 802.11n: 6.5Mbps to 300Mbps; IEEE 802.11b: 1, 2, 5.5, 11 Mbps; IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4GHz radio: 2400-2483.5MHz 5GHz radio: 5150-5850MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz 2x2:2 5GHz |
| Coverage Range | Up to 175 meters |
| Maximum TX Power | 5G: 22dBm 2.4G: 24dBm |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11 |
| SSIDs | 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) |
| Concurrent | Clients 256 |

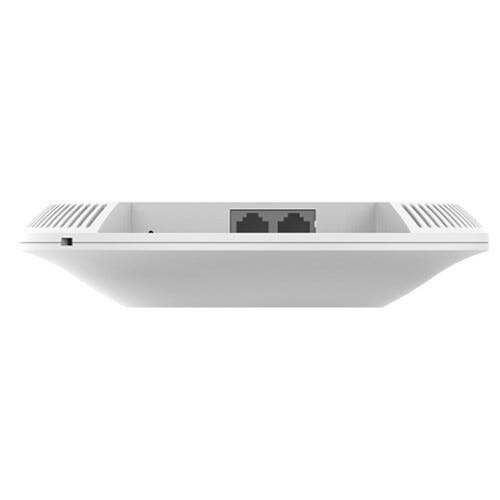

| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

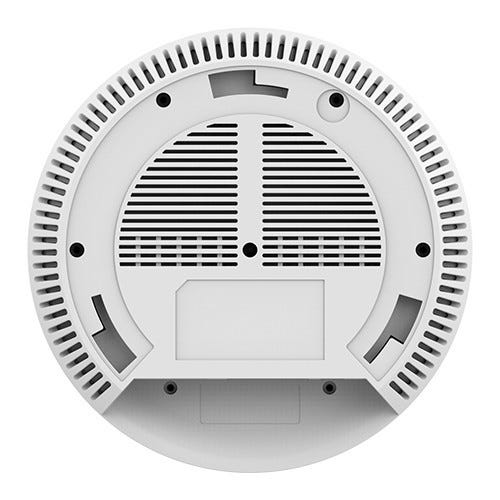

| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; |
| Maximum Power Consumption | 9W |
| Environmental | |
| Operation | 0°C to 45°C |
| Storage | -10°C to 60°C |
| Humidity | 10% to 90% Non-condensing |
| Physical Unit Dimension | 180.4mmx180.4mmx40.8mm; Unit Weight: 443g |
| Entire Package Dimension | 228.5 x 220 x 79 mm; 8.99" x 8.66" x 3.11" Entire Package Weight: 774g (1.70 lb) |
| Compliance | FCC, CE, RCM, IC |
