Grandstream IP Phone, 3 Lines, 3 SIP Accounts and 4-way Voice Conferencing
- SKU: GXP2130
- Manufacturer: Grandstream
- Data Sheet: Download
Product Information

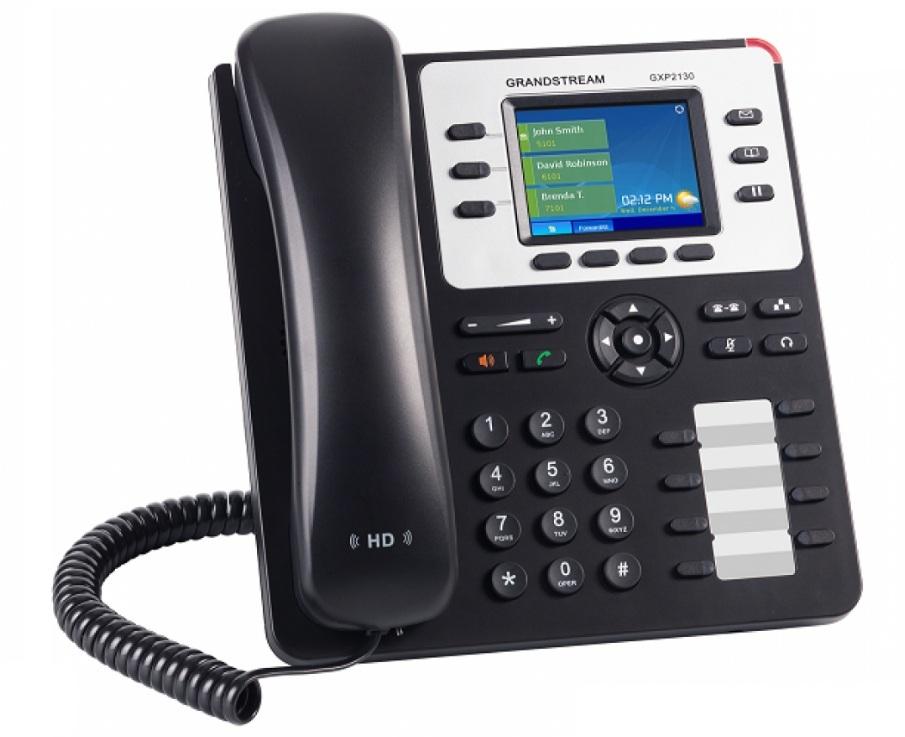

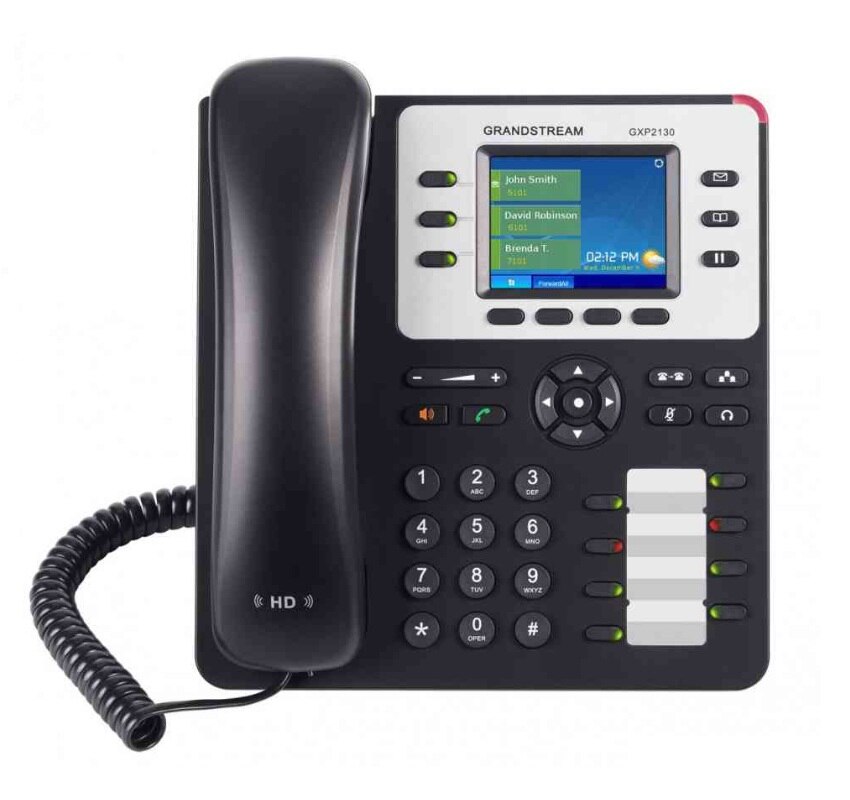

Grandstream GXP2130
IP Phone, 3 Lines, 3 SIP Accounts and 4-way Voice Conferencing
The GXP2130 v2 supports 3 lines, 4 XML programmable soft keys for customization and 4-way voice conferencing to keep business users in-touch. It includes 8 BLF/speed-dial keys to allow users to easily monitor presence and status of other extensions and transfer calls. HD audio and a 2.8" color LCD screen create high quality calls and built-in Bluetooth support allows for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices. This High-End IP phone also features Electronic Hook Switch support for Plantronics headsets. The GXP2130 v2 is perfect for small businesses, SOHOs and enterprises looking for a high quality IP phone with comprehensive features that is easy-to-use.
As all Grandstream IP phones do, the GXP2130 v2 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2130 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Features:
- Supports 3 lines, 3 SIP accounts and 4-way voice conferencing
- 2.8 inch (320x240) color-screen LCD
- Dual Gigabit ports, integrated PoE
- 8 dual-colored BLF/speed-dial keys
- HD audio on speakerphone and handset
- Integrated Bluetooth
- 4 programmable context-sensitive soft keys
Specifications
Specifications GXP2130
| Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Feature Keys | 3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL |
| Voice Codecs | Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-ofband DTMF (in audio, RFC2833, SIP INFO) |
| Sample Applications | Weather, currency, news, XML |
| HD Audio | Yes, both on handset and speakerphone |
| Base Stand/Wall Mountable | Yes, allow 2 angle positions |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
| Multi-languag | English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish |
| Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
| Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W) Integrated PoE (Power-over-Ethernet) 802.3af, Class 2 |
| Physical | Dimension: 193mm (W) x 211mm (L) x 85mm (H) Unit weight: 0.81kg; Package weight: 1.44kg |
| Package Content | GXP2130 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide |
| Compliance | FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1, EN62479 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950 |
