Grandstream IP Phone, 4 lines, 4 SIP accounts and 5-way voice conferencing
- SKU: GXP2140
- Manufacturer: Grandstream
- Data Sheet: Download
Product Information

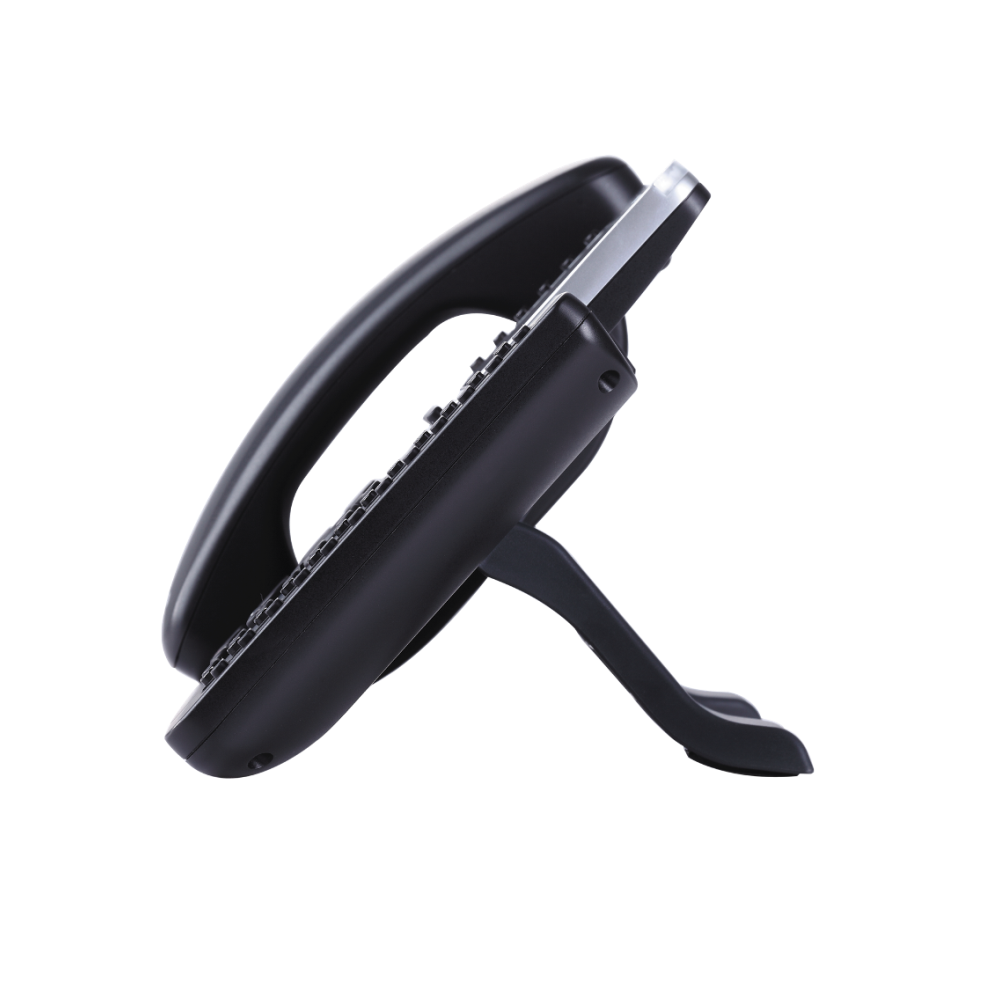

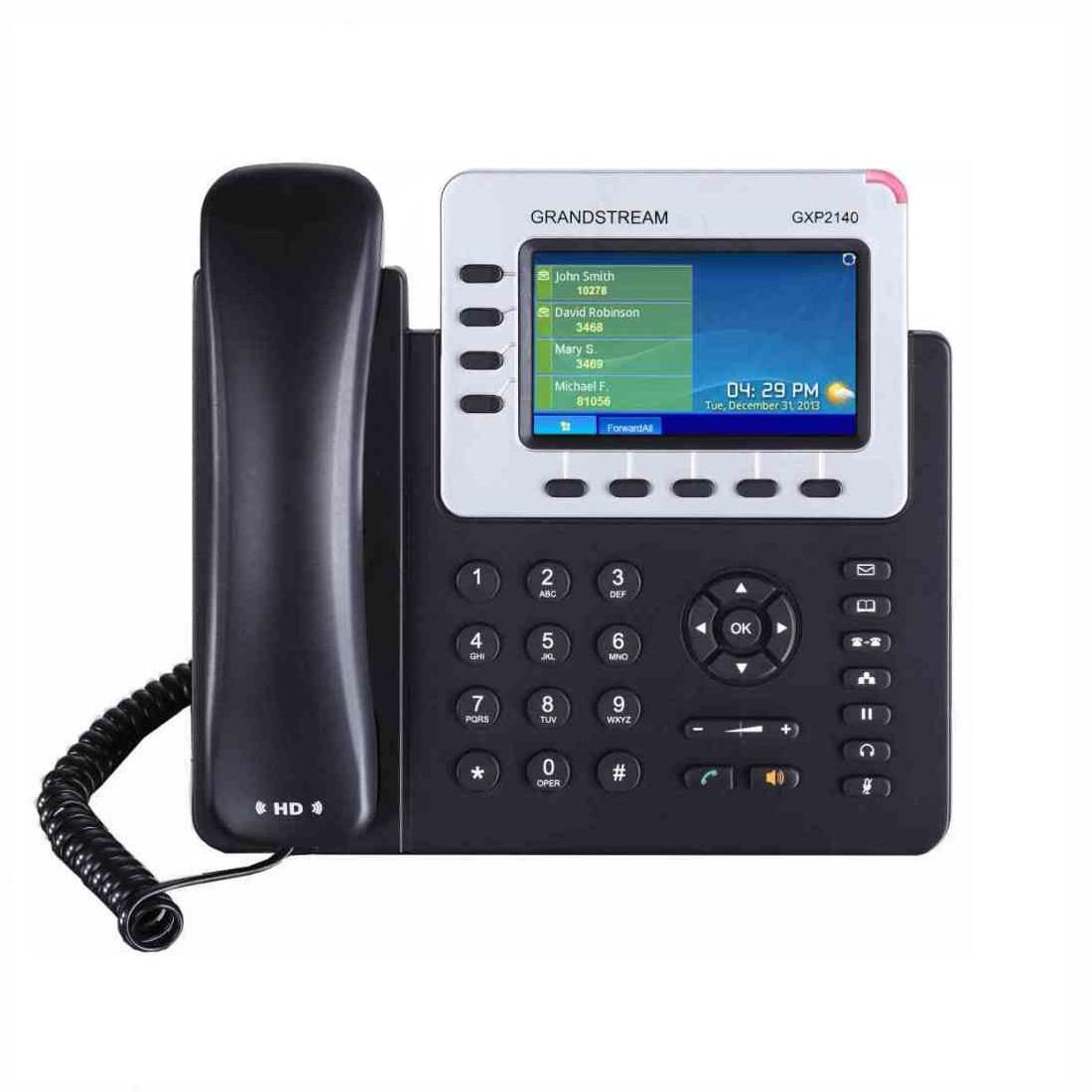

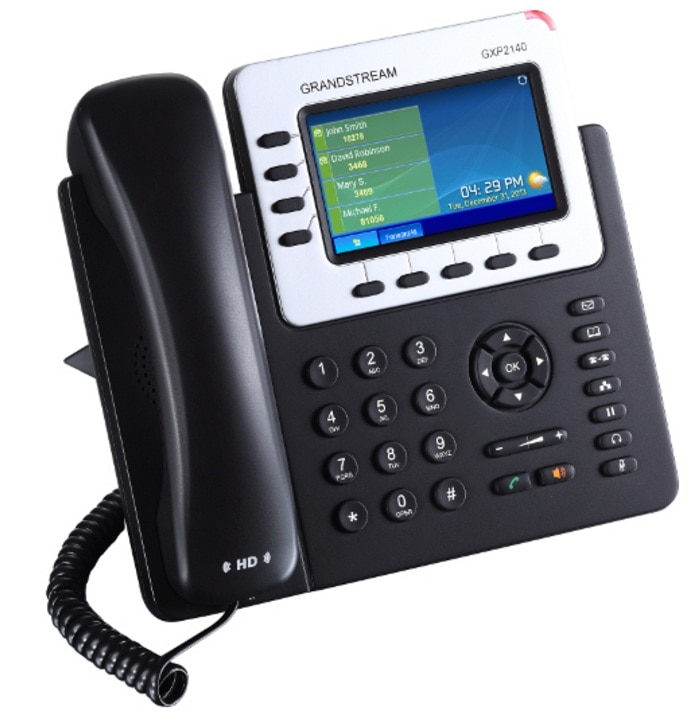

Grandstream GXP2140

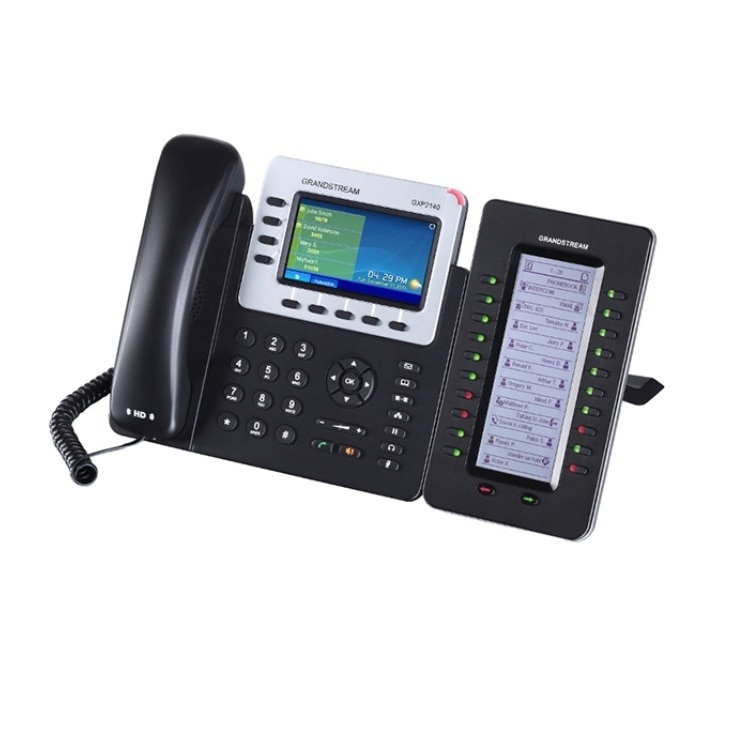

The GXP2140 supports 4 lines, Gigabit ports to guarantee the fastest possible connection speeds, 5 XML programmable soft keys for customization and 5-way voice conferencing to keep business users in-touch. By being compatible with Grandstream’s GXP2200EXT extension module, the GXP2140 can offer users up to 160 speed-dial/BLF keys by combining up to 4 GXP2200EXTs to easily monitor presence and status of other extensions and transfer calls. HD audio and a 4.3" color LCD screen create high quality calls and built-in Bluetooth support allows for use of Bluetooth headsets and transferring of phonebook and calls from paired mobile devices. This High-End IP phone also features Electronic Hook Switch support for Plantronics headsets and a built-in USB port. The GXP2140 is perfect for Enterprise & SMB customers with the need for quality and versatility in their desktop communications.
As all Grandstream IP phones do, the GXP2140 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2140 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Specifications
Specifications GXP2140
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over |
Sample Applications | Weather, currency, news, XML |
HD Audio | Yes, both on handset and speakerphone |
Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit |
Base Stand/Wall Mountable | Yes, allow 2 angle positions |
QoS | Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control |
Multi-language | English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish |
Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), 10W(with 4 cascaded GXP2200EXTs ) |
Physical | Dimention: 228mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package weight: 1.55kg |
Package Content | GXP2140 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide |
