ICT Dual Bus DC Load Distribution Panels, S3

  • SKU: ICT200DB-12
  • Manufacturer: ICT
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
US$‎495.00

ICT ICT200DB-12

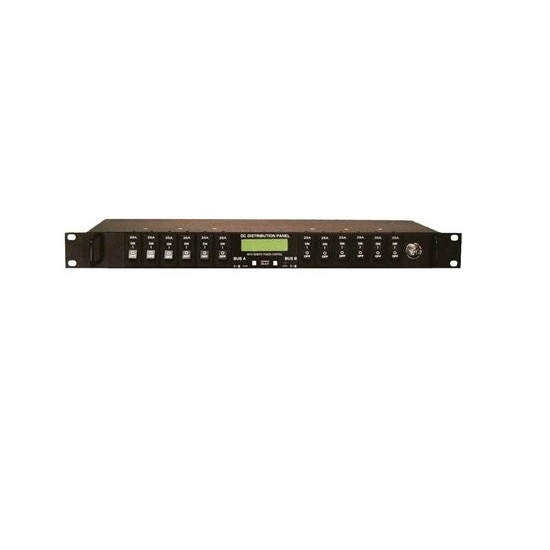

Standard Dual Bus Breaker Distribution Panel for 10-60VDC applications

The ICT DISTRIBUTION SERIES 3 provides independent dual bus capability for redundant systems or mixed-voltage sites. Each bus is rated at 100A peak and provides six fuse or breaker protected outputs. Standard models are available for unmanaged applications, while Intelligent models include ICT's industry leading TCP/IP remote management and power control features.

Performance and Flexibility

All models feature a peak current rating of 200 amps (100 amps per bus) and up to six DC devices can be connected to each bus. The breaker protected models support 12, 24 and 48VDC, and with the use of 80V rated FKS ATO fuses, so do the fuse models. Each bus can be at a different voltage or polarity to support flexible system designs.

Lower Cost of Ownership and Site Maintenance

All models come with a 3-year warranty. Intelligent models are I.P. enabled for remote monitoring and remote shutdown or power cycling of individual outputs, potentially saving unnecessary service call-outs. Intelligent models also come with five digital input contacts for site monitoring sensors such as door, smoke, and water detection. Each input can be custom labelled to provide descriptive email alerts. All Distribution Series 3 models feature independent Form C outputs to monitor and report alarm conditions for each bus.

Remote TCP/IP Monitoring

The Intelligent models are TCP/IP enabled, and utilize a built-in Ethernet connector with integrated web server to allow users to remotely monitor load conditions at the panel. System voltage and current, as well as the current reading of each output, can be monitored. This can provide an indication of a problem with the system power, or with individually connected devices such as a radio, repeater, or RF amplifier. Text or email alerts will be sent when an alarm is triggered. Up to 30 days of data logging is provided.

Remote TCP/IP Power Control

Intelligent models allow the individual DC outputs to be turned on and off remotely using the TCP/IP connection. This allows connected devices to be power-cycled or shut down, potentially averting the need for an on-site service visit. The Network Watchdog feature pings a designated I.P. address and will restart an assigned output automatically, allowing devices such as routers to be power-cycled without risk of losing communications to the site. Load shedding is provided with user definable settings for each output, allowing non-essential loads to be automatically shut down in order to prolong power to critical loads.



Features:

  • 200A peak system current rating / 100A per bus
  • Six outputs per bus
  • Independent Form C alarm contacts for each bus
  • Breaker protected model
  • 80 volt rated FKS ATO style fuses or high-quality, reliable hydraulic/magnetic breakers support 12, 24 and 48VDC
  • Mixed voltages and polarities can be supported in one panel (provided grounds are common)
  • -30 to +60C operating temperature range
  • 2 year warranty

Specifications

Application Voltage (pos or neg gnd)12, 24, 48VDC
System Current Rating (peak/cont)200A/160A
Bus Current Rating (peak/cont)100A/80A
Number of Outputs per bus6
Operating Voltage Range10-60VDC
Number of Breaker Outputs12
Max Breaker Ratings (12,24V)30A (1)(3)
Max Breaker Ratings (48V)30A (1)(3)
Form Factor1RU - 19 Inch rack mount with handles
Dimensions (inches) L x W x H9.29 x 19.0 x 1.72
Weight (lbs/kg)7.0 lbs / 3.2 kg
ConnectorsM8 DC input stud connectors, 10-22AWG cage clamp output terminal blocks
Operating Temperature Range-30 C to +60 C
