ICT Site Inverter 300 Watt Inverter, 12VDC Input, 115VAC Output
Product Information
ICT ICT300-12SNV

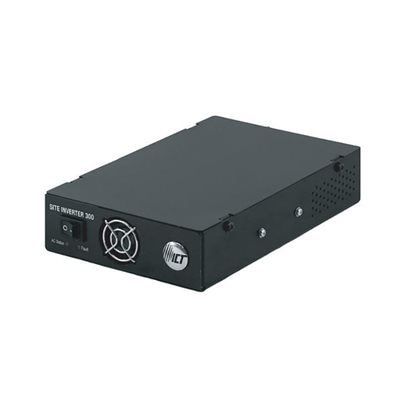

Site Inverter 300 Watt Inverter, 12VDC Input, 115VAC Output
The ICT SITE INVERTER 300 is a 1RU true sine wave inverter that is designed to convert your siteʼs 12, 24, or 48 volt DC power into 300 watts of high quality 115 volt AC power, and be mounted in a 19 inch equipment rack at communications sites. The ICT Site Inverter 300 provides 300 watts, of true sine wave output with extremely low harmonic distortion and low idle current draw. The isolated DC inputs, AC outlets and grounding stud are all located on the back of the inverter, close to where the wiring connections are. With proven ICT quality and reliability designed in, and manufactured in North America by ICT, the Site Inverter 300 provides unsurpassed functionality, scalability, and peace of mind for providing AC power at your DC-powered communications sites.
A Rack-Optimized Solution
AC components at communications sites often require less than 300 watts of AC power. These include routers, switches, PoE hubs, alarms and monitoring equipment, digital video recorders, access control systems, or laptops and test equipment.
Reliability
High reliability is achieved through careful design that virtually eliminates internal wiring and connections that can fail. All components are carefully selected and no substitutes are permitted. Built-in protection features protect the inverter from most abnormal conditions. The brush-less, ball bearing fan pulls in cool air from the front, so no extra clearance is required around the unit. Every inverter is built in North America by ICT and extensively tested before it leaves the factory. The ICT Site Inverter 300 comes with a two-year warranty.
Performance and Flexibility
The ICT Site Inverter 300 provides 300 watts of true sine wave AC power. Designed to FCC Class B spec, with extremely low harmonic distortion and high quality pure sine wave output, this inverter is ideal for communications site equipment. The inverter can handle high starting surges, and will provide its full output power up to 60 degrees C. Optional accessories include a 1RU or 2RU 19” Rack Mount Tray.
Energy Saving Design With one of the highest efficiency designs available at this power level, and lowest idle current draw ratings, you can be assured that most of your power is going into running your loads. The thermally controlled fan only turns on when extra cooling is required.
Specifications
Specifications ICT300-12SNV
AC Output Voltage | 115VAC (+/- 5V) |
AC Output Frequency | 60Hz (+/- 0.05%) |
Total Harmonic Distortion | < 3% THD |
Continuous Output Power (single inverter) | 300 Watts / 2.6 Amps |
Maximum Surge Power (single inverter) | 600 Watts (for 3 seconds) |
Efficiency (full load) | 91% |
No-load power consumption | 4 Watts |
Input Voltage Range | +/- 10.5 - 16.0VDC |
Under Voltage (Inverter will automatically reset when the under voltage condition is cleared). | Automatic Shutdown at 10.5VDC |
Over Voltage (Inverter will automatically reset when the over voltage condition is cleared). | Automatic Shutdown at 16.0VDC |
DC Input | Clamp terminal block |
AC Output | Dual NEMA 5-15R North American Receptacles |
Chassis Grounding | 8-32 Inch Screw With Lock Washer |
Operating Temperature | -20 C to +60 C with no derating |
Weight (lbs/kg) | 2.2 lbs |
Status Indicators | Front Panel LED’s for AC Status and Fault Conditions |
Dimensions L x W x H (inches) | 8.6 x 5.2 x 1.71 |
