IlSintech Splice On Connector, LC Simplex, SM, UPC, 900mc

  • Manufacturer: ILSINTECH
  • Data Sheet: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!

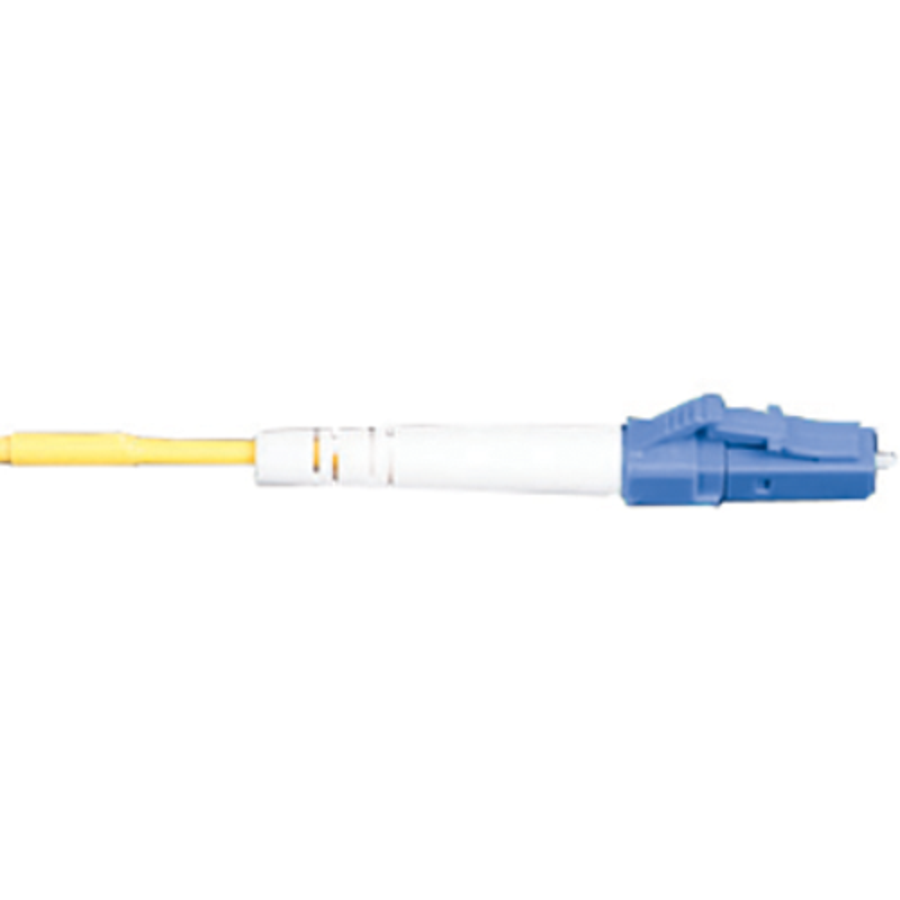

Ilsintech LCS-SM-UPC-09

Splice On Connector, LC Simplex, SM, UPC, 900 micron

PRO's Splice-on Connectors utilize a fiber fusion splicer to terminate fiber optic connectors in the field, addressing return loss concerns present in analog optical networks. Splice-on connectors feature factory pre-polished ferrules that eliminate the need for polishing and adhesives so they can be terminated in the field reducing the potential for operator error. The splice-on connector can be used not only in the field of communication but also in advanced technical fields including avionics, space, military, ship-building and power plants.

Specifications LCS-SM-UPC-09

Connector StyleLC
Polish TypeUPC
FiberSinglemode 9/125
Insertion Loss≤ average 0.2dB (≤ max 0.3dB)
Temperature Range-40°C~85°C
Tensile Strength< 40 for 0.9mm, ≤0.2dB fiber
Repeating Operation Test500 Cycle, ≤ 0.2dB
