Jirous JRMC-400-24/26 Ra 24/26GHz Parabolic Antenna

(0)No Reviews yet
  • SKU: JRMC-400-24/26 Ra
  • Manufacturer: Jirous
  • Data Sheet: Download

Product Information

Jirous JRMC-400-24/26 Ra

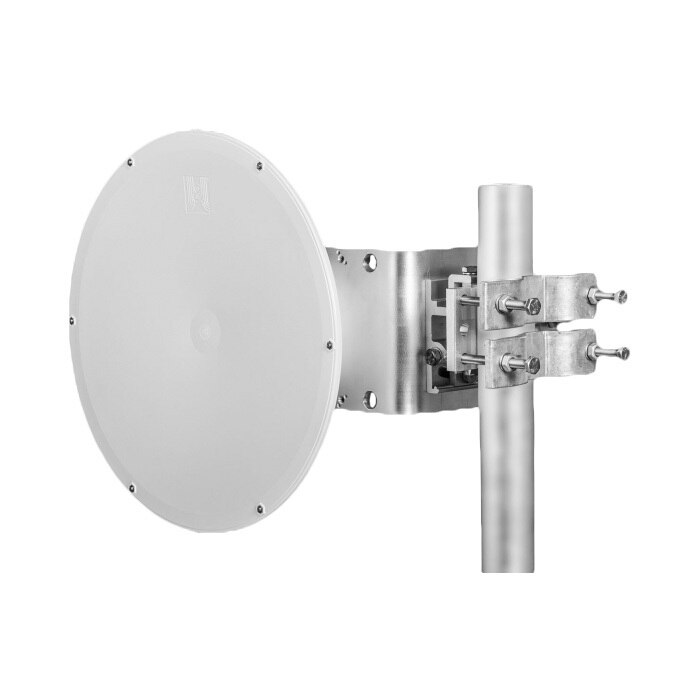

24.0 - 26GHz, 400mm Aluminium Alloy Parabolic Antenna

Antenna JRMC-400-24/26 is designed for microwave links at the frequency band 24 and 26 GHz.  Precise performance with deep reflector dish complies with standard ETSI class 3 and FCC Cat B.

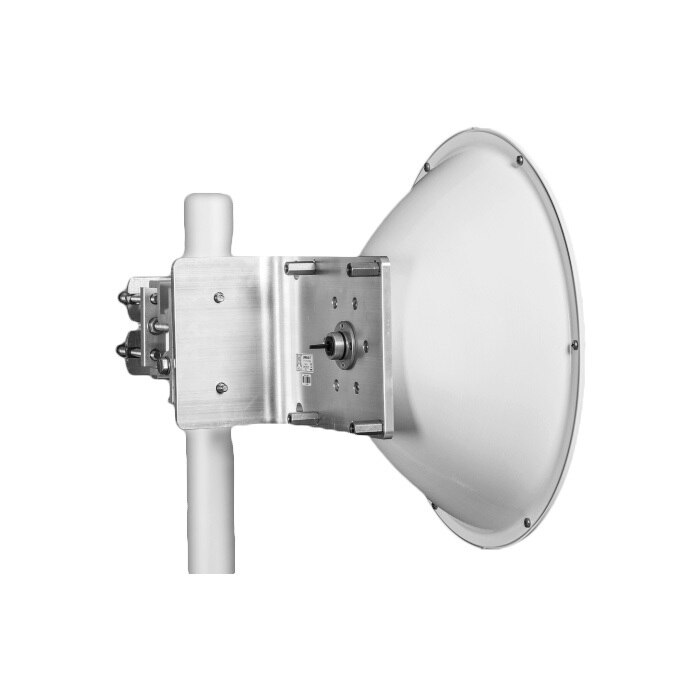

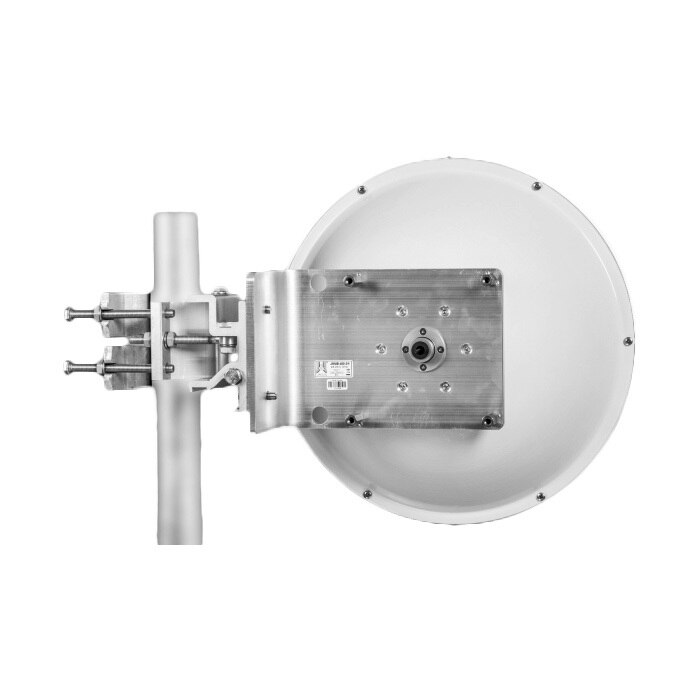

The antenna is supplied with a holder that allows easy mounting on a mast.  The holder can be installed separately on the mast.  Subsequently, you can simply hang up the antenna with microwave unit into it.  The holder allows precise adjustment in both directions.  Ready for right and left side mounting.


Features:

  • Professional microwave antenna
  • Deep parabola with great resistance to interference and high mechanical strength
  • High neighboring links isolation
  • Radom included
  • Massive bracket JDMW-900 with accurate elevation and azimuth setting
  • Right and left side mounting

Designed for MW units:

  • Racom
  • Alcoma
  • Summit
  • Townet
  • Custom modifications possible

Specifications

Specifications JRMB-400-24

Electrical Spec
Frequency range 24.0 – 26.5 GHz
GainLow Band: 37.4 ± 1 dBi
High Band: 38.2 ± 1 dBi
Front to back ratio ≥ 64 dB
Beamwidth -3 dB 2.0° ± 0.5°
Return loss ≥ 18 dB
PolarizationLinear, Vertical / Horizontal
ETSI standardUS FCC Cat. B
Class 3 ETSI EN 302-217-4-2 c1.5.1
Mechanical Spec
Parabola Ø 400 mm, Aluminium alloy
Cover UV steady plastic ABS
Input / output Circle waveguide Ø 8 mm
Installation for mast Ø 40 - 120 mm
Operating wind load 180 km/h
Survival wind load 240 km/h
Weight of antenna of holder 4.9 kg (10.8 lbs.) 3.5 kg (7.7 lbs.)
Shipping dimensions 485 mm x 485 mm x 350 mm
