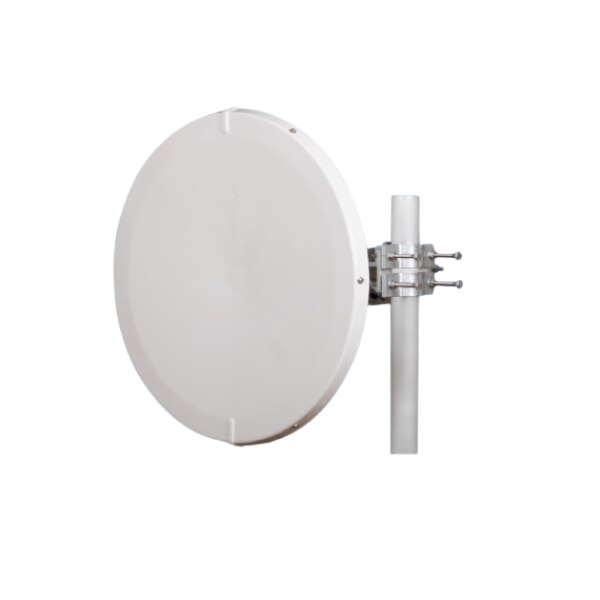

Jirous 17-18GHz 680mm Parabolic Dish Antenna with Precision Holder for Racom Units

(0)No Reviews yet
  • SKU: JRMC-680-17/18 Ra
US$‎579.00
  • Manufacturer: Jirous
  • Data Sheet: Download
8 in stock
College Station
8 In stock

Product Information

Jirous JRMC-680-17/18 Ra

17-18GHz 680mm Parabolic Dish Antenna with Precision Holder for Racom Units

Antenna JRMC – 680 – 17/18 is designed for microwave links at the frequency band 17 and 18 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3 and FCC Cat. A.

Specifications

Specifications JRMC-680-17/18 Ra

Frequency range17.1 – 19.7 GHz
Gain – Low frequency 38.6 ± 1 dBi
Gain – High frequency40.0 ± 1 dBi
Front to back ratio≥ 68 dB
Beamwidth-3 dB1.5° ± 0.5°
Return loss≥ 17 dB
PolarizationLinear, vertical/horizontal
Electrical ComplianceUS FCC Cat. AClass 3 ETSI EN 302-217-4-2 v1.5.1
Mechanical
Parabolaø 68 cm, Aluminium alloy
RadomeUV steady plastic ABS
Input/outputCircle waveguide Ø 11 mm
Installation on mastø 40 - 120 mm
Operating wind load180 km/h (112 mph)
Survival wind load240 km/h (149 mph)
Weight
of antenna
of holder

6.35 kg (14 lbs.)
3.2 kg (7.0 lbs.)
Shipping dimension800 x 800 x 350 mm/ 13.6 kg (30 lbs.)
