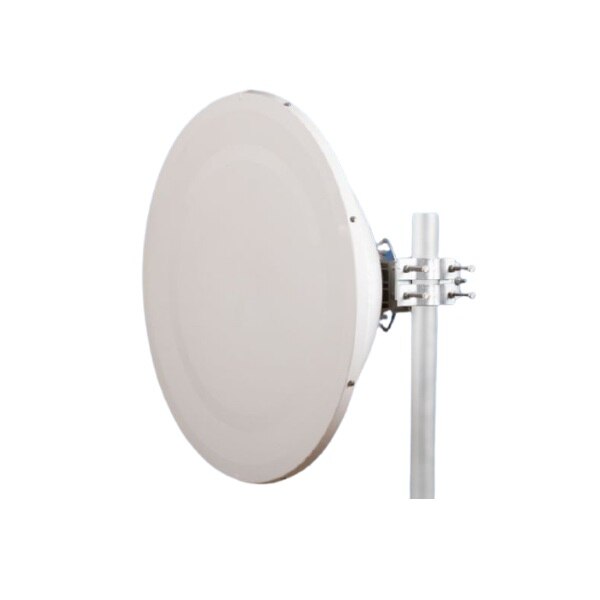

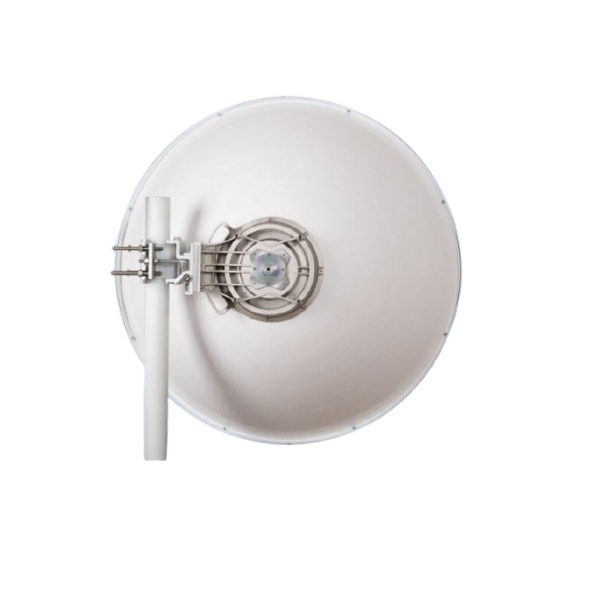

Jirous 17.1-19.7GHz 900mm 42.5dBi Parabolic Dish Antenna

(0)No Reviews yet
  • SKU: JRMC-900-17/18 Ra
US$‎889.00
  • Manufacturer: Jirous
  • Data Sheet: Download
16 in stock
College Station
16 In stock

Product Information

Jirous JRMC-900-17/18 Ra

17.1-19.7GHz 900mm 42.5dBi Parabolic Dish Antenna

AAntenna JRMC – 900 – 17/18 is designed for microwave links at the frequency band 17 and 18 GHz. Precise performance with deep reflector dish complies with standard ETSI Class 3 and FCC cat. A.

Specifications

Specifications JRMC-900-17/18 Ra

Frequency range17.1 – 19.7 GHz
Gain – Low frequency41.4 ± 1 dBi
Gain – High frequency42.5 ± 1 dBi
Front to back ratio≥ 70 dB
Beamwidth-3 dB1.2° ± 0.5°
Return loss (VSWR)≥ 17 dB
PolarizationLinear, vertical/horizontal
Electrical ComplianceUS FCC Cat. A Class 3 ETSI EN 302-217-4-2 v1.5.1
Mechanical
ParabolaØ 900 mm , aluminium alloy
RadomeUV steady plastic ABS
Input / outputCircle waveguide Ø 11 mm
Installation for mastØ 40 – 120 mm
Operating wind load140 km/h (87 mph)
Survival wind load210 km/h (130 mph)
Weight of antenna of holder
10.4 kg (23 lbs.)
3.2 kg (7.1 lbs.)
Shipping dimensions1000 x 990 x 430 mm / 18.9 kg (41.6 lbs.)
