Jirous JRMC-900-24/26 Ra 24/26GHz Parabolic Antenna
US$879.00
- SKU: JRMC-900-24/26 Ra
- Manufacturer: Jirous
- Data Sheet: Download
Product Information

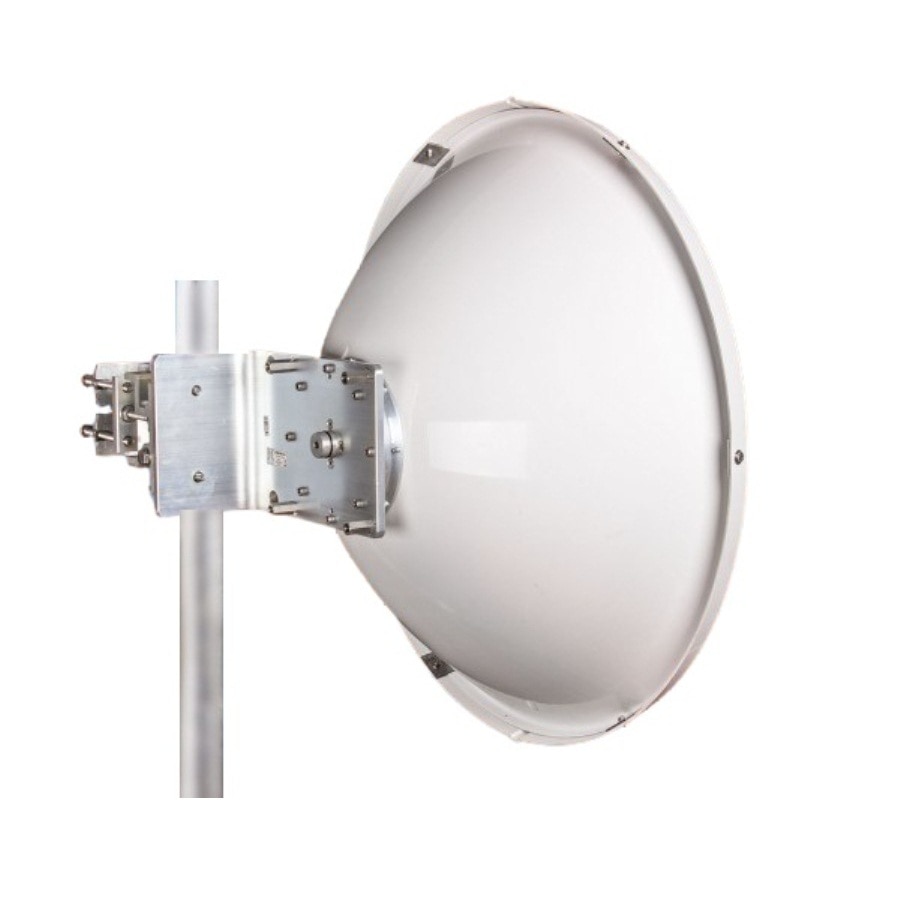

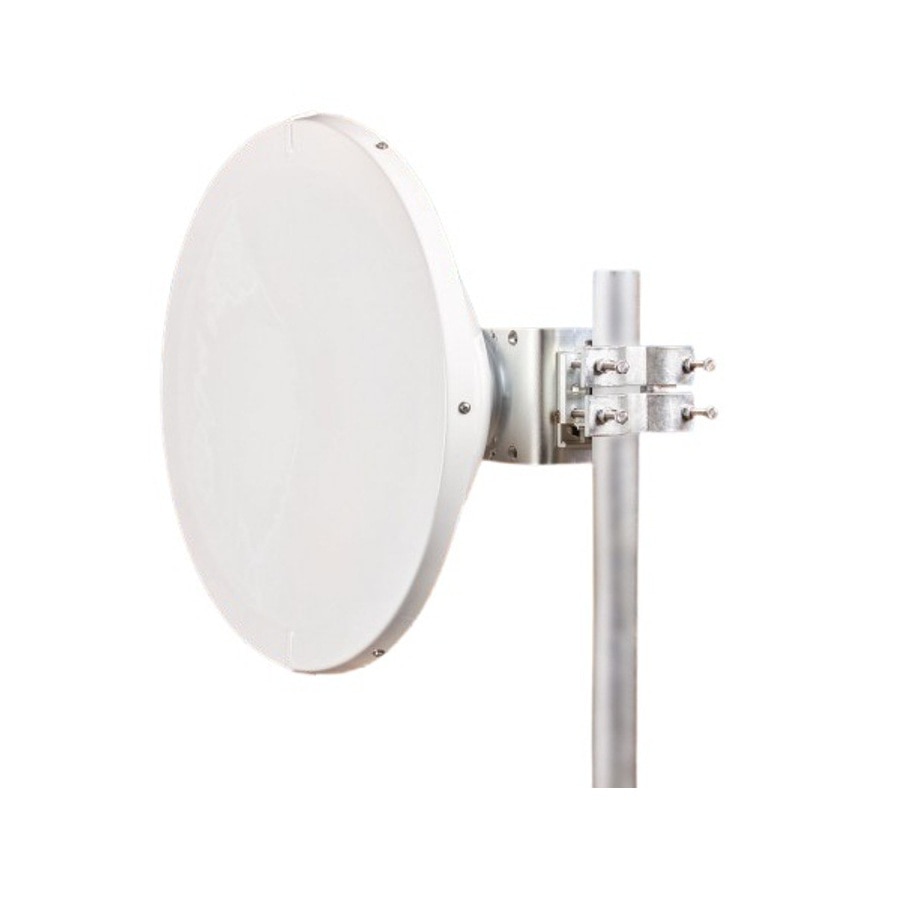

Jirous JRMC-900-24/26 Ra
24.0 - 26GHz, 400mm Aluminium Alloy Parabolic Antenna
Antenna JRMC-900-24/26 is designed for microwave links at the frequency band 24 and 26 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3 and FCC Cat B.

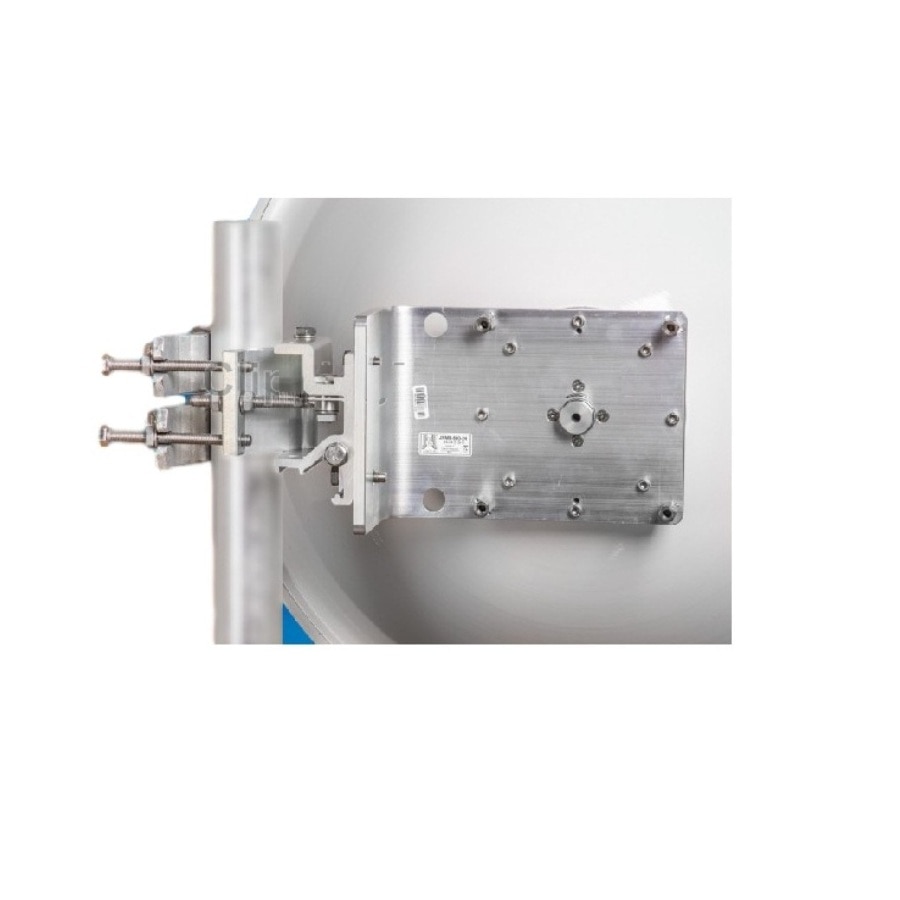

The antenna is supplied with a holder that allows easy mounting on a mast. The holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with microwave unit into it. The holder allows precise adjustment in both directions. Ready for right and left side mounting.
Features:
- Professional microwave antenna
- Deep parabola with great resistance to interference and high mechanical strength
- High neighboring links isolation
- Radom included
- Massive bracket JDMW-900 with accurate elevation and azimuth setting
- Right and left side mounting
Designed for MW units:
- Racom
- Alcoma
- Summit
- Townet
- Custom modifications possible
Specifications
Specifications JRMC-900-24/26 Ra
| Electrical Spec | |
| Frequency range | 24.0 – 26.5 GHz |
| Gain | Low Band: 44 ± 1 dBi High Band: 45 ± 1 dBi |
| Front to back ratio | ≥ 71 dB |
| Beamwidth -3 dB | 0.9° ± 0.5° |
| Return loss | ≥ 18 dB |
| Polarization | Linear, Vertical / Horizontal |
| ETSI standard | US FCC Cat. B Class 3 ETSI EN 302-217-4-2 c1.5.1 |
| Mechanical Spec | |
| Parabola | Ø 900 mm, Aluminium alloy |
| Cover | UV steady plastic ABS |
| Input / output Circle waveguide | Ø 8 mm |
| Installation for mast | Ø 40 - 120 mm |
| Operating wind load | 140 km/h |
| Survival wind load | 210 km/h |
| Weight of antenna of holder | 9.8 kg (21.7.) 3.5 kg (7.7 lbs.) |
| Shipping dimensions | 1000 mm x 1000 mm x 430 mm |
