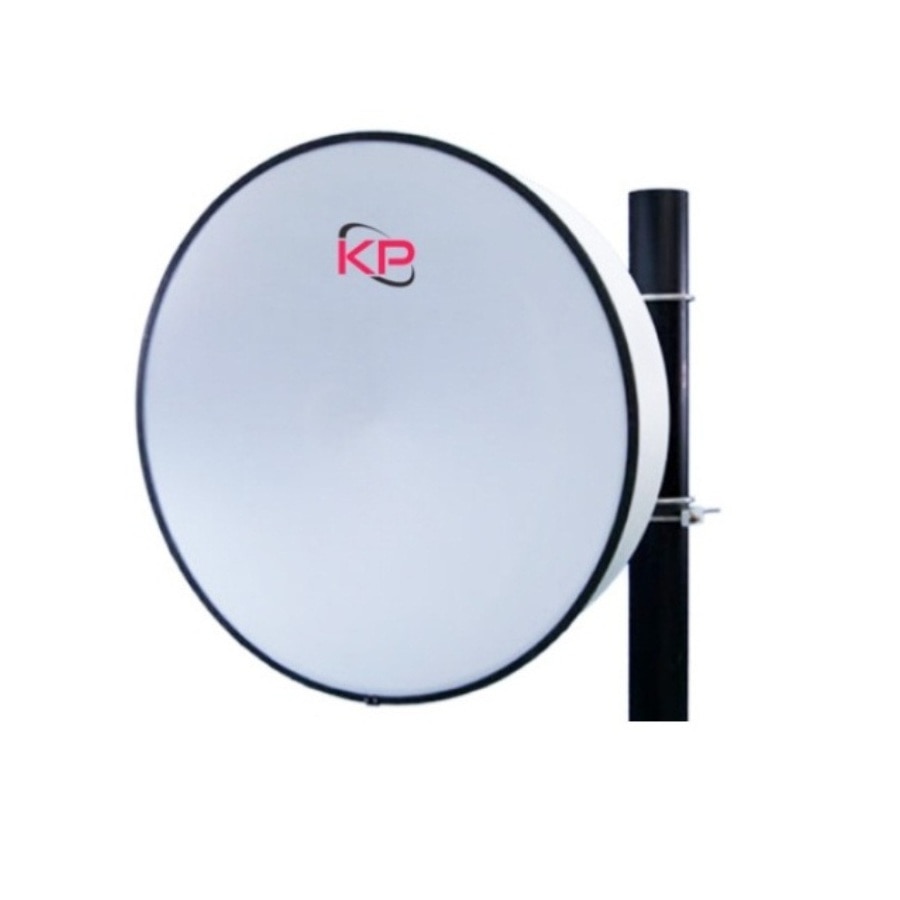

KP Performance 3’ B11 Antenna with direct waveguide mount
- SKU: KP-11PDMM-3
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-11PDMM-3
0.6M | 3ft High Performance Parabolic Antenna, Dual Polarized, 10.7-11.7GHz
Features:
- High Performance ETSI Class 3 | FCC Cat. A Parabolic Antennas – Excellent performance for a wide range of point-to-point applications
- Fully Preassembled at the Factory – Simplifies installation onsite and guarantees “factory tested” quality
- Heavy-duty hardware survives 250km/h
Specifications
Specifications KP-11PDMM-3
| Electrical | |
| Frequency Band | MHz 10.7-11.7 |
| Gain (Low | Mid | High) | dBi 38.1 | 38.5 | 39.0 |
| Polarization | Dual |
| Horizontal HPBW | Degree 2.1 |
| Vertical HPBW | Degree 2.1 |
| Front-to-Back Ratio @ 180°±30° | dB 62 |
| Cross-polarization Ratio over HPBW | dB 30 |
| VSWR | 1.5 typ | 1.8 max |
| Return Loss | dB 14 typ | 11 max |
| Port-to-Port Isolation | dB 30 typ | 24 max |
| Max. Input Power per Port | W 100 |
| Impedance | Ohms 50 |
| Mechanical | |
| Diameter, nominal | 3ft | 0.9m |
| Antenna Color | White |
| Antenna Input | WR90 waveguide |
| Radome Material | UV resistant ABS |
| Temperature Range | -40° to +60° C |
| Wind Speed Operational | 145 km/h | 90 mph |
| Fine Azimuth Adjustment | + / - 10 degrees |
| Wind Speed Survival | 250 km/h | 155 mph |
| Fine Elevation Adjustment | + / - 10 degrees |
| Wind Load, Axial (FA) | 1792 N | 403 lbs |
| Mounting Pipe Diameter | 2 – 4.5 in | 5.1 – 11.4 cm |
| Wind Load, Side (FS) | 890 N | 200 lbs |
| Net Weight | 112 lbs |
| Twisting Moment (MT) | 344 ft-lbs | 466 Nm |
| Regulatory Compliance | |
| FCC P | Part 101 Cat. A |
| Industry Canada Compliance | SRSP310.7 B |
| ETSI | 302217 R1 C3 |
| RoHS-compliant | Yes |
