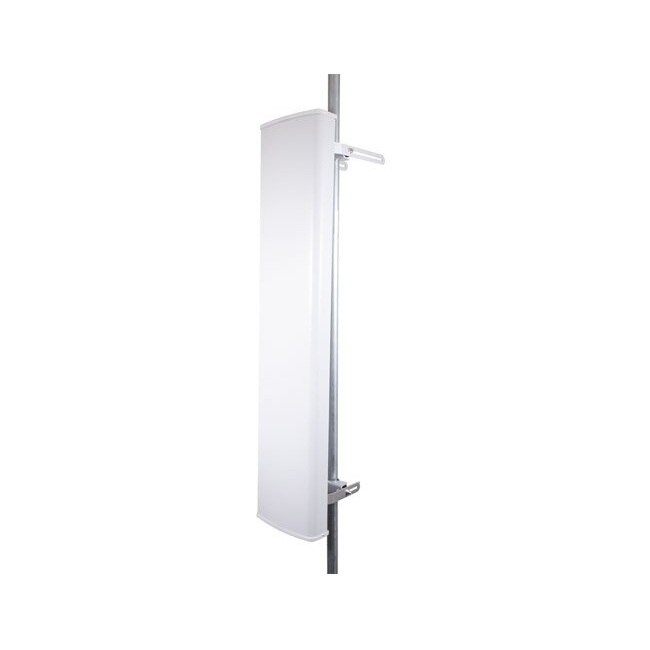

KP Performance 3.3 GHz to 4.2 GHz, 65 Degree Sector Antenna, 8-port, 18 dBi Gain, +/-45 Slant

(0)No Reviews yet
US$‎750.50 US$‎790.00
  • SKU: KP-3SX8-65
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

KP Performance KP-3SX8-65

3.3 GHz to 4.2 GHz, 65 Degree Sector Antenna, 8-port, 18 dBi Gain, +/-45 Slant

KP Performance's KP-3SX8-65 3.5 GHz 8-port Sector Antenna with Type N connectors provides industry leading gain, side lobes suppression, and high front to back ratio. The KP-3SX8-65 has gain performance of 16 to 18 dBi gain with 65° beamwidth and is perfectly suited for macro base station or small cell deployments. Available in dual +/-45 slant polarization, this antenna works from 3.3 GHz – 4.2 GHz.

The KP-3SX8-65 from KP Performance patterns are engineered to be symmetric in both polarizations, which will minimize chain imbalance. The 8 Type N connectors make 2x2, 4x4, and 8x8 MIMO configurations possible for high speeds or multiple technology deployments. The sector antenna’s 17 dB side lobe suppression and 30 dB front to back ratio allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments.

The KP-3SX8-65 sector antenna with 8 x N-type female connector has Universal radio brackets that are compatible with many popular Cambium PMP/EPMP, Ubiquiti Rocket/Prism, Mimosa, and Baicell radios. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your multiport macro base station antenna needs. Like our other products, the KP-3SX8-65 is in stock and ready to ship the same day.


Features:

  • 17 to 18 dBi gain
  • Superior port isolation, cross polarization discrimination, gain, VSWR, and front-to-back
  • 3300 to 4200 MHz for world-wide markets
  • 30 dB Front to Back Ratio
  • Eight (8) N Female Connectors
  • Heavy-duty aluminum brackets with powder coated steel hardware
  • Integrated hoisting hook for added safety and convenient installation
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios

Applications:

  • 3.5 GHz Citizens Broadband Radio Service (CBRS) applications
  • Extended CBRS for 4.2 GHz (EMEA and UK) use
  • Wireless LAN systems & IEEE 802.16e applications
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • SOFDMA
  • Outdoor or indoor point-to-point (PtP) or point-to-multipoint (PtMP) in CBRS band
  • For use in LTE and 5G bands n42, n43, n48, n49, n52, n77 and n78
  • 4x4 and 8x8 MIMO ready

Specifications

Specifications KP-3SX8-65

Weight15 lbs.
Size3.15" L x 11.02" W x 51.18" H
Mounting Mast Diameter1.18 to 2.36 in
Frequency Range3.3 GHz to 4.2 GHz
Polarization Type45 Deg. Slant
Gain18 dBi
Vertical Beamwidth
Horizontal Beamwidth65°
Electrical Downtilt3.5°
F/B Ratio30 dB
VSWR2:01
Impedance50 dB
Input Power100 W
Connector TypeN-type Female
