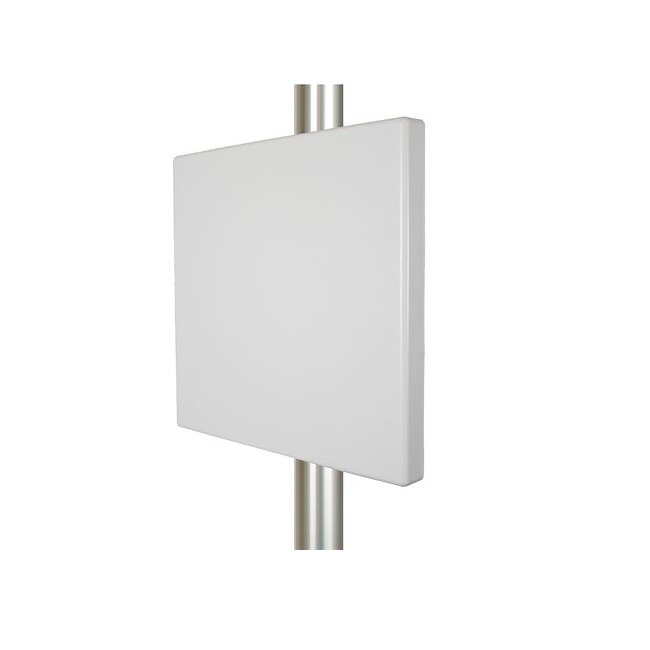

KP Performance 5150 MHz to 5850 MHz V/H Dual Polarization Flat Panel, 18 dBi gain, Ruggedized, 2 X N Female Connectors
- SKU: KP-5DPFP18
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-5DPFP18
4400 MHz to 5000 MHz V/H Dual Polarization 90 degree Sector, 14 dBi gain, Ruggedized, 2 X N Female Connectors
The KP-5DPFP18 from KP Performance Antennas is a high performance flat panel antenna engineered for superior performance antenna specifically designed for rugged environments with a low profile aesthetically pleasing design. The KP-5DPFP18 operates from 5150 to 5850 MHz which is ideal for Point to Point applications where form factor is a concern. The KP Performance Antennas KP-5DPFP18 antenna has 18 dBi gain with 17° Horizontal Beamwidth and 17° Vertical Beamwidth polarization.
The 2 x Type N Female connectorized KP-5DPFP18 antenna from KP Performance Antennas excels in large open areas such as indoor courtyards, indoor sporting venues, convention centers and shopping malls. The mounting bracket and hardware are included for easy installation. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for high performance flat panel antenna engineered for superior performance 5 GHz antennas.
Features:
- Dual Polarity feed system in single enclosure
- Includes tilt and swivel mast mounting
- Two integral N - Female connectors
- UV - resistant radome for all weather operation
- MIMO - Multiple - Input and Multiple - Output
Specifications
Specifications KP-5DPFP18
| Frequency Range | 5150 MHz to 5850 MHz |
| Polarization Type | Dual H/V |
| Gain | 18 dBi |
| Vertical Beamwidth | 17° |
| Horizontal Beamwidth | 17° |
| Electrical Downtilt | 0° |
| F/B Ratio | 30 dB |
| VSWR | 2:1 |
| Port to Port Isolation | 28 dB |
| Impedance | 50 |
| Connector Type | 2x N-Type Female |
| Weight | 2.42 lbs |
| Dimension | 9.8" L x 1.6" W x 9.8" H |
| Mounting Mast Diameter | 1.57 to 1.97 inch |
