  • KP Performance 1ft 4.9-6.4GHz Parabolic Antenna w/ Mimosa® C5c™ Radio Adapter

KP Performance 1ft 4.9-6.4GHz Parabolic Antenna w/ Mimosa® C5c™ Radio Adapter

(0)No Reviews yet
US$‎134.89 US$‎141.99
  • SKU: KP-5PDC5C-1
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Spec Sheet:Download

Out of Stock

Will not ship till mid May

Product Information

KP Performance KP-5PDC5C-1

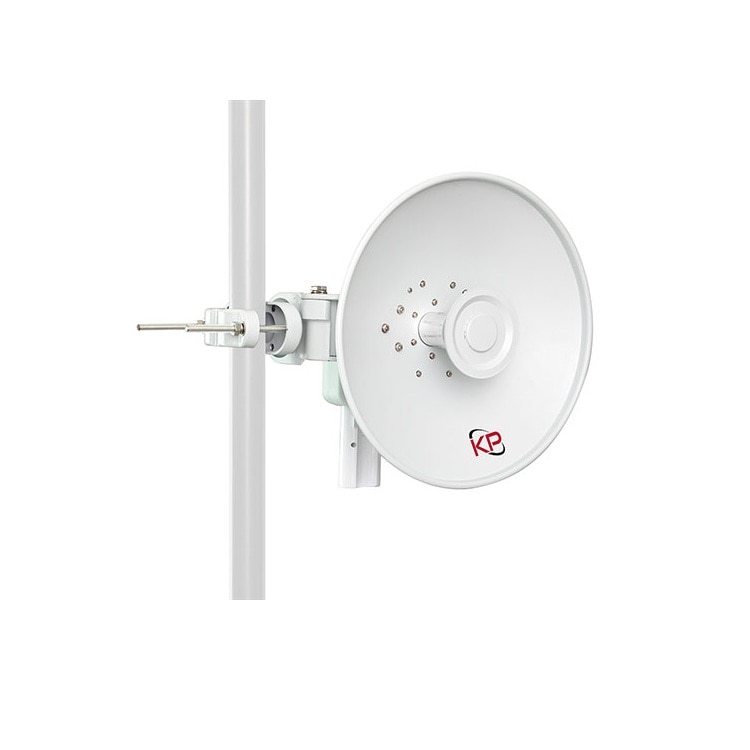

1-Foot Parabolic Antenna 4.9 GHz–6.4 GHz with Mimosa® C5cTM Radio Adapter

This ProLine Parabolic Antenna is engineered to suppress side-lobes and back-lobes and are excellent at rejecting interference. These parabolic antennas maximize the potential of your radio by improving signal strength and reducing the noise floor in your link. Our parabolic antennas are perfectly suited for high density point-to-point client-premises or backhaul applications.

The KP-5PDC5C-1 is a 1-foot, 24 dBi parabolic antenna operating from 4.9 GHz to 6.4 GHz. This antenna includes a specially designed quick-connect, weatherproof radio adapter specifically for the Mimosa® C5c™. The radio unit simply slots/snaps into place inside adapter housing. A fast-release button makes removing the radio simple and fast. This parabolic antenna also features H/V or ±45° slant polarization options and boasts excellent front-to-back of 35 dB.


  • Stable gain over ultra-wide bandwidth of 4.9 GHz - 6.4 GHz
  • Optimized F/B & side-lobe suppression minimizes interference
  • Included Mimosa® C5c™ push-in adapter is fully weatherproofed
  • Patent Pending Quick-Connect Waveguide technology
  • Installs in minutes to reduce service calls and installation time
  • Quick connect waveguide allows rapid change of polarization
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment
  • Mounts to any size mast from 0.75" to 4.5"


Specifications KP-5PDC5C-1

Diameter 15" (1-Foot)
Frequency Band 4900-6400 MHz
Gain 24 dBi
Polarization H/V or ±45 Slant
Horizontal HPBW
Vertical HPBW
Front-to-Back Ratio @ 180°±30° 35 dB
Cross-polarization Ratio over HPBW 25 dB
VSWR 1.5
Return Loss 14 dB
Port-to-Port Isolation 30 dB
Impedance 50 Ohms
Antenna Input Mimosa C5c Adapter
Color Grey
Wind Velocity, Operational 145 km/h (90 mph)
Dimension 17 in L x 16.5 in W x 9 in H
Weight 17 lbs
