KP Performance 5.15 GHz to 5.85 GHz 13dBi 4 Port Omni Antenna

(0)No Reviews yet
US$‎418.94 US$‎440.99
  • SKU: KP-5QOMNI-13
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

3 in stock
Lewisville TX
3 In stock

Product Information

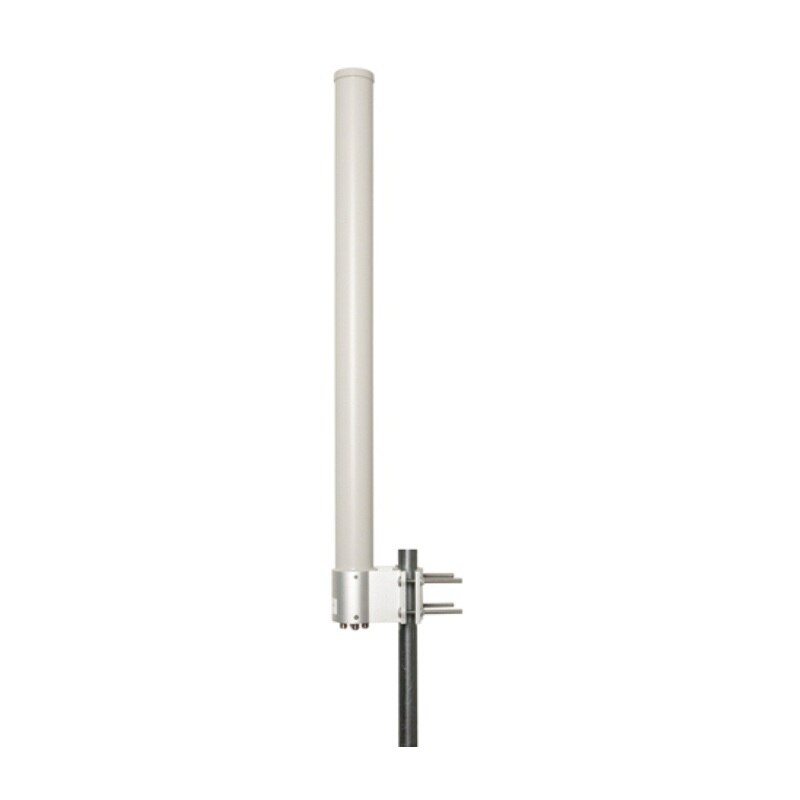

KP Performance KP-5QOMNI-13

5.15 GHz to 5.85 GHz 13dBi 4 Port Omni Antenna (Cables not included.)

The KP Performance KP-5QOMNI-13 4-port omni antenna operates in the 5150-5950 MHz frequency band. This 360° omnidirectional antenna features two vertically stacked omni arrays in a single radome enclosure with one mounting point and supports one 4x4 MIMO or two 2x2 MIMO radios. Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.

If you only require a radius of 5 to 6 miles, but want the increased traffic capacity provided by 4x4 MIMO, the KP-5QOMNI-13 omni antenna may be the solution you are looking for. This omnidirectional antenna utilizes dual polarized H/V and works well with Mimosa, Cambium and UBNT radios. This omni antenna is equipped with a versatile pipe-to-pipe style mount. These dual pol H/V omnis will provide you a very consistent pattern with no null zones.


Features:

  • Two vertically stacked dual polarization omni arrays in a single radome enclosure with one mounting point
  • Functional easy-to-install mounting bracket
  • Stainless steel hardware
  • UV resistant PVC

Specifications

Specifications KP-5QOMNI-13

Frequency Band5150-5950 MHz
Polarization TypeHorizontal / Vertical
Gain13 dBi
Vertical Beamwidth
Horizontal Beamwidth360°
Electrical Downtilt
VSWR1.5 Typical | 2 max
Cross Polar Ratio20 dB
Port Isolation25 dB
Connector Type4 x Type N Female
Return Loss 14 Typical | 10 max
Max. Input Power per Port 100 W
Impedance 50 Ohms
Mechanical
RF Connector Quantity 4
RF Connector Position Bottom of radome
Electrical Grounding RF connector grounded to reflector and mounting bracket
Radome Material UV resistant PVC
Ingress Protection IP55 rain and dust resistant
Operating Temperature -40° to +65° C
Max. Wind Speed 210km/h | 130mph
Bracket
Material Type Power Coated Galvanized Steel
Mounting Type Pipe Mount
Mounting pole diameter 40 mm – 60 mm | 1.6 in – 2.4 in
OMNI Dimensions
Dimension 46.9 in L x 7.3 in W x 6.5 in H
Weight 7.9 lbs
