KP Performance 824–960 MHz, 8dBi, Vertical Pol OMNI Antenna, 1 Port

US$‎190.92 US$‎200.97
  • SKU: KP-900-SPOMA-8
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: 295 In Stock    (updated live)
    295 In stock at Lewisville TX
US$‎190.92 US$‎200.97

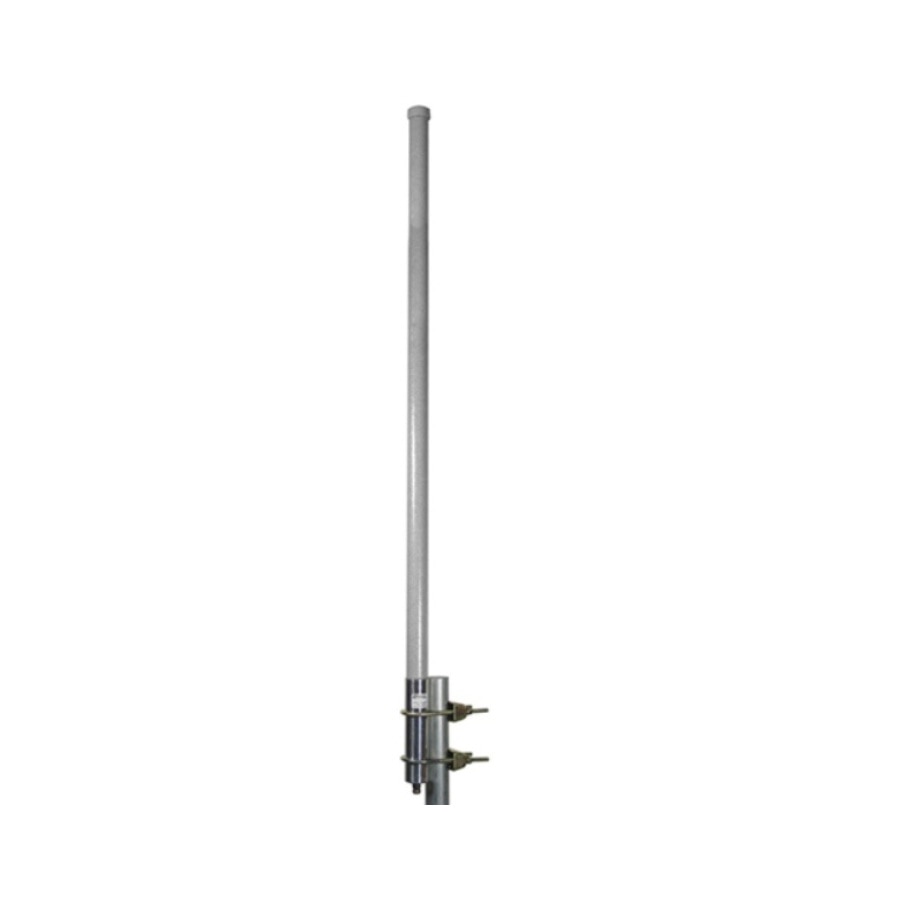

KP Performance KP-900-SPOMA-8

824–960 MHz, 8dBi, Vertical Pol OMNI Antenna, 1 Port

The KP-900-SPOMA-8 is a high performance omnidirectional antenna designed for the 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links, LPWAN/IoT/M2M, and 900MHz Cellular band applications.

This antenna features an integral N-Female type connector that mounts through the wall of an equipment enclosure. Included with the KP-900-SPOMA-8 is a dual u-bolt mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0" in diameter.

This omni antenna’s construction features a rugged 1.58" diameter fiberglass radome for durability, aesthetics and long service life. It is designed for all weather operation.


Features:

  • Heavy-duty steel mounting bracket
  • Rugged industrial grade design
  • Integral N-Female connector
  • Lightweight fiberglass radome
  • Superior all weather performance

Application:

  • 900 MHz cellular band
  • 900 MHz ISM band
  • LPWAN, LoRA, IoT, M2M applications
  • GSM, SCADA applications
  • Point to multi-point and Non Line Of Sight (NLOS) applications

Specifications KP-900-SPOMA-8

Frequency Range824-960 MHz
Polarization TypeVertical
Gain8 dBi
Vertical Beamwidth15°
Horizontal Beamwidth360°
Electrical Downtilt
VSWR1.7 Typ
Connector TypeType N Female
Diameter 38 mm | 1.5 in
Dimension 44 in L x 3 in W x 3 in H
Weight 4.7 lbs
