  • KP Performance 880 MHz to 960 MHz Yagi Antenna, 7 dBi, 36in LMR400 pigtail coax with Type N Female Connector

KP Performance 880 MHz to 960 MHz Yagi Antenna, 7 dBi, 36in LMR400 pigtail coax with Type N Female Connector

(0)No Reviews yet
  • SKU: KP-960SPY7
$116.81 $129.79
+ $24.98 Tariff
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

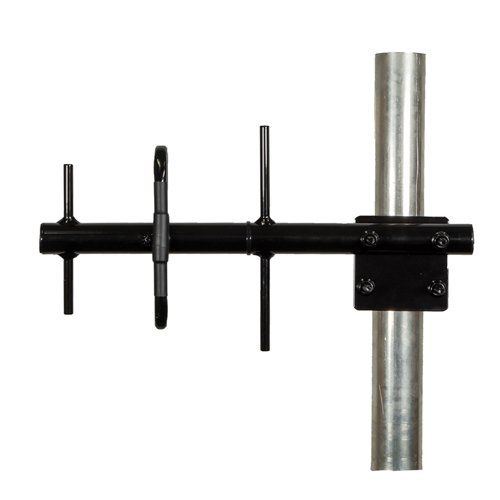

KP Performance KP-960SPY7

880 MHz to 960 MHz Yagi Antenna, 7 dBi, 36in LMR400 pigtail coax with Type N Female Connector, Adjustable Polarization Pro-Series

The KP Performance KP-960SPY7 880 MHz to 960 MHz Yagi Antenna is designed for the most rugged conditions and ships the same day. Equipped with an N-Female connector, coaxial connections to a radio are simple and easy. This 900 MHz antenna provides 7 dBi of gain and adjustable polarization. The KP-960SPY7 is ideally suited for 900 MHz ISM bands. This 7 dBi antenna supports Land Mobile Radio for land transportation, utility, manufacturing, and petrochemical companies (oil and gas).

Measuring 13.4 inches long, the N-female KP-960SPY7 from KP Performance is manufactured using robust 5/16” aircraft quality aluminum elements. The KP-960SPY7 elements are completely welded to a 1” boom and painted black. This ensures performance and survivability in the toughest environments.

KP-960SPY7 Yagi Antenna from KP Performance operating from 880 MHz to 960 MHz can cover all your needs for Land Mobile Radio and Utilities communications.

KP Performance 7 dBi 900 MHz 13.4 inch Yagi antennas are high-quality components backed by expert technical support and sales personnel. The KP-960SPY7 is in stock and ready to ship the same day.

Features:

  • Aircraft Quality 6061-T6 Aluminum with 5/16’’ Elements with 360° Fully Welded to a 1’’ Boom
  • Powder-Coated Balck for Corrosion, Fade, and Ice-Build Up Resistance
  • Can be Installed for Either Vertical or Horizontal Polarization
  • Comes with 36’’ LMR400 Pigtails with N-Type Female Connectors

Applications:

  • 900 MHz Cellular and GSM
  • 900 MHz ISM Band & Wireless LAN Systems
  • Point to Multipoint & Non Line of Sight
  • NLOS Applications
  • RFID & SCADA
  • LPWAN, LoRA, IoT, M2M

Specifications

Specifications KP-960SPY7

Polarization TypeHorizontal or Vertical
Gain7 dBi
Vertical Beamwidth60°
Horizontal Beamwidth100°
F/B Ratio15 dB
VSWR1.5:1
Connector TypeType N Female
Length13.4 in
Width7.1 in
Height2.4 in
Mounting Mast Daimeter0.75 to 2 in
Weight3 lbs (1.36 kg)
