  • KP Performance 1.5 GHz to 1.6 GHz, 32 dBi GPS/GLNSS Timing Antenna, W/ Mounting Kit

KP Performance 1.5 GHz to 1.6 GHz, 32 dBi GPS/GLNSS Timing Antenna, W/ Mounting Kit

(0)No Reviews yet
  • SKU: KP-GPSL1-32-MNT-TF
  • Manufacturer: KP Performance
  • Data Sheet: Download

Product Information

KP Performance KP-GPSL1-32-MNT-TF

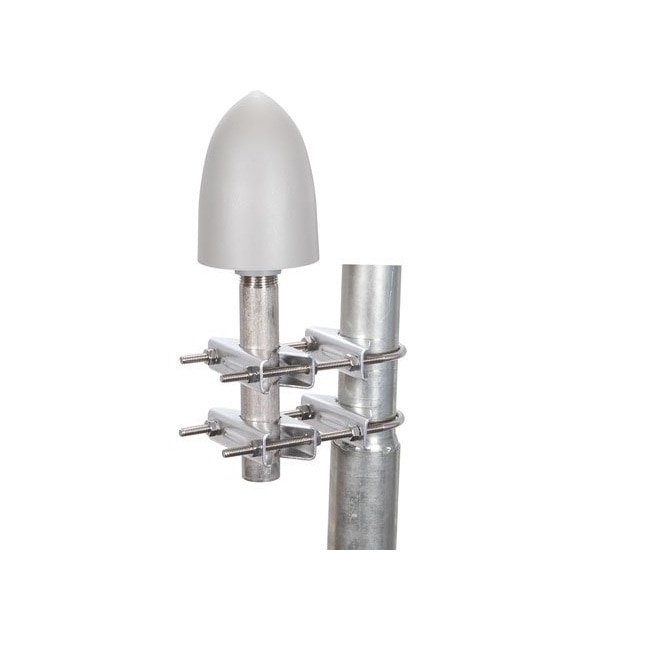

1.574 GHz to 1.61 GHz, 32 dBi GPS/GLNSS Timing Antenna, W/ Mounting Kit

The KP-GPSL1-32-MNT-TF GPS/GLNSS timing antenna is a professional grade product used for advanced time and frequency system applications. Housed in an IP-67 rated high impact ASA ad die cast aluminum housing it’s suitable for all outdoor and marine environments.

It includes a set stainless steel and Dacron plated mounting clamps.


Features:

  • High Selectivity Dual Filter RF Architecture
  • Eliminates High Power RFI Operating within Multi-Located Base Station Environment
  • Impact Resistant ASA Radome
  • Rugged Die-Cast Aluminum Base
  • Integrated Bulkhead, TNC Jack
  • IP67 Rated
  • ¾" NPT and 1"-14 Marine Mount Compatible
  • UV Resistant/Cool Gray for Reduced Visibility
  • Mounts to standard pipe up to 1-1/2"
  • High grade stainless steel and Dacron plated steel mounting clamps

Applications:

  • Network time Synchronization
  • Precision frequency reference

Specifications

Specifications KP-GPSL1-32-MNT-TF

Housing Plating/ColorGray
Weight15 lbs.
Height4.88"
Base Diameter3.5"
Frequency Range1.574 to 1.61 GHz
Band TypeSingle Band
Gain32 dBi
Radiation PatternOmni Directional
Out of Band Rejection70 dBi
Operating DC Voltage5.5 V
VSWR2.1
Impedance50 dB
Current15 mA
Connector TypeTNC Female
