KP Performance 4.9 GHz to 6.4 GHz, 65 Degree Sector Antenna, 17 dBi, 2-Port, Horizontal/Vertical

(0)No Reviews yet
US$‎299.25 US$‎315.00
  • SKU: KPP-5DP65S-HV
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

23 in stock
Lewisville TX
23 In stock

Product Information

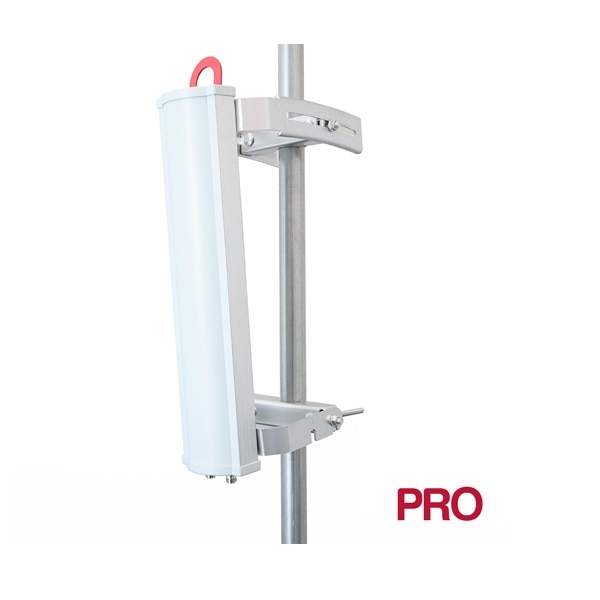

KP Performance KPP-5DP65S-HV

4.9 GHz to 6.4 GHz, 65 Degree Sector Antenna, 17 dBi, 2-Port, Horizontal/Vertical

The KPP-5DP65S-HV is a 5 GHz ProLine Sector Antenna with a 3 dB beamwidth of 65°, high gain of 17.0 dBi, two ports with horizontal and vertical polarization, and operates over an ultra-wide bandwidth of 4.9 GHz to 6.4 GHz. The sector antenna has an aesthetically small footprint and delivers consistent gain in its coverage area.

This sector antenna offers side lobes suppression and a front to back over 30 dB while retaining a high gain that outperforms asymmetric horn antennas of the same 3dB azimuth beamwidth. The highly suppressed side lobes and superior front to back allows for channel (frequency) reuse and can reach high levels of spectral efficiency in the most challenging and noisy environments. The polarization is horizontal/vertical, making the sector compatible with many 4.9 GHz to 6.4 GHz single or dual polarization 2 x 2 MIMO radios.

The antenna comes with rugged powder-coated aluminum brackets and features an Integrated hoisting hook for added safety and convenient installation. The sector antenna features a heavy-duty UV-resistant ABS radome and anodized aluminum reflector for all-weather operation. This ProLine Sector antenna is packaged with a rugged universal radio bracket that is compatible with many popular Cambium, Ubiquiti, Mimosa, and Baicells radios and can be retrofitted for many more.


Features:

  • High-performance gain and patterns that are stable over a wide bandwidth
  • Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
  • Universal radio bracket with quick-release slot/clip design is compatible with many AP radios
  • Ultra-wide bandwidths for world-wide markets
  • Integrated hoisting hook for added safety and convenient installation
  • Null fill improves coverage near the tower
  • -9 to 20 Degrees Mechanical Tilt

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-multipoint (PtMP) requiring sectorial coverage
  • Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
  • Mobile WiMAX Wireless Internet Provider “cell” sites
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Macro base station or small cell deployments

Specifications

Specifications KPP-5DP65S-HV

Frequency Range:4.9 GHz to 6.4 GHz
Polarization Type:H/V
Gain:17 dBi
Vertical Beamwidth:8.3°
Horizontal Beamwidth:65°
Electrical Downtilt:
F/B Ratio:30 dB
Connector Type:2 x Type N Female
Mounting Mast Diameter0.75 to 4.5 in
Weight9.9 lbs
Dimension16.9 in L x 5 in W x 2.7 in H
