KP Performance 2 GHz, 13 dBi, H/V Dual Polarization Omni Antenna with Integrated Large Radio Case

(0)No Reviews yet
US$‎284.04 US$‎298.99
  • SKU: KPPA-2GHZ-DPOMA-WC-3
  • Manufacturer: KP Performance
  • Data Sheet: Download

Out of Stock

19 in stock
Lewisville TX
19 In stock

Product Information

KP Performance KPPA-2GHZ-DPOMA-WC-3

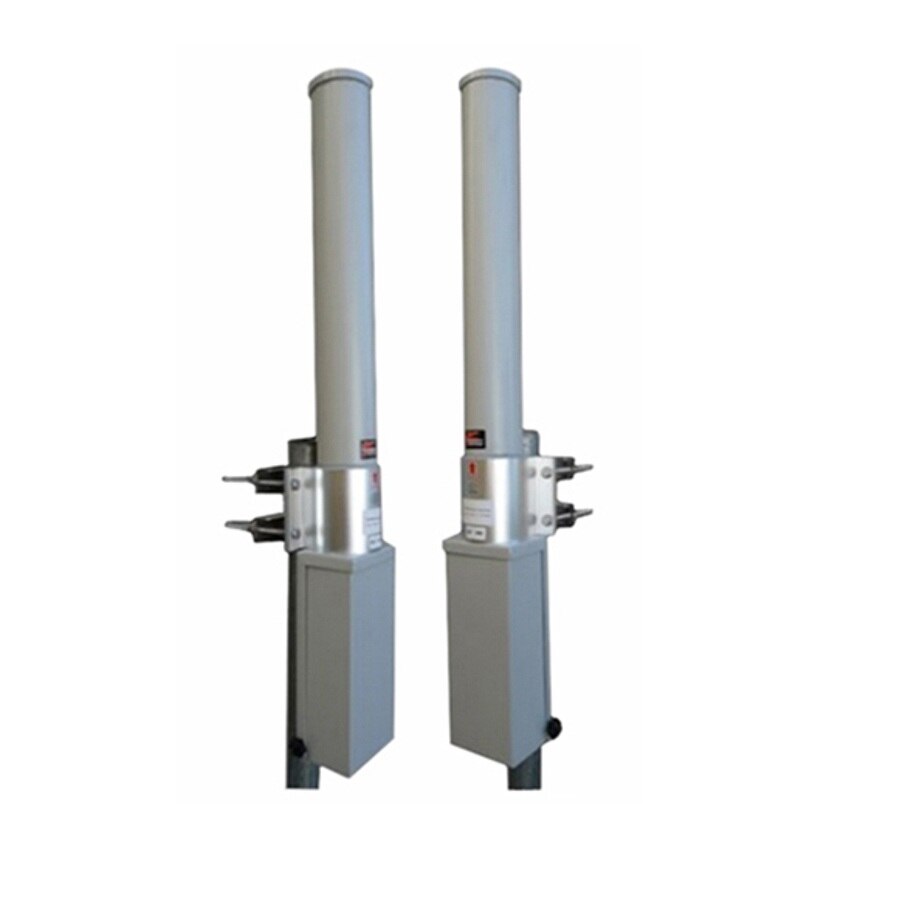

2 GHz, 13 dBi, H/V Dual Polarization Omni Antenna with Integrated Large Radio Case

NOTE: Radio case can be taken off by removing 4 small screws.

The KPPA-2GHZ-DPOMA-WC-3 builds upon KP’s dual polarized 2.3 – 2.6 GHz, 13 dBi, omni antenna which now comes with a larger integrated radio case that fits most popular radios from Cambium and Ubiquiti. This includes the Ubiquiti Rocket 2AC Prism (R2AC) and Cambium ePMP1000 and legacy radios supported by KP’s 2nd generation omni's with case.

The radio case protects both the radio and cables from direct rain and sun, reducing the chance of failure in the field and simplifying installation with minimal taping of connectors. The antenna comes with two N-type Female Right Angle to RP-SMA Female Straight LMR200 cables of 6” length. Fully assemble the antenna and radio on the ground and simply plug in the ethernet cable through the grommet in the case.

Using an omni antenna like this is a practical solution when you are setting up a new tower and cannot justify the cost of putting up 3, 4 or more radios and sectors.If you only require a radius of 5 to 6 miles, the KPPA-2GHZ-DPOMA-WC-3 omni antenna may be the solution you are looking for, providing a very consistent pattern with no null zones.

Rugged, weatherproof and equipped with a versatile pipe style mount, the KP performance omni antenna is built for a broad range of environments and features a heavy-duty UV-resistance plastic radome for all-weather operation. The powder coated, high-strength mounting brackets and radio case are corrosive resistant and built to withstand wind speeds of up to 130mph.


Features:

  • 2.3 – 2.6 GHz, 13 dBi gain with Horizontal/Vertical Polarization
  • 360 degree of coverage with no null zones
  • Powder-coated metal case protects your RF connections, minimizing need for tape
  • Out performs our competitors by 1 to 3 dBi
  • Will not require a RF shield if using a UBNT radio.
  • Functional easy-to-install mounting bracket
  • 2 x 2 MIMO – Multiple Input and Multiple-Output
  • Cost effective all-in-one Omni Antenna solution with radio casing attached
  • 2 x N-type Female Right Angle to RP-SMA Female Straight LMR200 cables of 6” length

Applications:

  • 2.4GHz Wireless MIMO LAN systems & IEEE 802.11b/g/n/ax
  • Indoor and Outdoor WiFi hotspots
  • Mobile WiMAX Wireless Internet Provider "cell" sites
  • Point-to-multipoint (PtMP) requiring 360 degree of coverage
  • Cost-sensitive low-density deployments

Specifications

Specifications KPPA-2GHZ-DPOMA-WC-3

Frequency Range2.3 GHz to 2.6 GHz
Polarization TypeHorizontal/Vertical
Gain13 dBi
Vertical Beamwidth
Horizontal Beamwidth360°
Electrical Downtilt
VSWR1.8:1
Cross Polar Ratio20 dB
Port Isolation30 dB
Connector Type2 x Type N Female
Temperature
Operate Range-40 +65 deg C
Wind Survivability130 MPH (209.21 KPH)
Dimension 62 in L x 8.5 in W x 7.3 in H
Weight 9.9 lbs
Mounting Mast Diameter1.6 to 2.4 in
