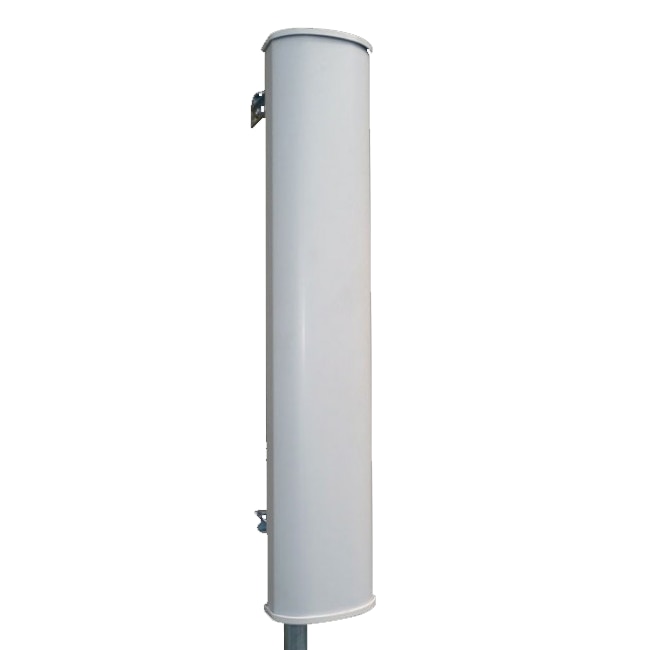

KP Performance 2 GHz 17 dBi Dual Pol ±45 Degrees Slant 90 Degree Sector Antenna

(0) No Reviews yet
  • SKU: KPPA-2GHZDP90S-45
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Open chat or call usEmail me when this product is in stock!
$239.99

Specifications KPPA-2GHZDP90S-45

Part NumberKPPA-2GHZDP90S-45
Electrical
Frequency range2300-2700 MHz
Polarization±45 degree slant
Gain17.0 dBi
Azimuth 3dB beamwidth90 °
Elevation 3dB beamwidth7.4 °
Electrical Downtilt1.2 °
VSWR< 1.3:1
Return loss> 17 dB
F/B ratio> 28 dB
Cross-pol ratio> 23 dB
Port to port isolation31 dB
ABAB frequency re-use-23 dB
ABABAB frequency re-use-13 dB
ABCABC frequency re-use-26 dB
Input power50 W max per port
Impedance50 Ω
Connector TypeType N Female x 2
Mechanical
Dimensions35 x 7 x 3.5”
Weight9 lb
Mounting methodCarriage bolts
Mounting pole dia1¼” – 3 ½”
Surface FinishMatt powder coat
Environmental
Temperature range-40° to +60° C / +140° F
Wind speed160 km/h / 100 mph
UV protectionUV resistant powder coat
Ingress protectionIP55 rain resistant

KP Performance KPPA-2GHZDP90S-45

2 GHz 17 dBi Dual Pol ±45 Degrees Slant 90 Degree Sector Antenna (Cables Included)

The KP Performance KPPA-3GHZDP90S-45 is a 2 GHz ±45 Degree Slant, Dual Pol 16.7 dBi, 90 Degree Sector Antenna with two type-N connectors. This 2 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios in WISP and LTE networks.

These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 2 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.


Features

  • Functional mounting bracket.
  • Flexible LMR200 cables provided.
  • Stainless steel hardware.
  • Cost effective all in one Omni Antenna solution with radio casing attached.
