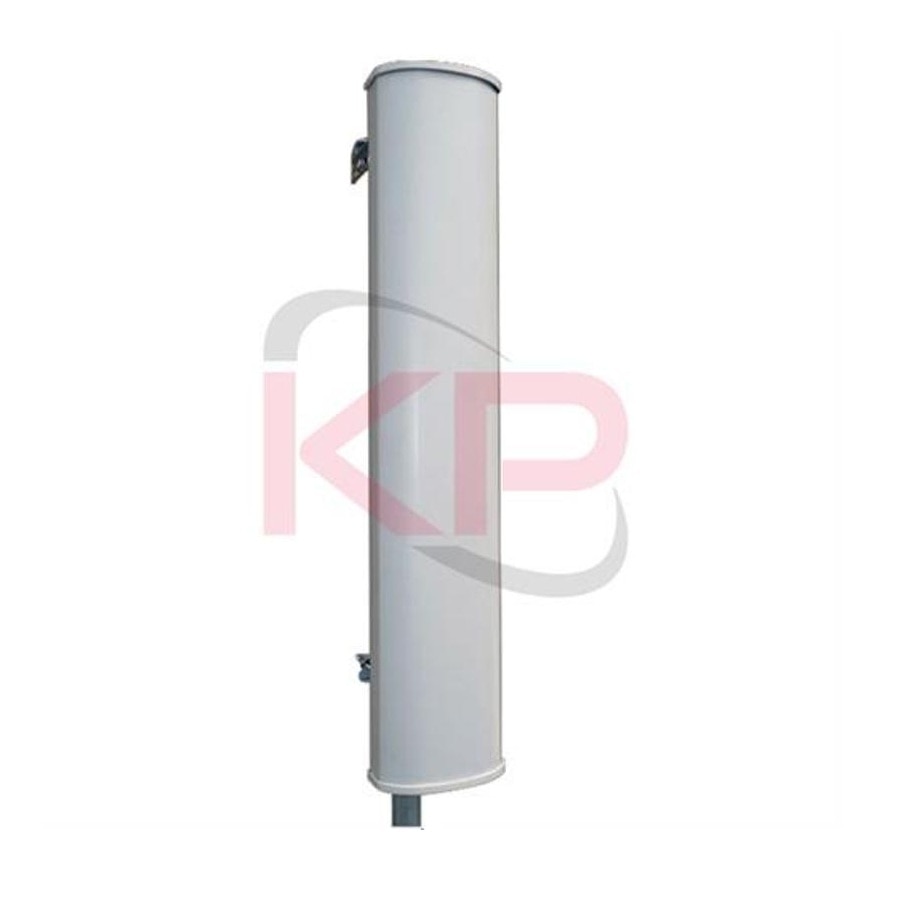

KP Performance KPPA-5GHZDP120S-WC
5 GHz 16.3 dBi Dual Pol H/V 120 Degree Sector Antenna with Radio Case (Cables Included)
The KPPA-5GHZDP120S-WC is a 5 GHz 16.3 dBi dual polarized H/V 120 degree sector antenna with an integrated radio case. This 5 GHz sector antenna is specifically designed for customers deploying H/V polarized radios. The case on this sector antenna will fit a ePMP and all versions of the Ubiquiti AP radios.
These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 5 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.
Features:
- Metal radio casingcontains RF connections
- Metal case covers up the SMA connection on the sector and radio
- Out performs our competitors by 1 to 4 dBi as compared to a competitors sector antenna with shield added
- Will not requite a purchase of additional RF shield kit
- Very high F/B ratio
- Versatile mounting bracket
- Flexible LMR200 cables provided
- Sleek new design for low wind loading
- Stainless steel hardware
- Most cost effective all in one solution sector antenna on the market
Specifications
Specifications KPPA-5GHZDP120S-WC
| Frequency Range | 5.1 GHz to 5.9 GHz |
| Polarization Type | Horizontal/Vertical |
| Gain | 16.3 dBi |
| Vertical Beamwidth | 4.4° |
| Horizontal Beamwidth | 120° |
| Electrical Downtilt | 0.9° |
| F/B Ratio | 32 dB |
| VSWR | 2:1 |
| Cross Polar Ratio | 27 dB |
| Port Isolation | 33 dB |
| Connector Type | 2 x Type N Female |
