L-Com 4.9GHz-5.8GHz, 34dBi, Dual Polarity Dish Antenna

(0)No Reviews yet
US$‎437.71
Tariff/Surcharge Fee: US$44.65
  • SKU: HG4958DP-34D
  • Manufacturer: L-Com
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

L-Com HG4958DP-34D

4.9-5.8 GHz Dual Polarized/X-Polarity 34dBi Dish Antenna

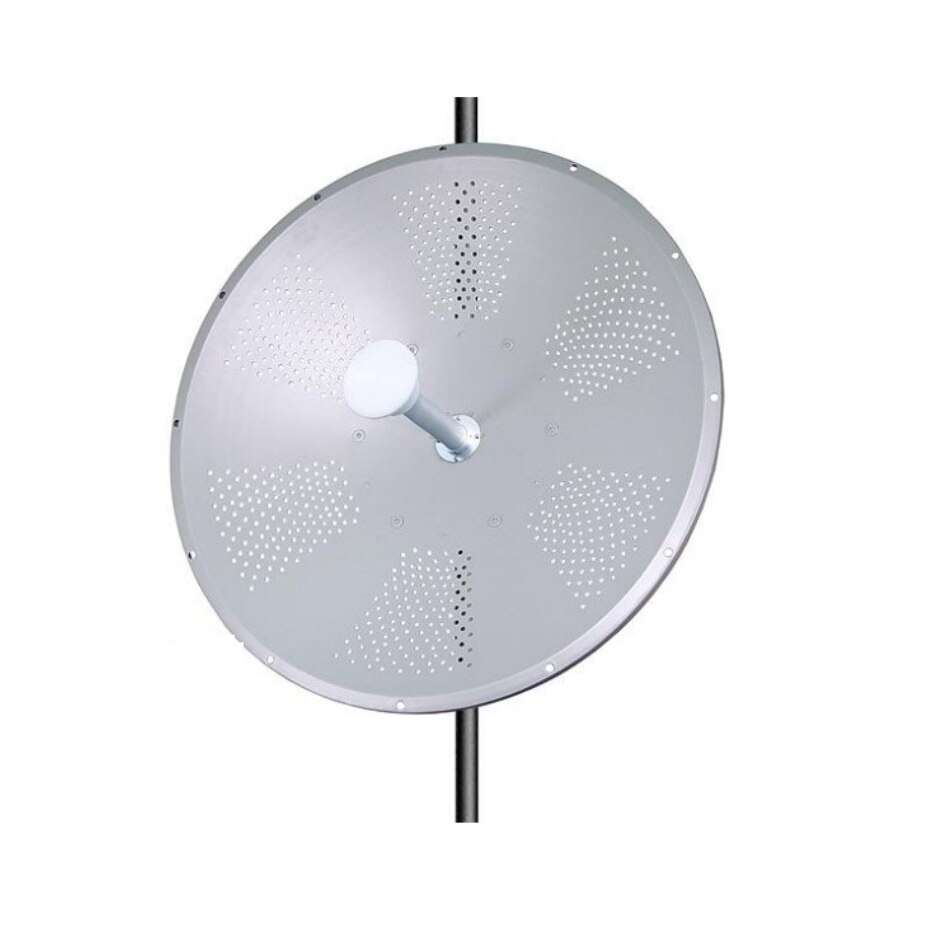

The HyperLink model HG4958DP-34D is a high performance broadband dual polarized solid dish antenna. Because of its' superb electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of high performance 4.9GHz and 5GHz range (5.1/5.3/5.4/5.8GHz) wireless applications. The wide band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications. This antenna features 31 - 34 dBi of gain with a 3.3° horizontal beam-width and 3.3° vertical beam-width.

Adjustable Dual Polarity Feed Horn System

The HG4958DP-34D features an adjustable dual polarity feed horn system which allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°). It is fed via two N-Female connectors, one for each polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems.

Rugged and Weatherproof

The reflector dish of the HG4958DP-34D is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. Perforated holes in the dish helps minimize wind loading.

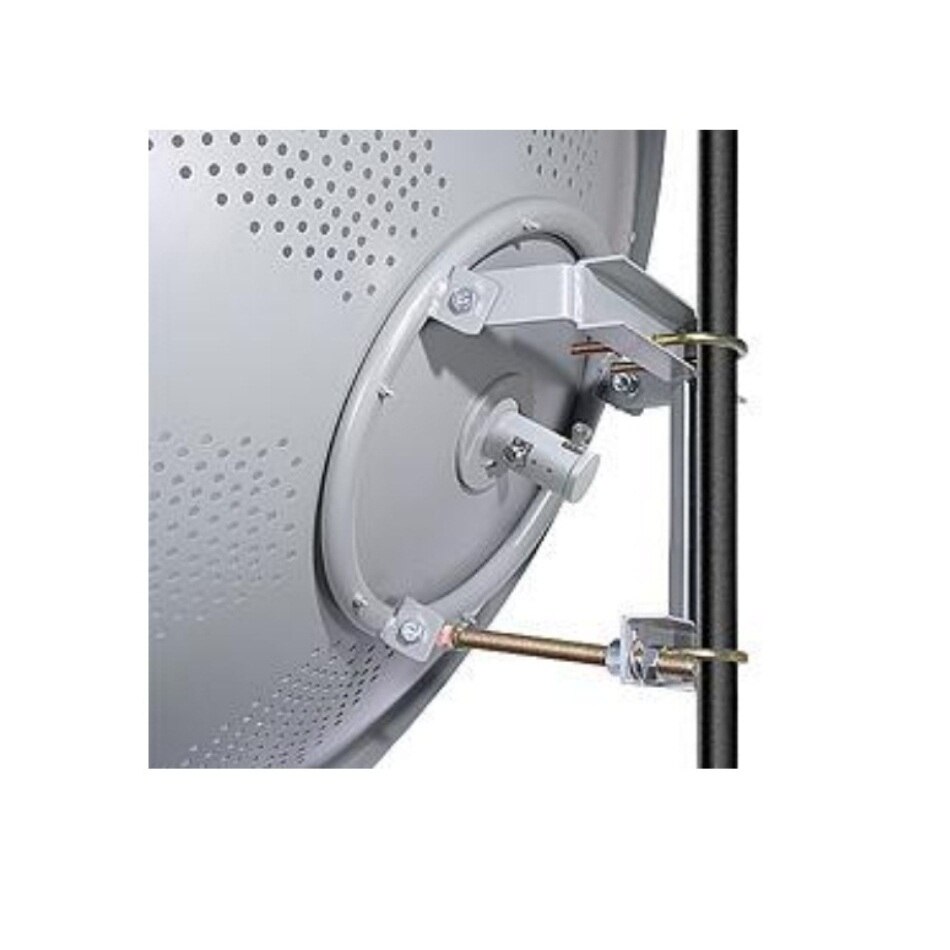

The HG4958DP-34D is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. It can be adjusted up or down from 0° to 30°.


Features:

  • Adjustable dual polarity feed horn system allows the antenna to be configured for Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
  • Perforated aluminum reflector dish helps reduce wind loading and features a UV stable light gray polymer finish

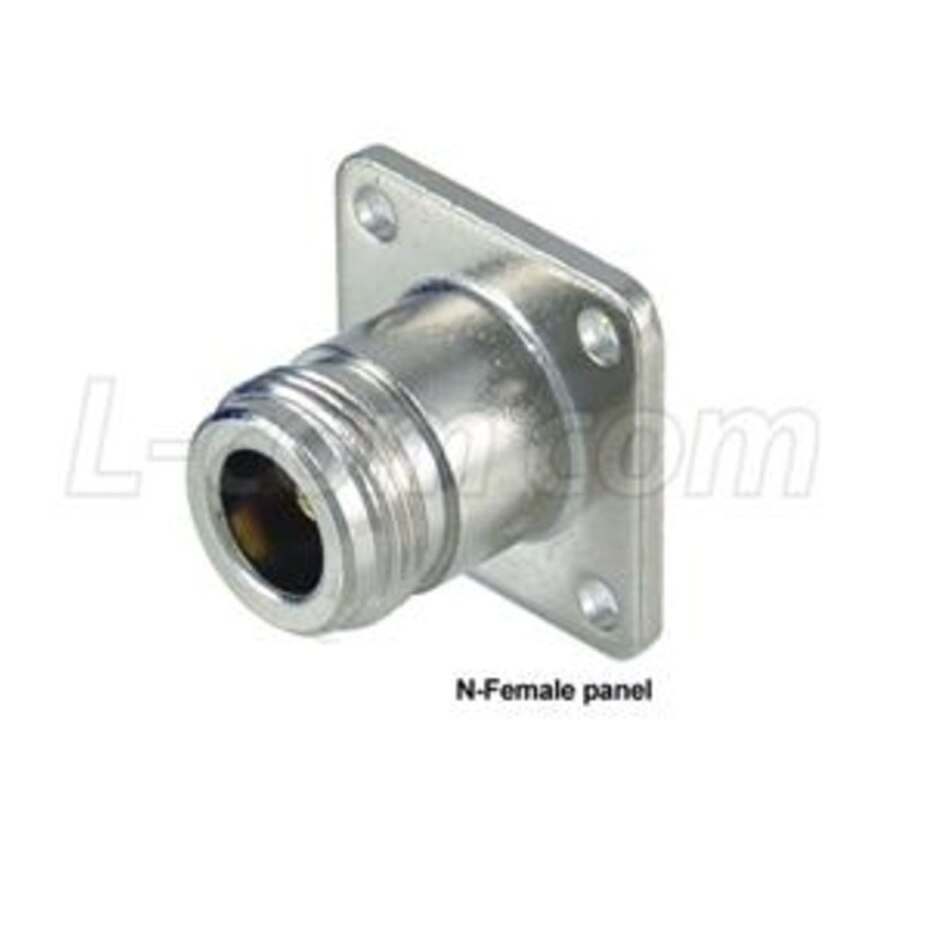

  • (2) N-Female connectors
  • Includes tilt and swivel mast mount kit
  • Optional radome cover kits available

Applications:

  • 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
  • 4.9 GHz Public Safety Band
  • MIMO and 802.11 n Applications
  • WiMAX Applications
  • Long Distance Backhaul and Point to Point Data Links

Specifications

Specifications HG4958DP-34D

Mechanical
Connector Interface (2) N Female
Diameter 35.43 in (900mm)
Weight 21.16 lbs (9.6kg)
Mounting Mast Size 1.6 - 3 in (40-75mm)
Electrical
Frequency 4750 – 5850MHz
Gain 31 dBi @ 4.9-5.3 GHz / 34 dBi @ 5.4 – 5.8 GHz
Polarization Adjustable - Dual Polarized (Vertical and Horizontal) or X-Polarized (+45° and -45°)
Horizontal /Vertical Beam-width 3.3°/ 3.3°
F/B ratio >40dB
Cross-pol Isolation >30dB
Max Input Power 100 watts
Impedance 50 Ohm
