Primus Cable Shielded CAT 5E Keystone Coupler, Snap-In, w/ Keystone Latch
- SKU: K55-3180-CJ-S
- Manufacturer: ISP Supplies
Product Information
Shielded CAT 5E Keystone Coupler, Snap-In, w/Keystone Latch
Primus Cable's Snap-In Shielded CAT5E Inline Coupler works great for extending your telephone or computer patch cord into any room of the house or office. Our Snap-In Shielded CAT5E Inline Coupler is designed to snap into our high density wall plates (WP2-) and patch panels and link two shielded networking patch cables together. The snap-in style in-line coupler jack provides a female-to-female feed-through connection for easy cable hook-up.

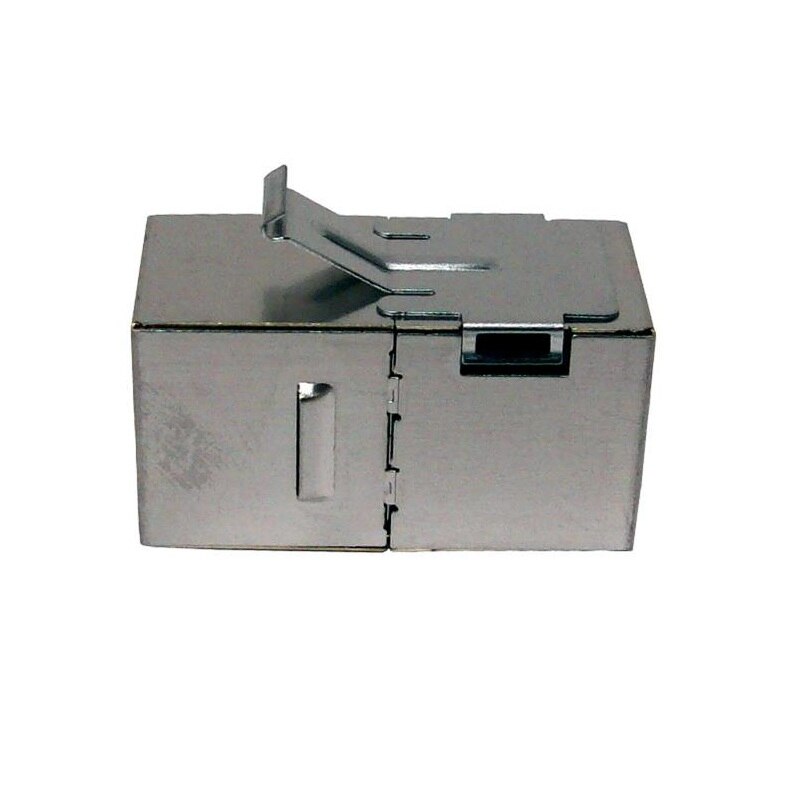

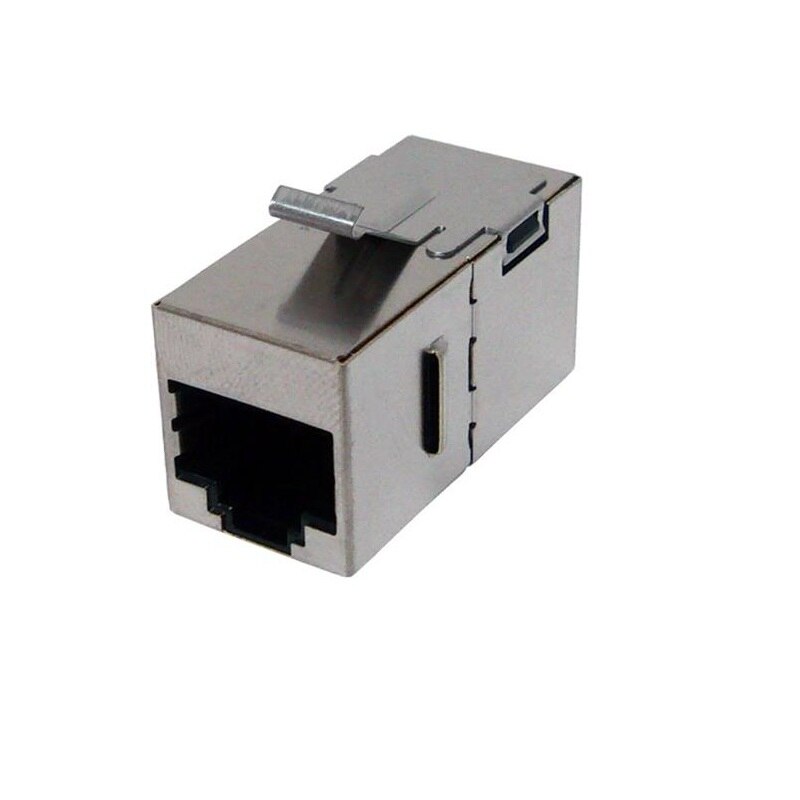

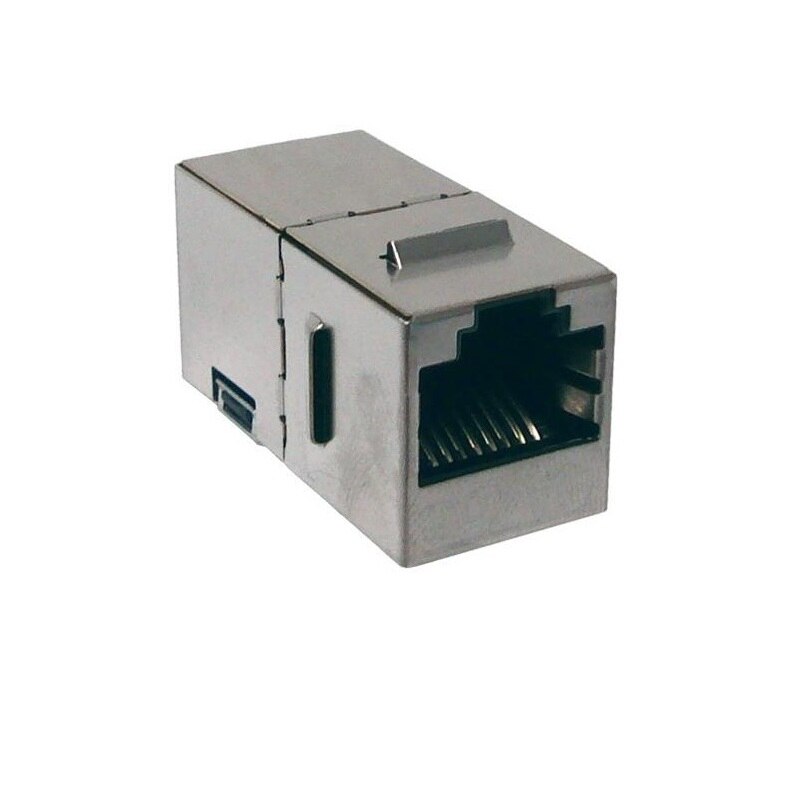

The coupler jack is fully covered in a metal case to protect your signal against electro-magnetic noises that may interfere with your signal. The Shielded Snap-In CAT5E Inline Coupler comes standard with gold plated brass contacts and 8 conductors straight-thru RJ-45 CAT 5E. It is designed for computer networking applications and works best with Primus Cable's Patch Cords, high density patch panels and high density wall plates (WP2-).
Applications
- Voice
- 10BaseT
- 1000Base-T, VOIP
- 4 Mbps Token Ring
- 10 Mbps Ethernet
- 155 Mbps ATM
- ISDN
Specifications
Specifications K55-3180-CJ-S
| Housing Specifications | |
| Housing: | Shielded Case |
| Colors: | Metal |
| Width: | 14.60 mm |
| Height: | 20.10 mm |
| Depth: | 36.20 mm |
| Electrical Characteristics | |
| Insulation Resistance: | 500M Ω |
| DC / Contact Resistance: | 0.1 Ω / 20M Ω |
| Current Rating: | 1.5 Amps |
| Dielectric Voltage: | 1000V AC |
| Max / Min Temperature: | -10° C / 60° C |
| Contacts Specifications | |
| Verification: | FCC part 68.5 |
| Spring Wire: | Phosphor Bronze 5100W Temper Wire, .45mm, 50U gold over 100U Nickel UCoat |
| Insertion File: | 750 Mating Cycles |
| Contact Force: | 100 Grams |
| Number of Prongs and Conductors: | 8 |
