Laird Technologies 5dBi 900MHz Omni N-Female Integrated

(0)No Reviews yet
  • SKU: OD9-5
  • Manufacturer: Laird Technologies
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

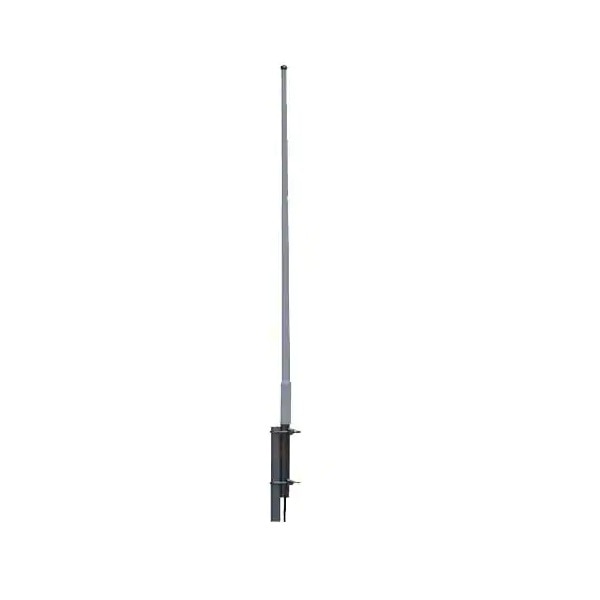

Laird Technologies OD9-5

5dBi 900MHz Omni N-Female Integrated

5dBi 860-960MHz SlimLineOmnidirectional -- (N Fem Integrated Connector)

The NLOS series omnidirectional antenna system offered by Laird Technologies are constructed of UV stabilized fiberglass and stainless steel for long service life. Mounting is easy with a dual u-bolt mounting system. The antennas are vertically polarized. The 6dBi and 8dBi come standard with 18” pigtails terminated in an N female connector. The 5dBi and 11dBi comes standard with an integrated N Female connector. The omni’s are DC grounded for lightning protection. The 11dBi omni is available with 1 deg electrical downtilt which provides null fill and improved close-in coverage.


Features and Benefits:

  • 900MHz omnidirectional antenna
  • Available in 5, 6, 8 and 11dBi gain models
  • 1 degree electrical downtilt available on the 11dBi model
  • UV stabilized fiberglass / stainless steel construction
  • 18” Pigtail with Type N female connector standard (6dBi and 8dBi Models Only)

Applications:

  • 900 MHz ISM band applications
  • WISP base station equipment
  • Non line of sight applications
  • Cellular applications

Specifications

Specifications OD9-5

VSWR 1.5:1
Impedance 50 ohm
Input power 100W
Pole diameter (OD) 1”- 2” (25-51mm)
Operating temperature -45 - +70°C
Rated wind velocity 125 mph (56 m/sec)
Gain 5dBi
VSWR 1.5:1 bandwidth 890-950 MHz
VSWR 2.0:1 bandwidth
Vertical 3dB beamwidth 36°
Electrical downtilt 0
Length 24 in (610 mm)
Diameter 1.5 in (38 mm)
