LightSaber Non-Penetrating Roof Mount Peak Tray
US$49.95 US$68.95
Product Information

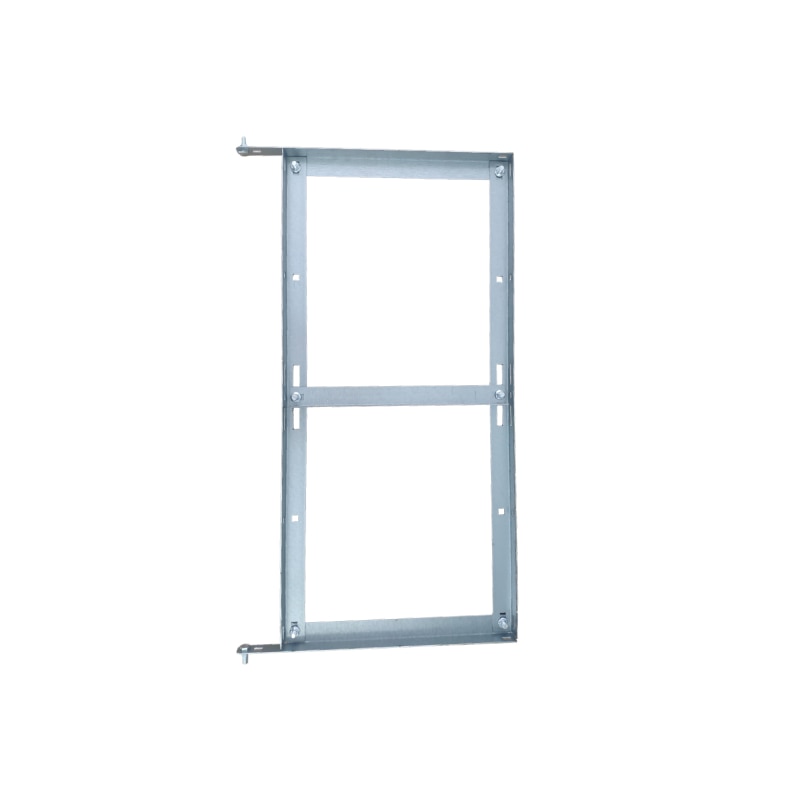

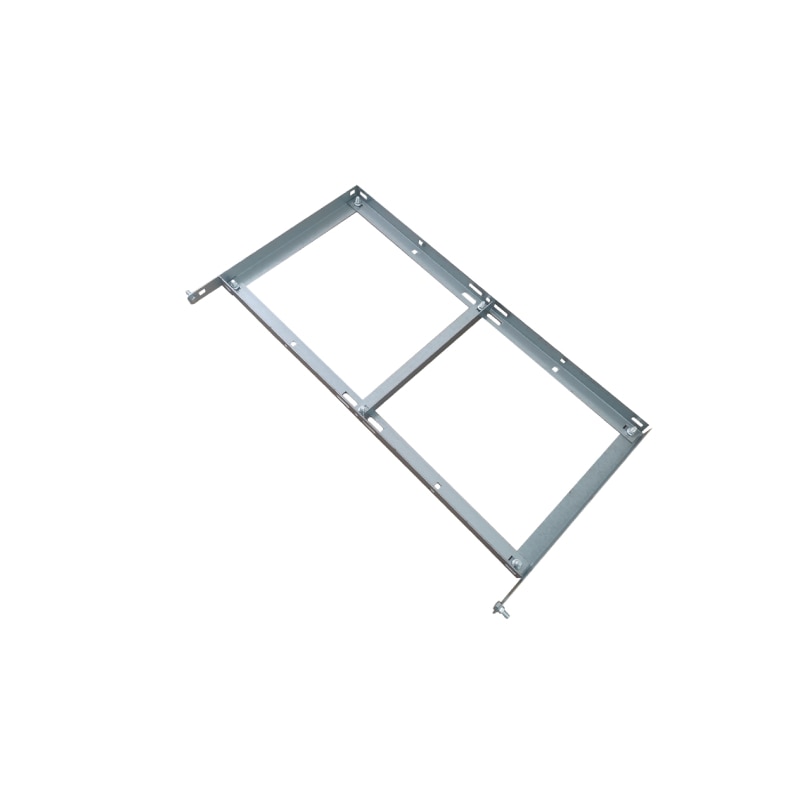

LightSaber LSO-PTRAY
Non-Penetrating Roof Mount Peak Tray, main components thickness T=2.5mm galvanized steel, no surface finish
Non-penetrating roof mounts, also called flat roof mounts, are a popular option for commercial buildings, they are designed to be used when you cannot mount/drill directly into the roof. Made with heavy-gauge galvanized steel, these roof mounts are compatible with 1.74inch OD Pipe Mounting and offer a lightweight and secure method of mounting antennas.

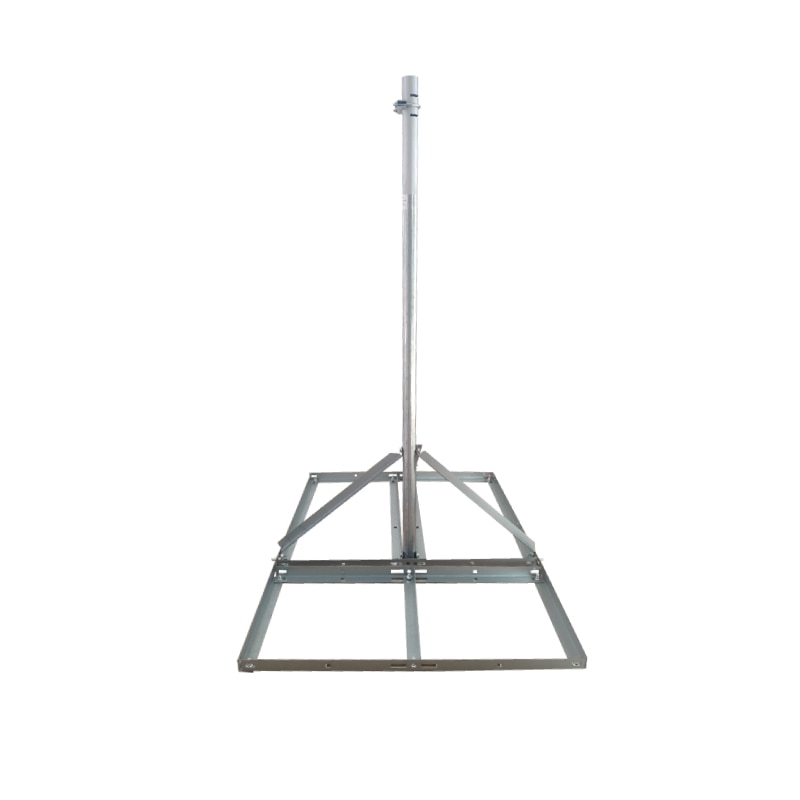

The modular non-penetrating roof mount tray will be used with LSO-NPRM-ADJ for peak or pitched roof mounting or adding additional ballast on a flat roof.
NOTE: This is only the side tray. For the complete assembly, you need the LSO-NPRM-ADJ unit as well.
Features:
- Pre-galvanized for corrosion protection
- Bolt connection structure for fast installation
- Can be used with LSO-NPRM-ADJ for peak mount
- Flat packed for saving shipping cost
Specifications
Specifications
| Model | LSO-NPRM-ADJ |
| Material | Galvanized steel |
| Unit Dimension(WxD) | 20 inches x 35.24 inches |
| Unit Weight(lbs.) | 9.7 |
| Shipping Dimension(WxDxH) | 3.54 x 4.72 x 61.81 inches |
| Shipping Weight(lbs.) | 11.24 |
Adjustable Mount
LSO-NPRM-ADJLightSaber Light Saber Adjustable Non-Penetrating roof mount, 1.74inch Dia x 60inchL Tube
126 in stock
College Station
126 In stock
