LightSaber 30RU 29.53" Wide x 33.46" Deep Outdoor Cabinet with AC 1500W Air conditioner Heater NEMA 4X Rated|Grey
Product Information
LightSaber Optics LSO-30UOD-750850-AC1500-H
30RU 29.53" Wide x 33.46" Deep Outdoor Cabinet with AC 1500W Air conditioner Heater NEMA 4X Rated|Grey
LightSaber's outdoor cabinets are designed to meet NEMA 4 rated standard, ensuring outstanding environment protection of your network equipment, this outdoor cabinet with air conditioner utilize welded, aluminum, powder-coated construction to provide years of trouble-free service, which is mainly used for wireless communications to house a variety of equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.

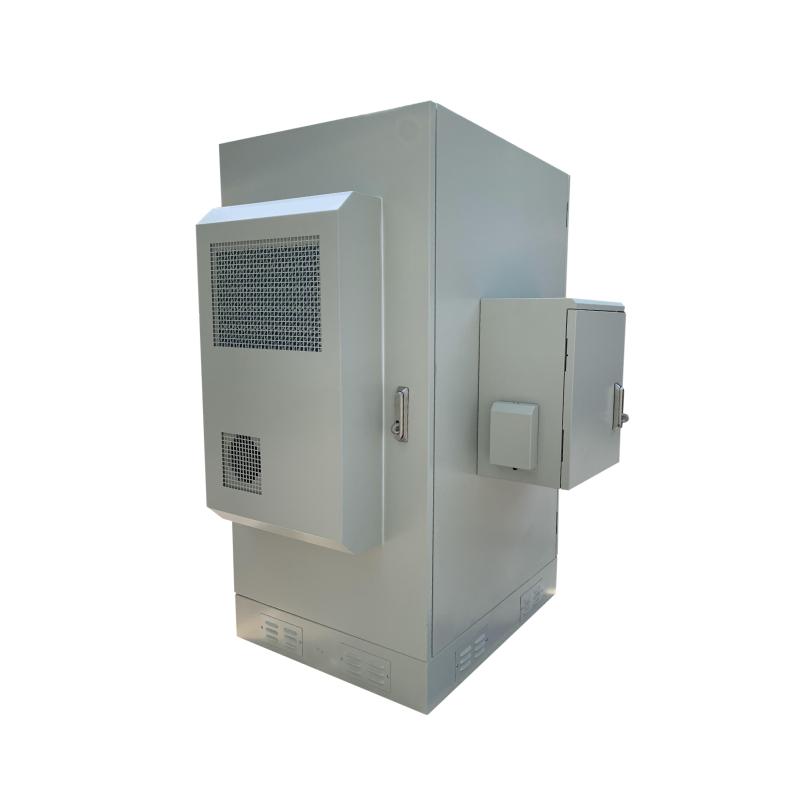

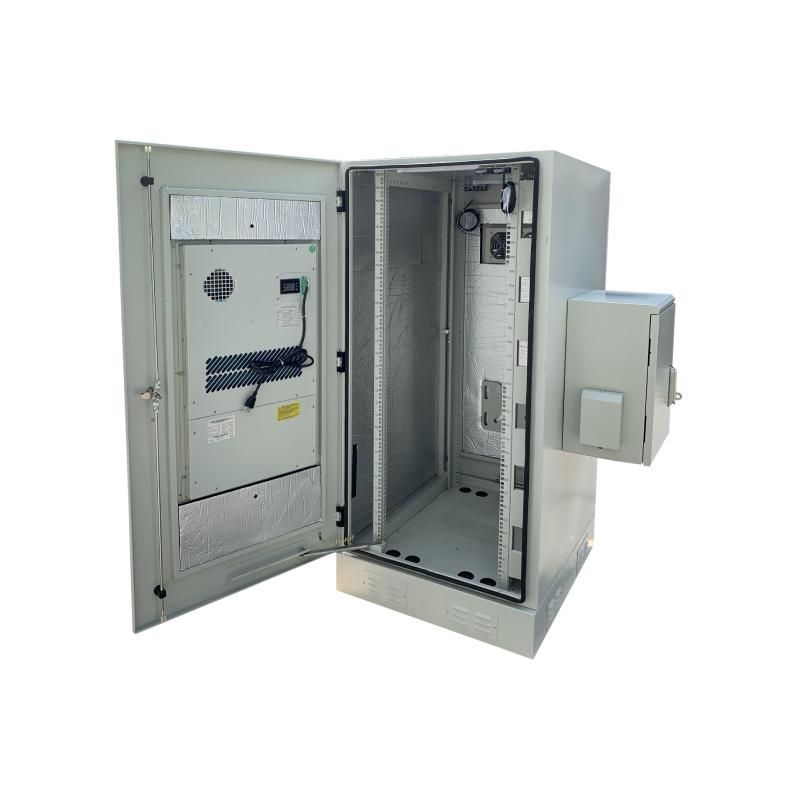

The air conditioner is installed on the cabinet for keeping a stable temperature inside the cabinet so as to increase the service life and stability of the equipment. It provides a secure, thermally managed environment for telecommunications and cable applications.
Features:
- Fully assembly
- 3-point locking system
- 30U equipment space
- 19inch equipment rails(2pcs cable channel included）
- AC110V 60Hz 1500W(5118 BTU) Air conditioner

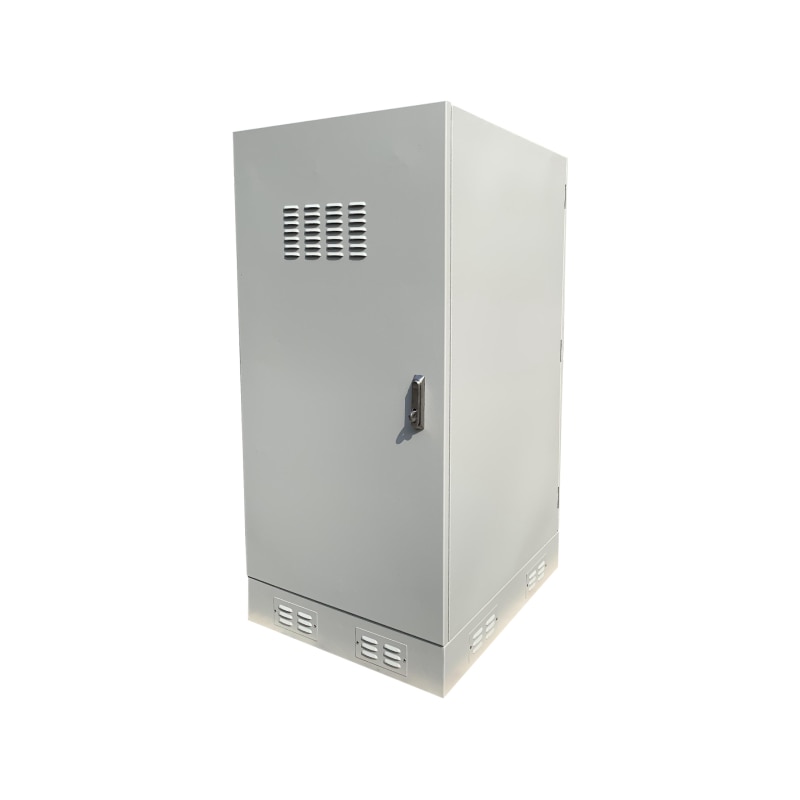

- Front door and rear door opening access

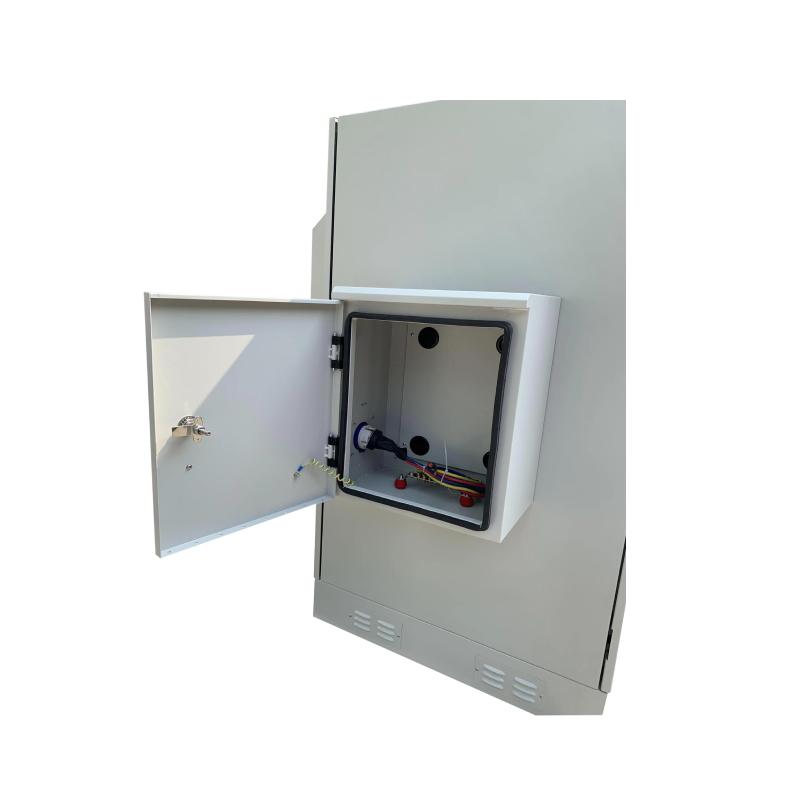

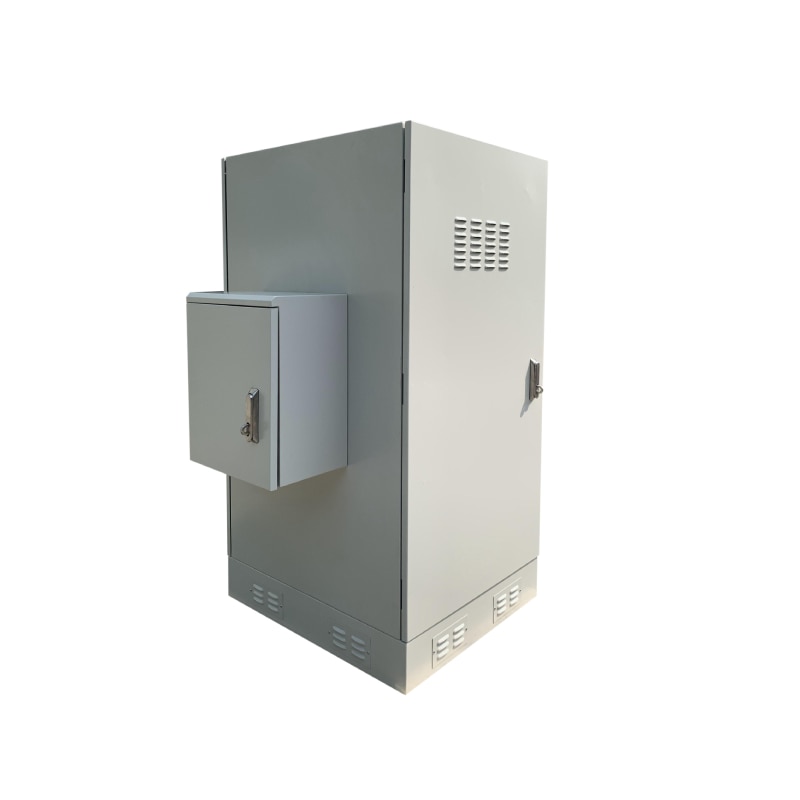

- Side load box pre-mount on the cabinet
- Wind stop bracket to hold the doors when opening
- Grounding copper bar
- Document box at the rear door for storing the equipment manual or useful document
- Cable entry holes with grommets on the bottom
Also comes with:

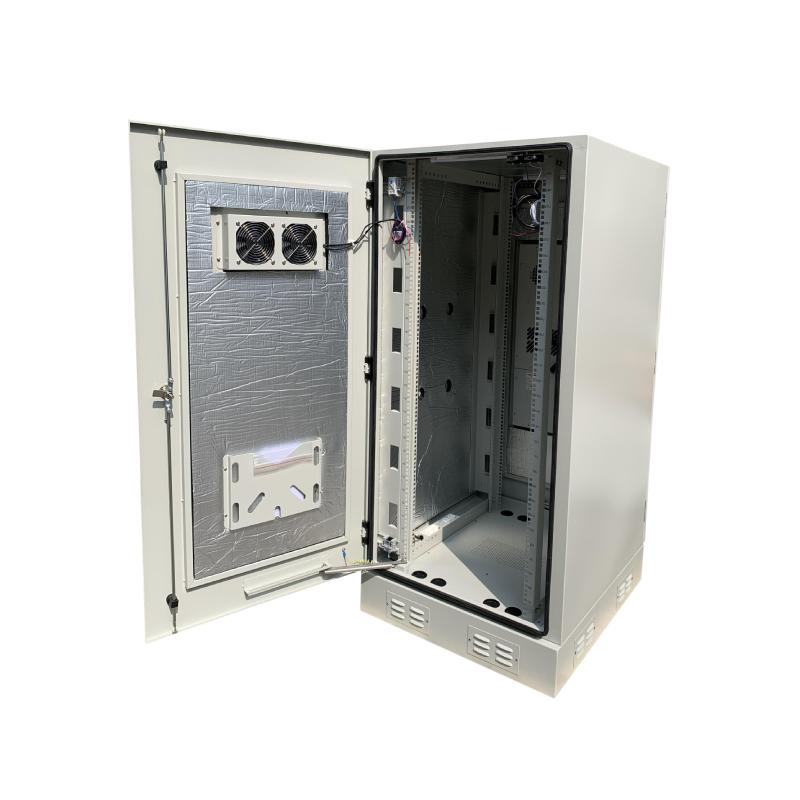

- 2x DC48V emergency fan (with temperature controller)
- 2x DC48V LED lights( 1pcs at front top,1pcs at rear top)
- 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light, the light will be ON when the door opens and OFF when the door closed; 1 sensor is pre-configured with the EMS unit)
- 1x Quad outlet
- 30 x M6 cage nuts
Specifications
Specifications LSO-30UOD-750850-AC1500-H
| Protection Class | NEMA 4X |
| Rack Unit Size | 30U |
| Cabinet Type | Floorstanding Outdoor Cabinet w/ Air conditioner |
| Color | Grey RAL7035 |
| Material | Aluminum |
| Unit Dimension(WxDxH) | 29.53 x 33.46 x 61.02 inches (without air conditioner dim.) |
| Unit Weight(lbs.) | 330.6 |
| Internal Depth (Front Rail to Back Door) | 29.47 inches |
| Rail to Rail Depth | 27.16 inches |
| Shipping Dimension(WxDxH) | 31.89 x 45.67 x 66.93 inches |
| Shipping Weight(lbs.) | 429.78 |
| Electrical | |
| Cooling | AC110V/60Hz, 1500W (5118 BTU) air conditioner (Refrigerant: R134a) DC48V Cooling Emergency Fans x 1 (with temp. controller) |
| Heating | 1000W (3400 BTU) heating function incorporated into the air conditioner |
| Grounding | Earthing Copper Bar, Grounding Wires |
| Side Load Box Dimension(WxDxH) | 15.75 x 10.82 x 19.69 inches, including 60 AMP(Single Phase) generator socket, grounding bar |
| Other | DC48V LED Lights Door Alarm Sensors Quad sockets(NEMA 5-15R outlet) x1pcs |
| Certifications | |
| Safety | CE |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 1 Year |
