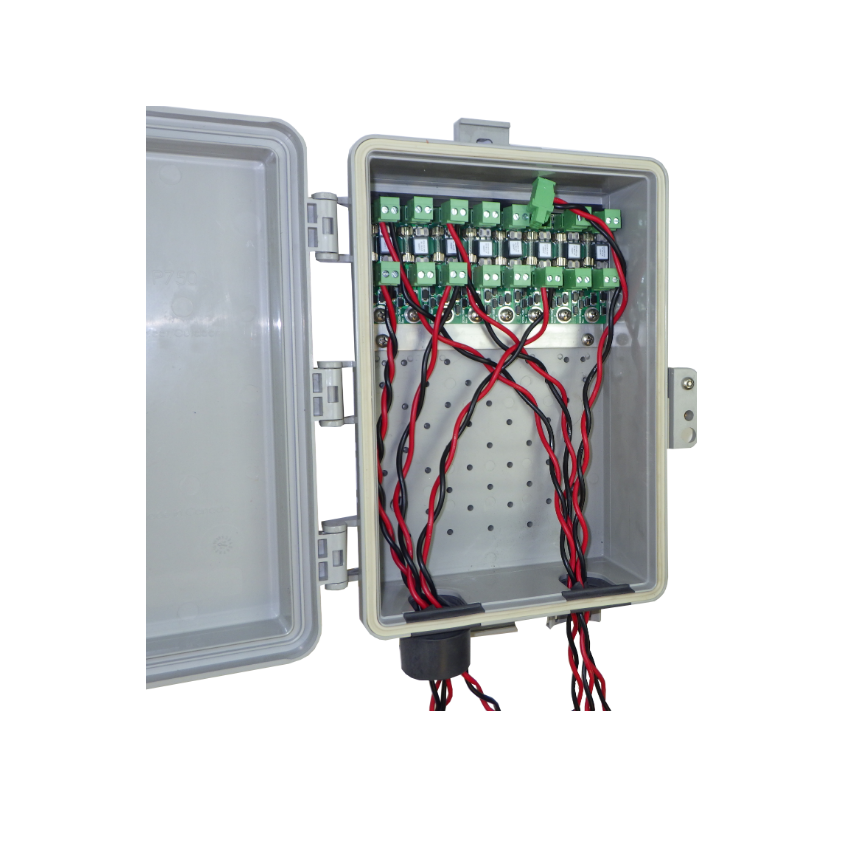

McCown Technology Corporation Tower Mount 8 Circuit Outdoor DC SS

(0) No Reviews yet
  • SKU: 800-DCSS-TWR
  • Manufacturer: Mccown
  • Availability: Open chat or call usEmail me when this product is in stock!
$375.95

Specifications 800-DCSS-TWR

Electrical
Operating Voltage0-55 VDC
Clamping Voltage69 Volts
Dimensions5.5 x 4.5 in

McCown Technology Corporation 800-DCSS-TWR

8 Circuit DC Surge Suppressor - Outdoor Tower Mount

DC Surge Suppressor. Outdoor DC Powerline surge suppressor – protector. Protects input and output separately.

8 Individual DC power circuits in one outdoor rated case.

Lumped inductance

Lumped inductance between input and output chokes surges coming from flowing through. Gas discharge tubes then shunt the surge to ground while impeding their flow to the other side of the device. Both semiconductor surge suppression and Gas Discharge Tube for fast and large surge protection. Double Multi-Stage protection devices provide 4 X the protection of conventional protection devices.

Input and Output on pluggable connectors.

Input and Output LED indicators.


Features:

  • 8 Individual DC Circuits
  • Input and Output on pluggable connectors
  • Input and Output LEDs
  • Each circuit fused at 7 amps
  • Protects Input and Output separately
  • Lumped Inductance impedes surges from transiting the device
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
  • Faster acting than Thyristor AND Gas Tube only designs
  • Ultra fast suppression – typically less than 1.0ps from 0 Volts to BV min
  • Up to 7 amps
  • Fuse on Positive
  • LEDs show voltage on both sides of fuse
  • Will work with positive ground systems

Applications:

  • Any DC powered equipment up to 55 VDC.
