McCown GigE Tower Surge Suppressor Punchdown High Voltage

McCown Technology Corporation 800-GigE-TWR-P-HV

GigE Tower Surge Suppressor Punchdown High Voltage

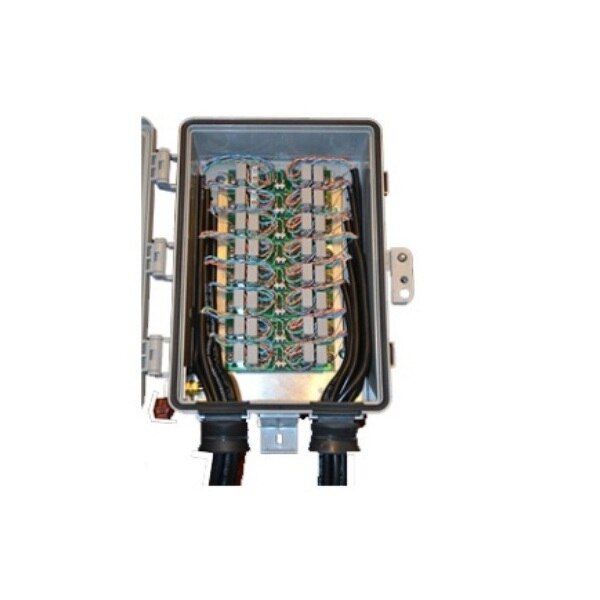

This MTC Surge Suppressor - Protector is designed for outdoor tower or wall mounting. This device is designed to protect equipment such as APs and SMs installed at NOCs or tower sites where a number of devices are colocated. The HV version of this device has a higher ethernet breakdown voltage for high RF exposure situations. The HV is required for POE powered devices. Grounded shielded RJ45 jacks provide grounds to shielded plugs on the J version. The P version has 110 style punch down connections.

Features:

• Compatible with all types of POE (HV Version)
• Individual Field Replacable Modules
• 110 Punch Downs or Shielded RJ45 Jacks
• Gas Discharge Tube Protection
• Silicon Avalanche Diode Protection
• No air Back-Up-Gap (BUG) means extra long life and resistance to insect contamination
• Ultra Low Capacitance Design - Zero Bandwidth Reduction Internal or External Ground Connection
• NEMA 4 Enclosure
• Mounts to Wall or Tower
• High-Speed Ethernet Surge Suppression Design
• HV version with higher clamp voltages for strong RF immunity
• Ultra fast suppression - typically less than 1.0ps from 0 Volts to BV min
