Product Information

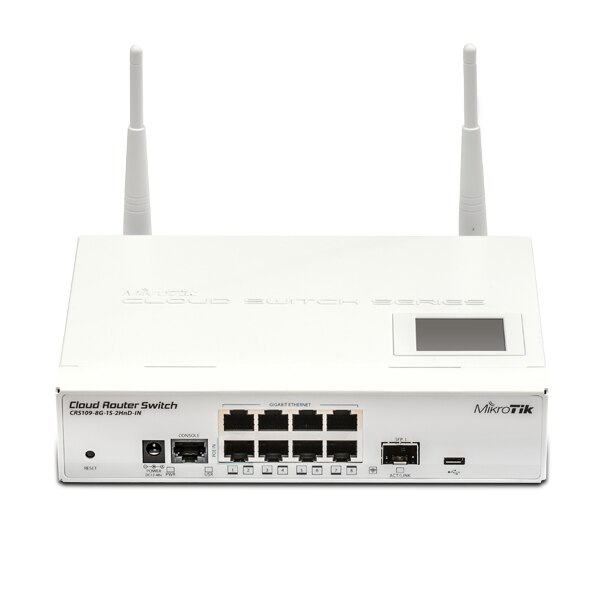

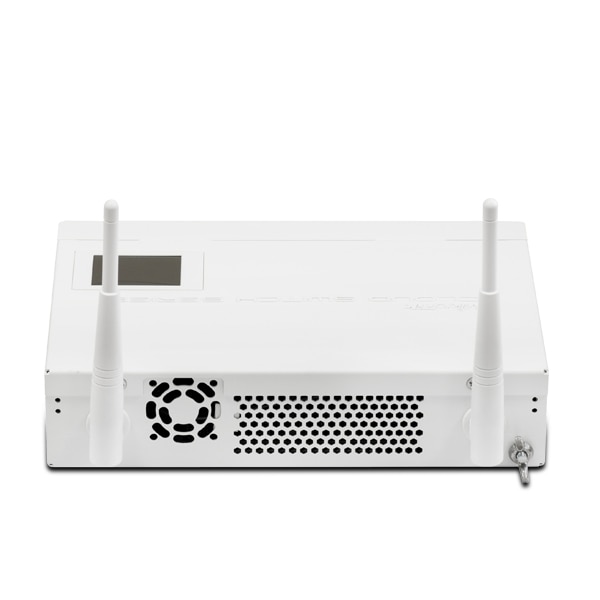

MikroTik RouterBOARD CRS109-8G-1S-2HnD-IN
Cloud Router Switch
Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Features
- Fully manageable L3 switch with full wire speed switching
- Ports configurable as a switch, or for routing
- Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
- RouterOS gateway/firewall/VPN router
- Built in 802.11b/g/n Wireless AP 1000mW
- Desktop case
- Color touchscreen LCD
Specifications
Specifications CRS109-8G-1S-2HnD-IN
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 200x145x45mm |
License level | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
Tested ambient temperature | -35C to +65C tested |
Max Power consumption | 13W |
PoE in Passive | PoE |
802.3af support | yes |
PoE in input Voltage | 10-57 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-57 V |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 4 |
Wireless 2.4 GHz chip model | AR9344 |
10/100/1000 Ethernet ports | 8 |
SFP DDMI | yes |
SFP ports | 1 |
Serial port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1.5 |
