MikroTik Chateau PRO ax, 5X Gigabit Ethernet Ports, 1GB RAM, RouterOS v7, License level 6
- SKU: H53UiG-5HaxQ2HaxQ
- Manufacturer: MikroTik
- MikroTik Chateau PRO ax Datasheet: Download
Product Information
MikroTik RouterBOARD H53UiG-5HaxQ2HaxQ
Chateau PRO ax, 5X Gigabit Ethernet Ports, 1GB RAM, RouterOS v7, License level 6

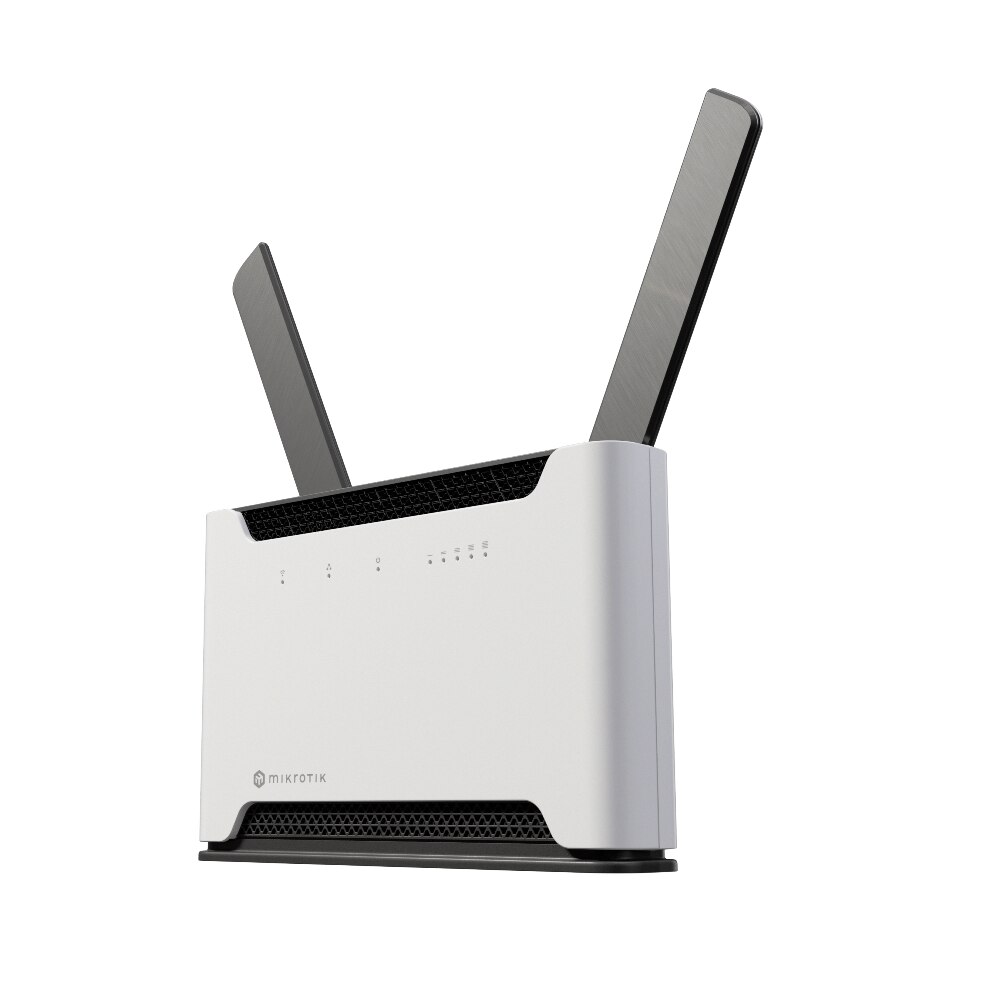

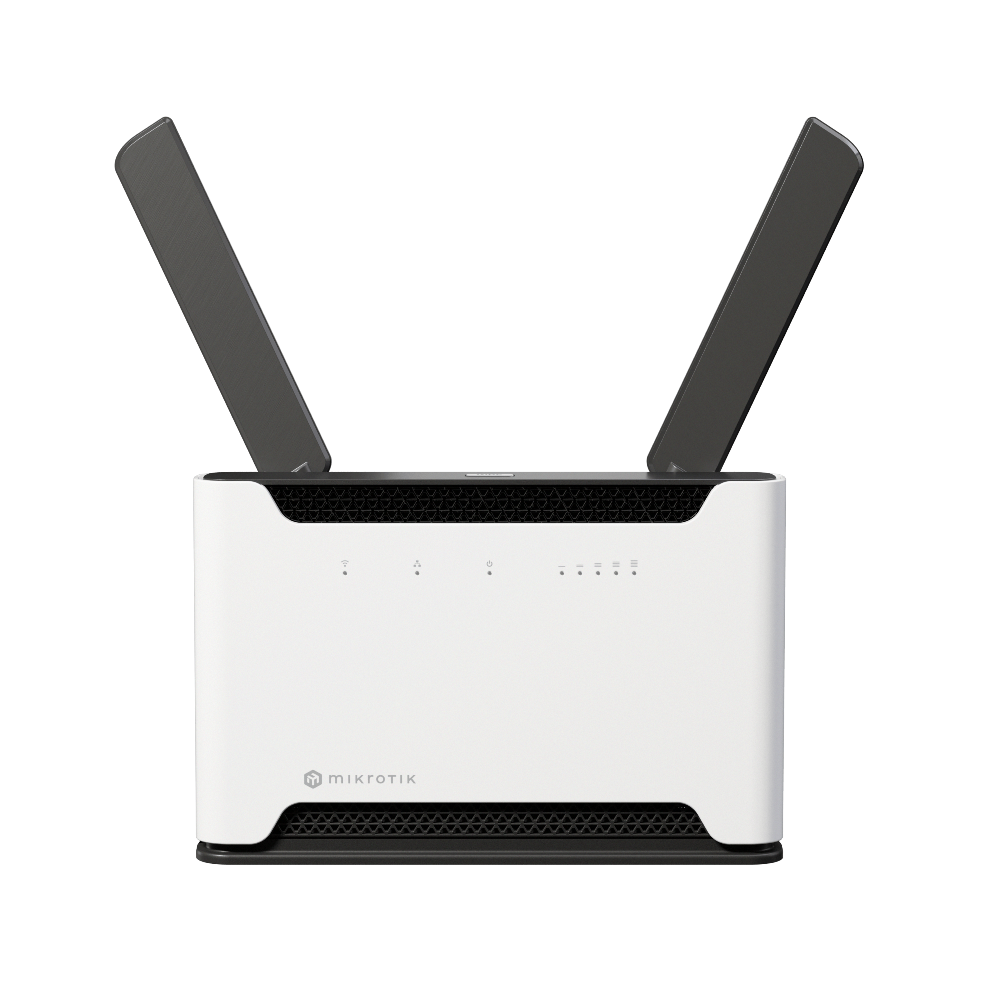

A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU
Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

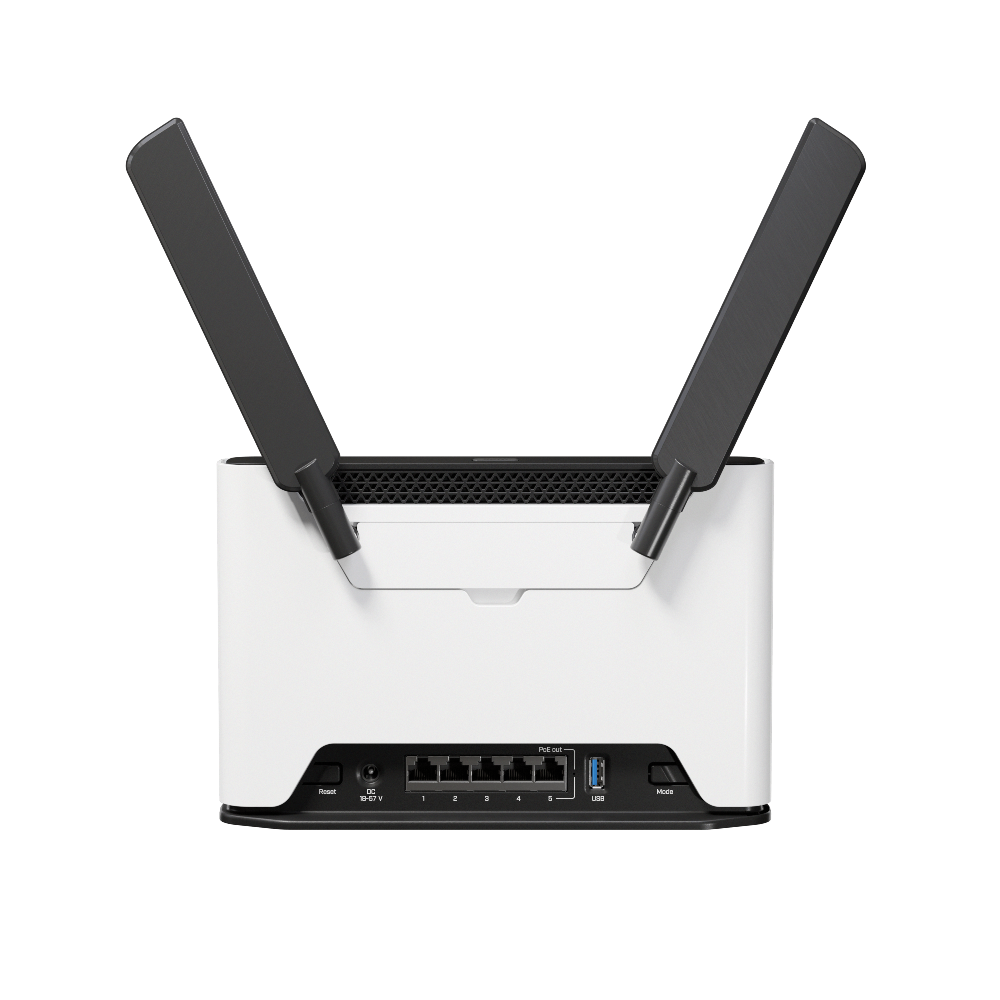

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!
Advanced container setups, bonding, or highspeed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.
Features:
- PoE-out
- RouterOS V7, L6
- Extremely Powerful 2.2 Ghz Quad-Core ARM64 CPU
- 5X Gigabit Ethernet Ports
- 1 GB RAM and USB 3.0
Specifications
Specifications H53UiG-5HaxQ2HaxQ
| CPU | Quad-Core IPQ-8072A 2208 MHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| RAM type | DDR3 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 5 |
| USB port | 1 (3.0 type A) |
| Switch chip model | IPQ-8072 |
| Wireless interface model | QCN-5024 (2.4 GHz), QCN-5054 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax, 5 GHz 802.11a/n/ac/ax |
| Antenna gain | 2.4 GHz - 5 dBi, 5 GHz - 6 dBi |
| Dimensions | 240 x 156 x 44 mm 9.44" x 6.14" x 1.73" inch |
| Operating system | RouterOS v7, License level 6 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 1 |
| DC jack input Voltage | 18-57 V |
| PoE-Out | Passive PoE up to 57 V (Ether5) |
| Max out per port output (input < 30 V) | 600 mA |
| Max out per port output (input > 30 V) | 500 mA |
| Max power consumption without attachments | 18 W |
| Max power consumption | 55 W |
