MikroTik RBLtAP-2HnD&R11e-LTE&LR8 LtAP LR8 LTE kit with LTE modem 2.4GHz access point

  • SKU: RBLtAP-2HnD&R11e-LTE&LR8
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎339.00

MikroTik RBLtAP-2HnD&R11e-LTE&LR8

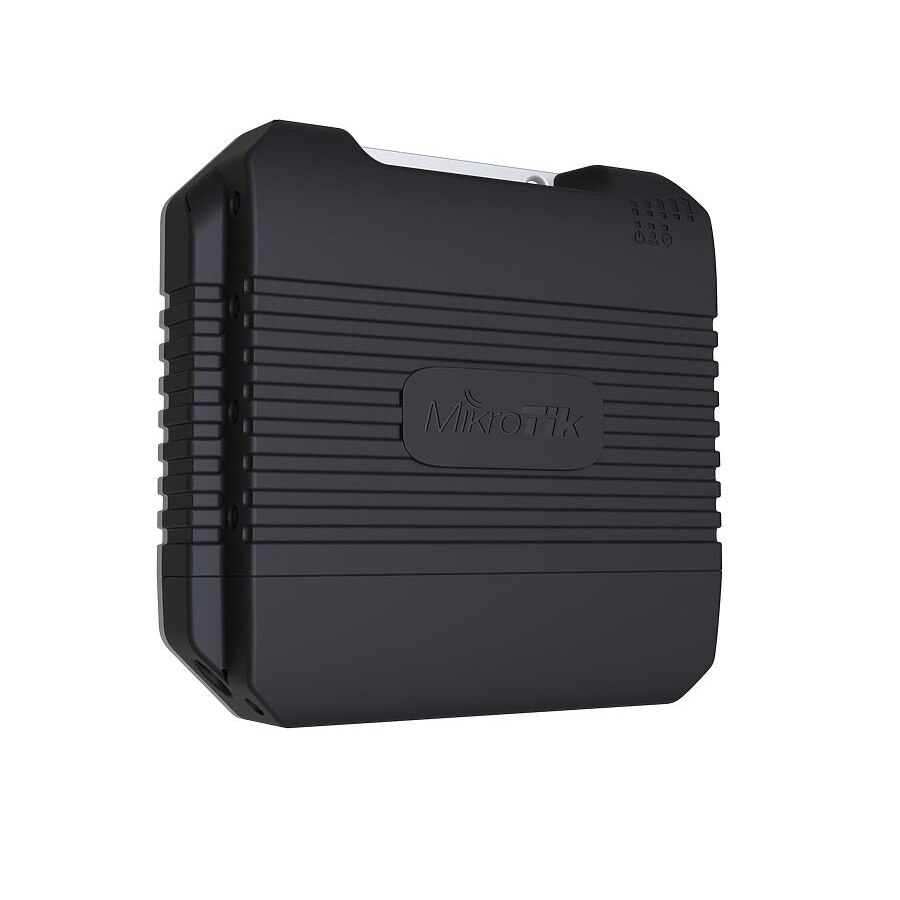

LtAP LR8 LTE kit a compact all-in-one solution with LTE, GPS and wireless support for LoRa® in a rugged heavy-duty case

Inside the heavy-duty case, there is a powerful 2.4 GHz wireless access point with a Gigabit Ethernet port, built-in GPS and two internal LTE antennas. There are two miniPCIe slots – one is used for the LTE modem, the other one is populated with the concentrator gateway card for LoRa® technology.

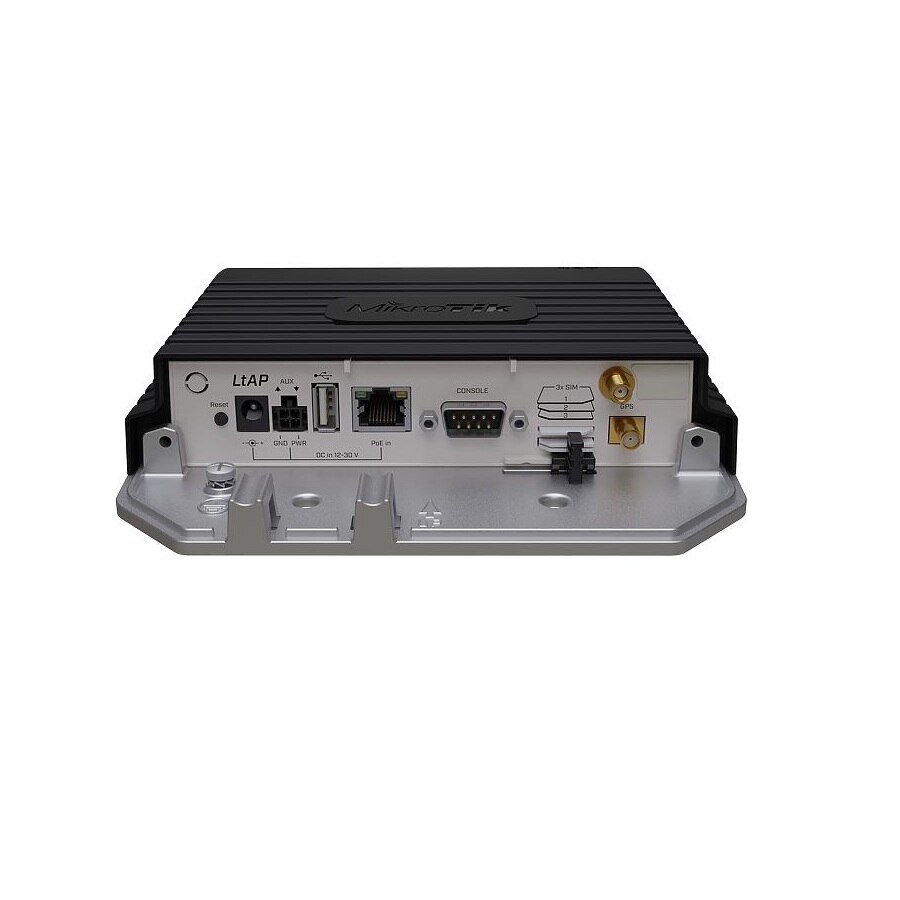

There are three powering options: DC jack, PoE-in and automotive. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!

Internet-of-things has never been so affordable

To fully understand what this device can do, we need to talk about Internet-of-things. Let’s start with an example. Imagine a farmer who has cattle, an irrigation system for the crops, and storage for the goods. On a day-to-day basis he needs to:

  • Track the animals
  • Monitor the grain stock level
  • Control the irrigation system

For all these tasks the farmer can use low-cost wireless sensors. By connecting them to the LtAP - he can gather the real-time data, combine it with the location information of the vehicle, and send it to the cloud via high-speed LTE. Now all the information he needs to monitor and plan the growth of his farms is in one place. So simple and so handy. The wireless technology behind this is called LoRa®, which stands for Long Range. It requires very low power. That’s why LoRa® is the best way to build your Internet-of-things solutions. LoRa® can be used for anything from smart homes to agriculture, supply chains, logistics and even smart cities. Monitor parking spaces, track utility services, measure environmental data and so on - the possibilities are endless.

There is even a free server infrastructure that you can use - The Things Network, fully supported by the LtAP LR8 LTE kit. With a large community of enthusiasts and developers around the world, you will never be alone with your questions regarding the LoRa® network.

Perfect for logistics and tracking

There are 3 MiniSIM slots you can use to set up automatic switching between mobile operators. Very convenient if you have to cross the border regularly. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same goes for the GPS – you can attach an external antenna as well. By the way, we have provided a simple application example on the RouterOS documentation website, so you can start real-time location tracking right away!

The Things Network

Our products for LoRa® are ready to work with “The Things Network” - the famous open source infrastructure that provides free LoRa® network coverage and has tons of apps for your needs. With the help of “The Things Network” you can get started with the Internetof- things within a day. And it is easily upgradable to enterprise-grade network “The Things Industries”.

The setup is so easy - anyone can learn it. No need to reinvent the wheel – join “The Things Network” to save time and energy with smart solutions!

Specifications RBLtAP-2HnD&R11e-LTE&LR8

ArchitectureMMIPS
CPUMT7621A
CPU core count2
CPU Threads count4
Dimensions170 x 162 x 40 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Suggested price$269.00
Powering
PoE inPassive PoE
PoE in input Voltage12-30 V
Number of DC inputs3 (Automotive, PoE-IN, DC jack)
DC jack input Voltage12-30 V
Automotive input Voltage12-27 V
Max power consumption24 W
Max power consumption without attachments9 W
FAN countPassive
Mobile
2G CategoryClass12
2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands38 (2600MHz) / 40 (2300MHz)
Wireless Spec
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2.5
Wireless 2.4 GHz chip modelAR9382
Wireless 2.4 GHz generationWi-Fi 4
Ethernet
10/100/1000 Ethernet ports1
Peripherals
Serial portRS232
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1
Other
PCB temperature monitorYes
Voltage MonitorYes
Certification & Approvals
CertificationCE, EAC, ROHS

Wireless Specifications
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s25-100
11MBit/s25-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
