MikroTik CRS354-48P-4S+2Q+RM (Tariffed) CRS354-48P-4S+2Q+RM(China) China Tariffed
Product Information

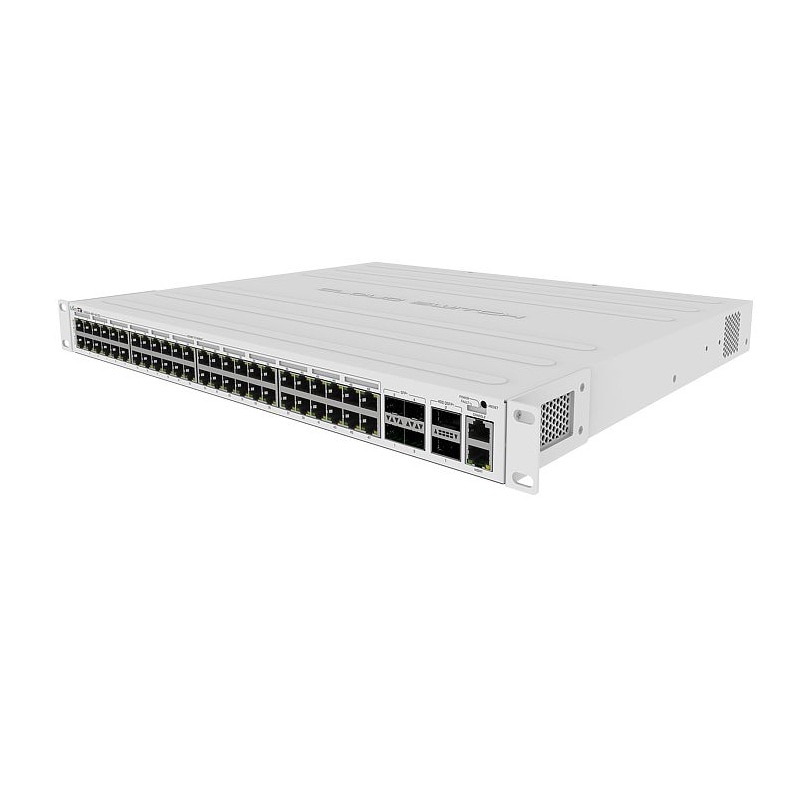

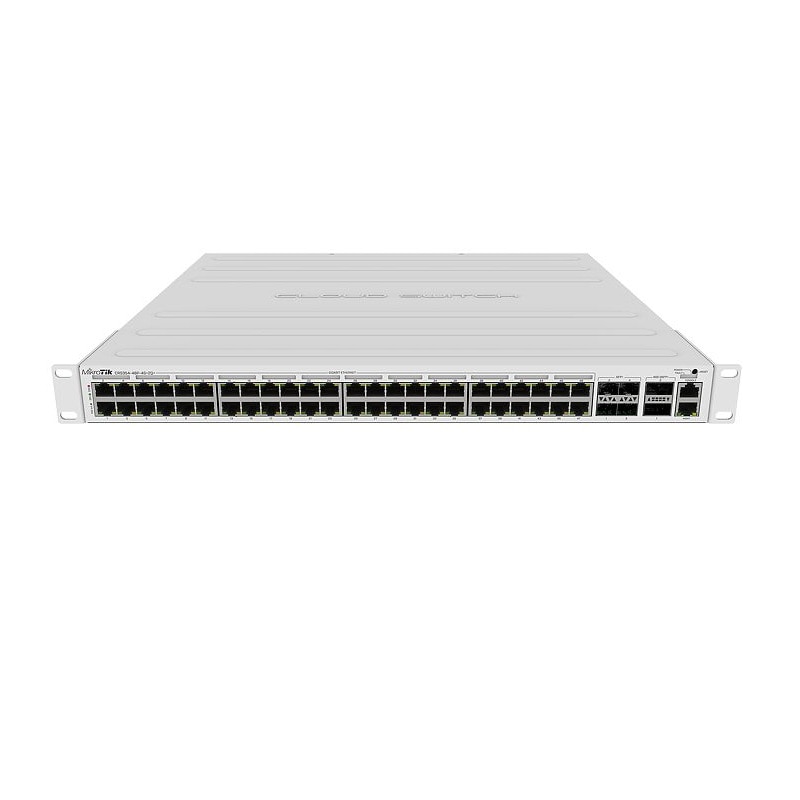

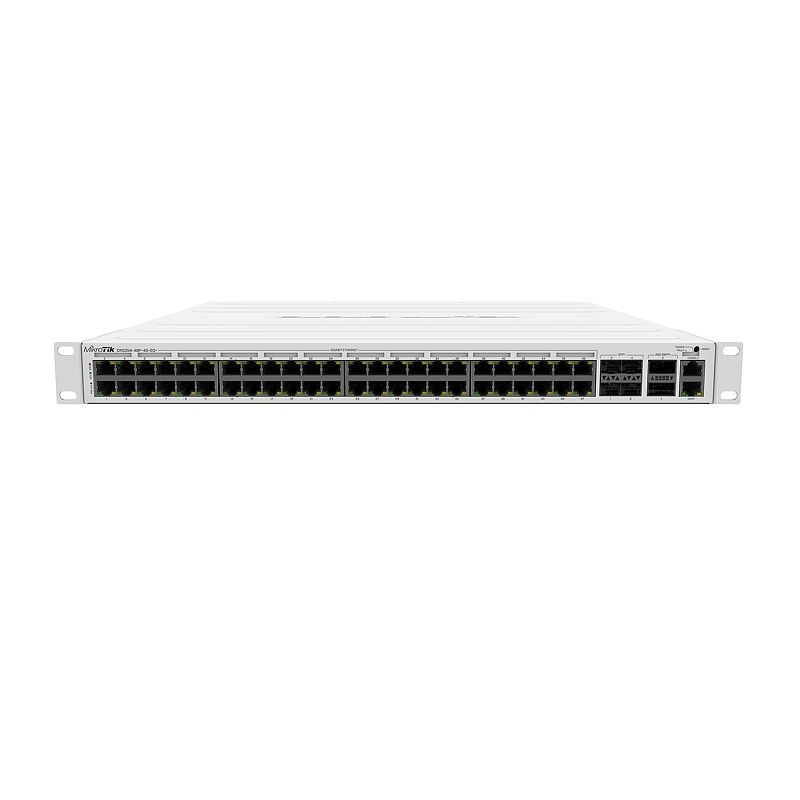

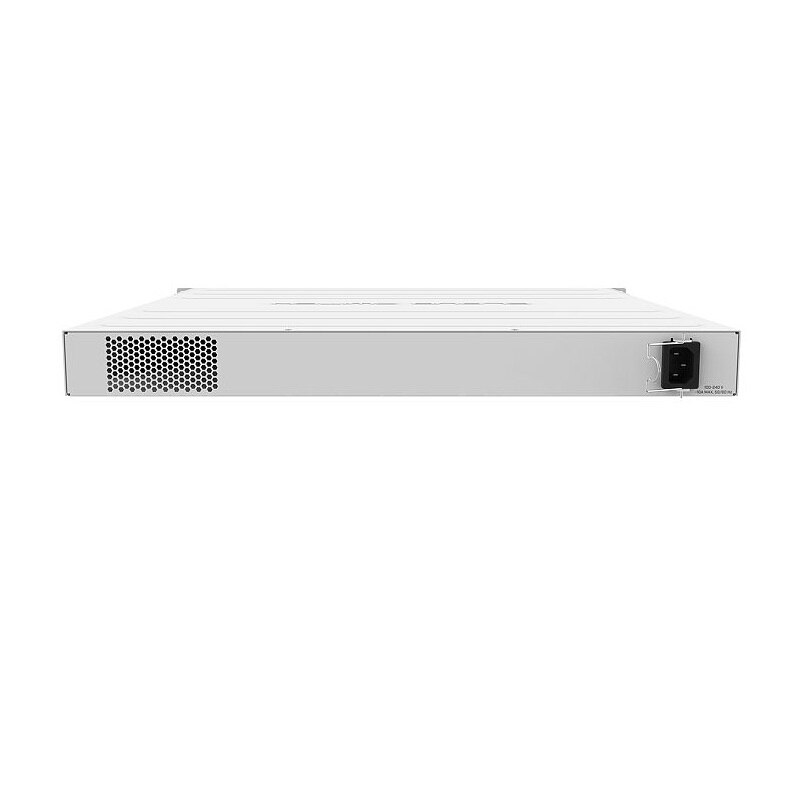

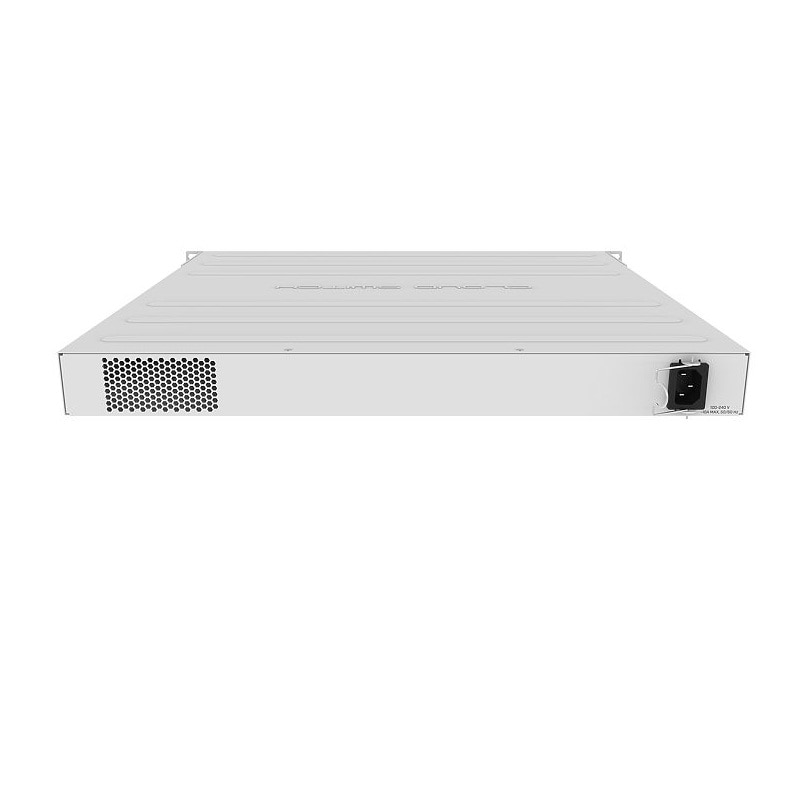

MikroTik RouterBOARD CRS354-48P-4S+2Q+RM (Tariffed)
The 48 port champion you’ve been waiting for - now with PoE-out!
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications
Specifications CRS354-48P-4S+2Q+RM
| CPU | QCA9531, 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB flash |
| Number of 100 Mbps Ethernet ports | 1 |
| Number of 1 GbE Ethernet ports | 48 |
| 10G SFP+ ports | 4 |
| 40G QSFP+ ports | 2 |
| Operating system | RouterOS (License level 5) |
| Supported input voltage | AC power supply 100 - 240 V |
| Serial port | RJ45 |
| Dimensions | 443 x 382 x 44 mm |
| Operating temperature | -20°C to +60°C |
| Powering | |
| PoE-out | IEEE 802.3at/af and 26 or 53 V Passive PoE |
| PoE-out ports | Ether1 - Ether48 |
| PoE-out max per port (low voltage 26 V) | 26 W |
| PoE-out max per port (high voltage 53 V) | 30 W |
| Max total out (low voltage 26 V) | 27 A |
| Max total out (high voltage 53 V) | 13.2 A |
| Max power consumption | 800 W |
| Max power consumption without attachments | 85 W |
