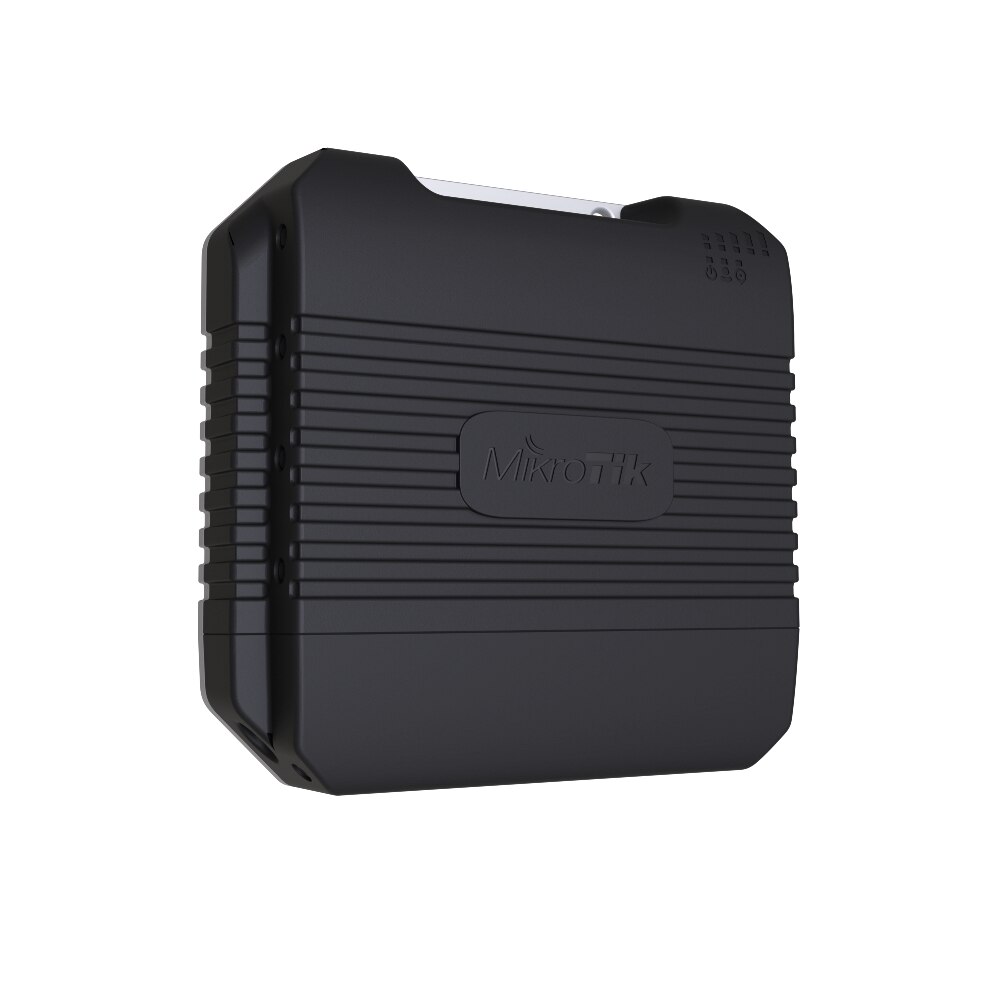

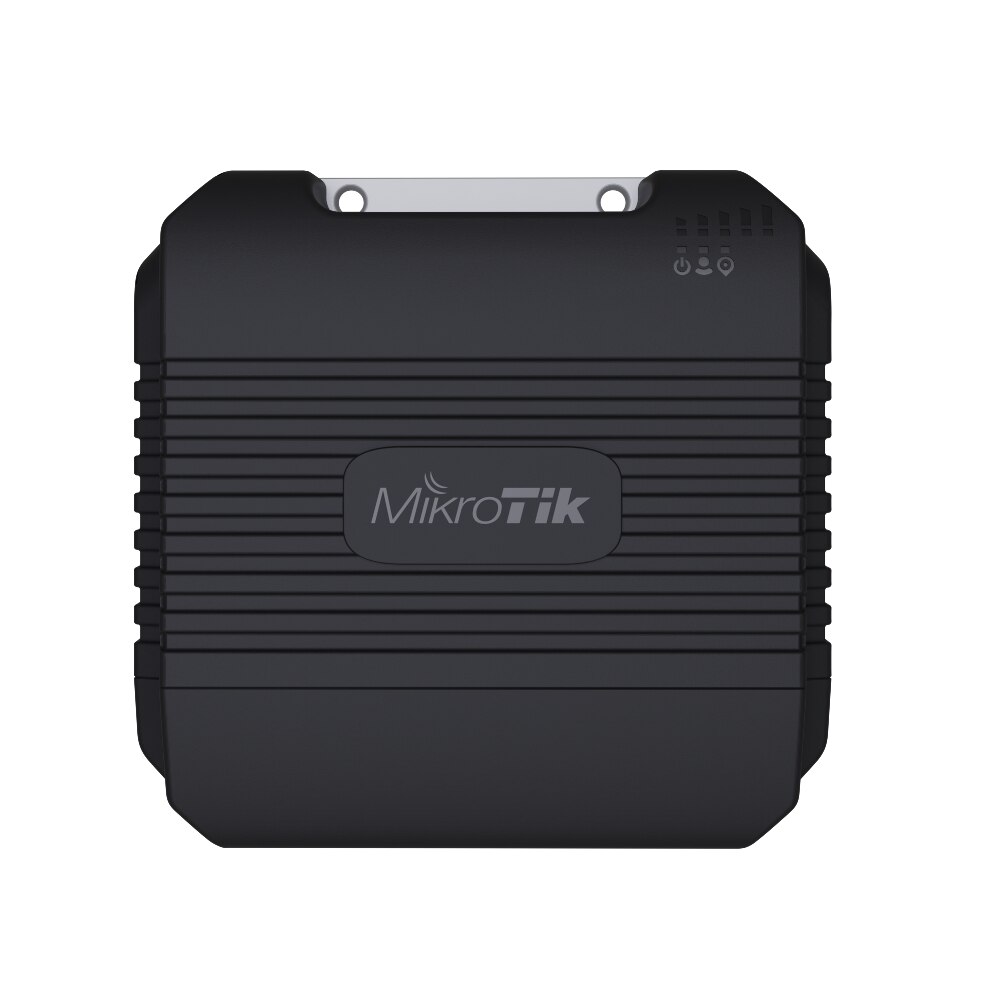

MikroTik LtAP LTE6 kit 2.4 GHz Wireless Access Point Dual-core MT7621AT 880 MHz, 2.5 dBi, RouterOS v7 only, License level 4
- SKU: LtAP-2HnD&FG621-EA
Product Information
MikroTik RouterBOARD LtAP-2HnD&FG621-EA
LtAP LTE6 kit 2.4 GHz Wireless Access Point Dual-core MT7621AT 880 MHz, 2.5 dBi, RouterOS v7 only, License level 4
A compact heavy-duty LTE access point with a built-in GPS. Add extensive networking and tracking options to your vehicle without breaking the bank! 3 MiniSIM slots, multiple powering options, extra miniPCI-e slot, console port.
In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.
Perfect for logistics and tracking
There are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.
Customize – and achieve even more!
LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!
Our latest Cat6 LTE modem – cut costs, not speed
This LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation.
Features:
- All-In-One: High Speed Lte, Gps, 2.4 Ghz Wireless
- Many Powering Options, Including Automotive
- Extreme Versatility With The Powerful Routeros V7
- Rugged Heavy-Duty Weatherproof Case
- Console Port For Easy Configuration
- Gigabit Ethernet With Passive Poe-In
- 3 Minisim Slots – Perfect For Roaming
Specifications
Specifications LtAP-2HnD&FG621-EA
CPU | Dual-core MT7621AT 880 MHz | |||
CPU architecture | MMIPS | |||
Size of RAM | 128 MB | |||
RAM type | DDR3 | |||
Storage | 16 MB, Flash | |||
Number of 1G Ethernet ports | 1 | |||
MiniPCIe slots | 2 | |||
SIM slots | 3 | |||
USB port | 1 USB 2.0 port type A | |||
Wireless interface model | AR9382 | |||
Wireless | 802.11b/g/n dual-chain | |||
Antenna gain | 2.5 dBi | |||
GNSS | GPS / GLONAS / Galileo / Beidou | |||
LTE modem | R11eL-FG621-EA | |||
TAC | 86335904 | |||
LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) | |||
MIMO DL | 2x2 | |||
MIMO UL | 1x1 | |||
LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) /28 (700 MHz) | |||
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) | |||
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) | |||
3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) | |||
Dimensions | 170 x 162 x 40 mm (6.69 x 6.37 x 1.57 inch) | |||
Operating system | RouterOS v7 only, License level 4 | |||
Operating temperature | -40°C to +70°C | |||
Certification & Approvals | ||||
Certification | CE, FCC, IC, E-MARK, EAC, ROHS | |||
IP | IP54 | |||
Powering | ||||
Number of DC inputs | 3 (PoE-In, Automotive, DC jack) | |||
PoE-In input Voltage | 12-30 V | |||
PoE-In Max current at Min voltage | 1.48 A | |||
PoE-In Max current at Max voltage | 0.59 A | |||
Automotive input Voltage | 12-27 V | |||
Automotive Max current at Min voltage | 1.31 A | |||
Automotive Max current at Max voltage | 0.59 A | |||
DC jack input Voltage | 12-30 V | |||
DC jack Max current at Min voltage | 1.31 A | |||
DC jack Max current at Max voltage | 0.59 A | |||
Power adapter nominal voltage | 24 V | |||
Power adapter nominal current | 1.2 A | |||
PoE-In | Passive PoE | |||
Max power consumption without attachments | 12 W | |||
Max power consumption | 24 W | |||
Supported 2xCA LTE bands | 1+1/3/5/7/8/20/28 | 3+3/5/7/8/20/28 | 5+5/7 | 7+7/8/20/28 |
40+40 | 8+8 | 38+38 | 41+41 |
Wireless specifications | ||
Rate (2.4 GHz) | Tx (dBm) | Receive Sensitivity |
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
