MikroTik ±48V Open frame Power supply with 12V 7A output, for new r2 CCR revisions

  • SKU: PW48V-12V85W
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • Availability: 1 In Stock (updated live)
$49.00

Specifications PW48V-12V85W

Input -48 V, 3 A
Output 12 V, 7 A
Operating temperature -20°C .. +60°C
Dimensions 118 x 52 mm

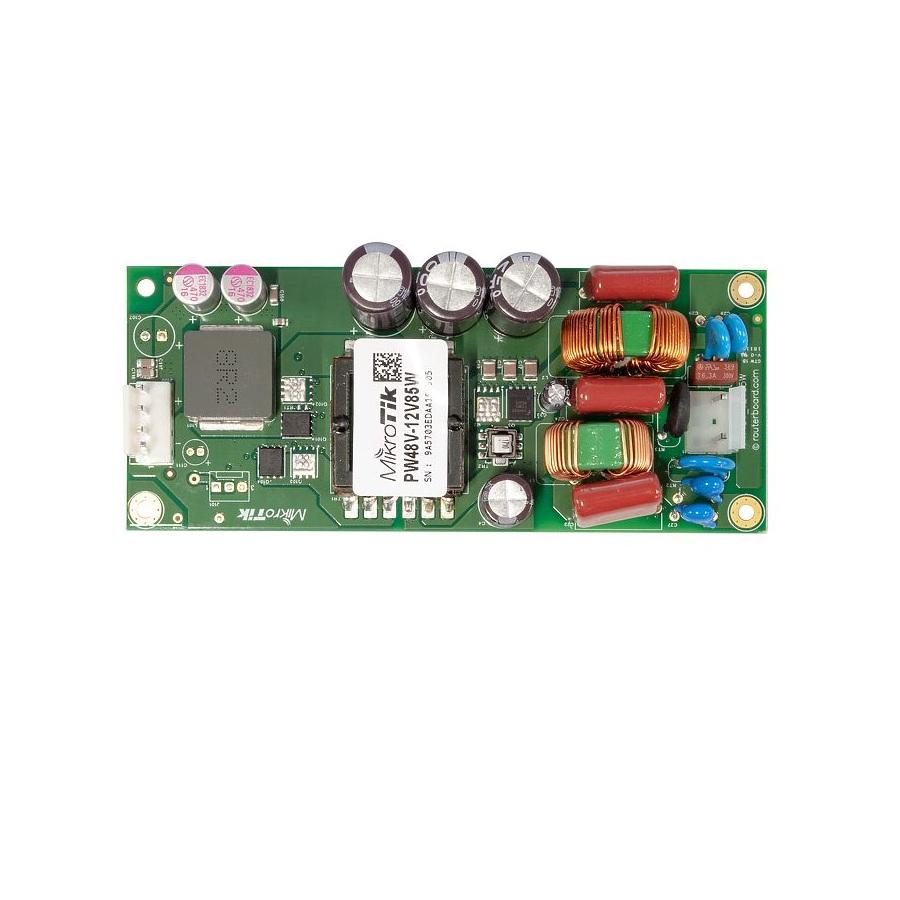

MikroTik RouterBOARD PW48V-12V85W

±48V Open frame Power supply with 12V 7A output, for new r2 CCR revisions

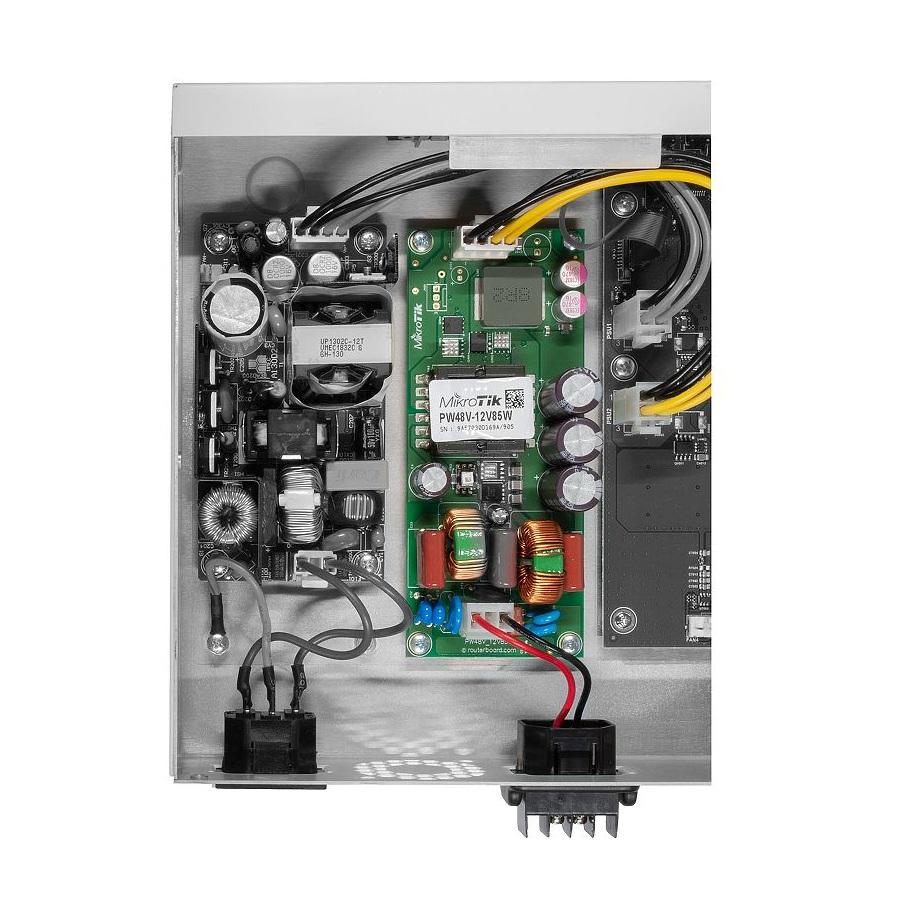

±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with new “r2” revision of Cloud Core Routers or the new CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.

Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).
