Mikrotik RB800 800MHz CPU, 256MB RAM, 3x Gigabit Ethernet, 4x miniPCI, USB, RouterOS L6
- SKU: RB800
Product Information

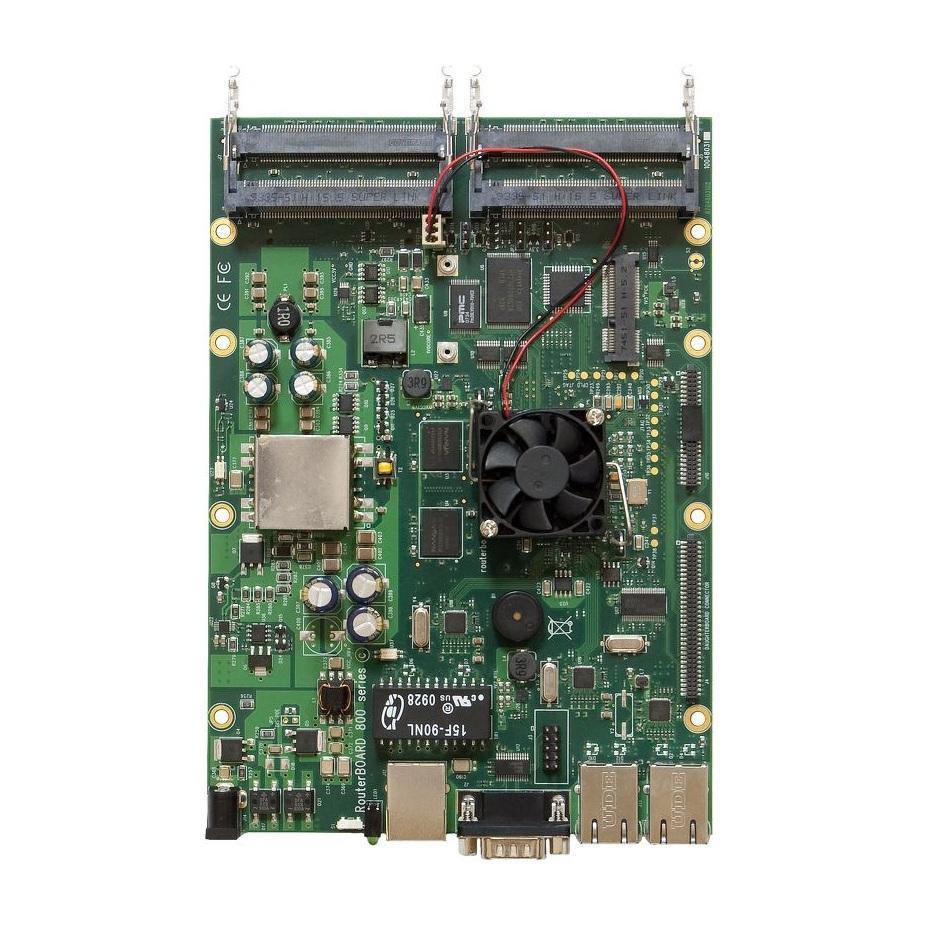

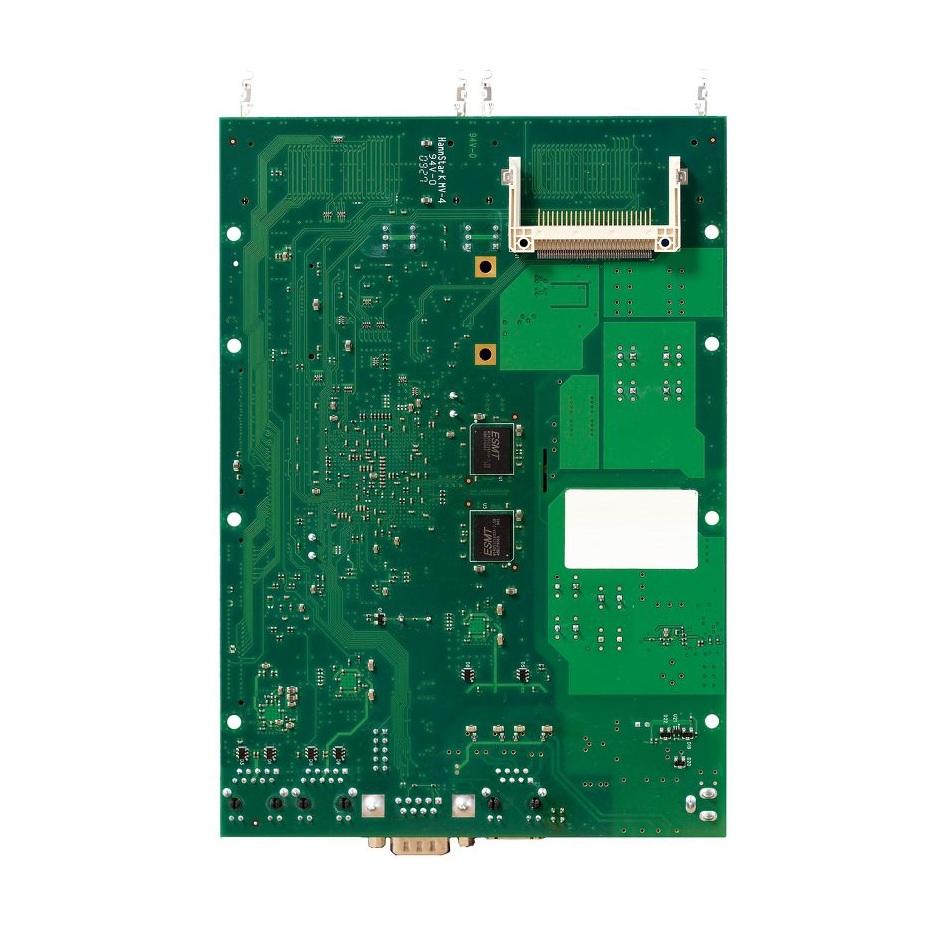

MikroTik RouterBOARD RB800
800MHz CPU, 256MB RAM, 3x Gigabit Ethernet, 4x miniPCI, USB, RouterOS L6
Product is EOL and here is suggested alternative RBM33G
The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot.
The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.
RB800 has daughterboard connector, so you have a lot of expansion possibilities. You can buy RB502 to add two miniPCI slots, RB604 to add four miniPCI slots or RB816 to add 16 Ethernet ports!
This is the new definition of wireless networking power. Combined with RouterOS - RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager.
Features:
- 800MHz CPU
- 3 x 10/100/100 Gigabit Ethernet Auto MDI-X Ports
- 256MB DDR SDRAM / NAND Storage
- 4 x miniPCI Slots, 1x miniPCI-e
- 48Vdc 802.3af PoE Compliant
- 38-56Vdc Passive PoE / 10-56Vdc Power Jack
- Size: 140mm x 200mm (5.5in x 7.87in)
- RouterOS v4 & Level 6 License Included!
Specifications
Specifications RB800
| CPU | MPC8533EVTALF |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 14cmx20cm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -60°C .. +70°C tested |
| Max Power consumption | 15W |
| PoE in | 802.3af/at |
| 802.3af support | Yes |
| PoE in input Voltage | 38-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| 10/100/1000 Ethernet ports | 3 |
| Memory card type | CF |
| Memory Cards | 1 |
| MiniPCI slots | 4 |
| MiniPCI-e slots | 1 |
| Serial port | RS232 |
