MikroTik RBLHG5kit-US LHG 5 (US Version 3-Pack)

(0)No Reviews yet
  • SKU: RBLHG5kit-US
Inclusive of US$10.58 Tariff/Surcharge Fee
2 in stock
College Station
2 In stock

Product Information

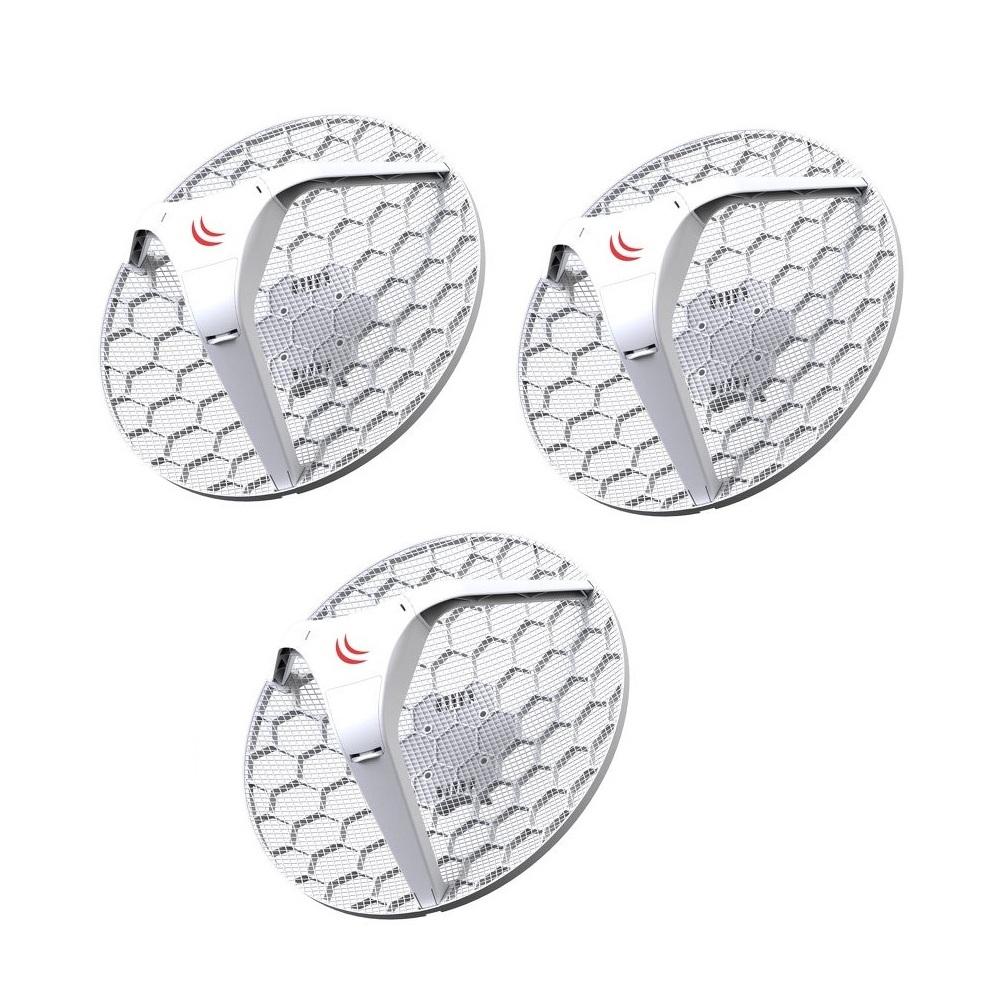

MikroTik RouterBOARD RBLHG-5nD-3-US (3-pack)

LHG 5 Wireless Device With Integrated 24.5 dBi Grid Antenna U.S. Version

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

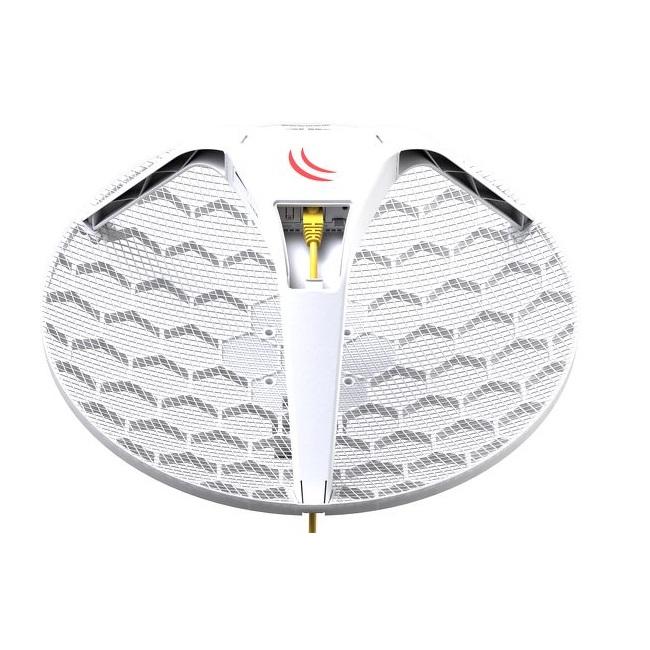

The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.


Specifications RBLHG-5nD-3-US

Product codeRBLHG-5nD-US
CPU nominal frequency600 MHz
Size of RAM64 MB
Storage typeFlash
Storage size16 MB
10/100 Ethernet ports1
WirelessBuilt-in 5 GHz 802.11a/n, dual-chain
Wireless chip modelAR9344
Operating frequencyUSA 5170 - 5250 MHz 5725 - 5835 MHz
Antenna gain24.5 +/- 0.5 dBi
Antenna beam width
PoE inYes
Supported input voltage11 V - 30 V (passive PoE)
Wind Survivability205 km/h
Wind Loading186N @ 205 km/h
Cross polar15 dBi
Port to port isolation20 dB
Front to back ratio25 dB
Operating Temperature-40 to 70° C
Operating Humidity5 to 95% noncondensing
Shock and VibrationETSI300-019-1.4
ETSI specificationEN 302 326 DN2
DimensionsØ 391 x 222 mm; package 450 x 450 x 145 mm
WeightUnit: 560 g; package: 1.98 kg
Max Power consumption6 W
Wireless specifications
RATETx (dBm),width="45%">Rx (dBm)
