MikroTik RBLHGR&R11e-LTE6 LHG LTE6 kit 17dBi 25° antenna, single SIM, 650MHz CPU
- SKU: RBLHGR&R11e-LTE6
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
MikroTik RouterBOARD RBLHGR&R11e-LTE6
LHG LTE6 kit, 17dBi 25° antenna, single SIM, 650MHz CPU

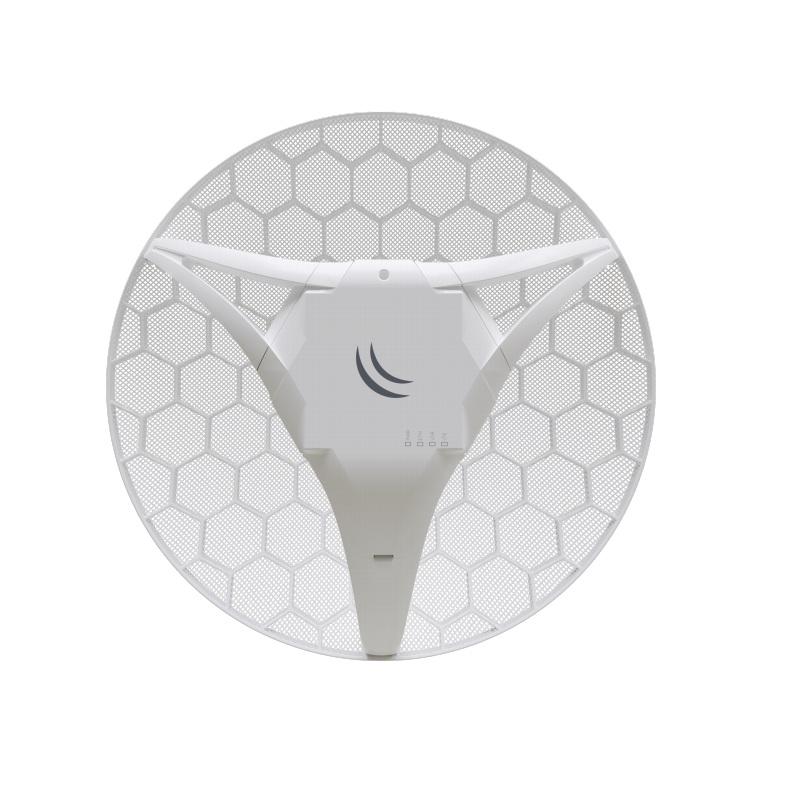

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

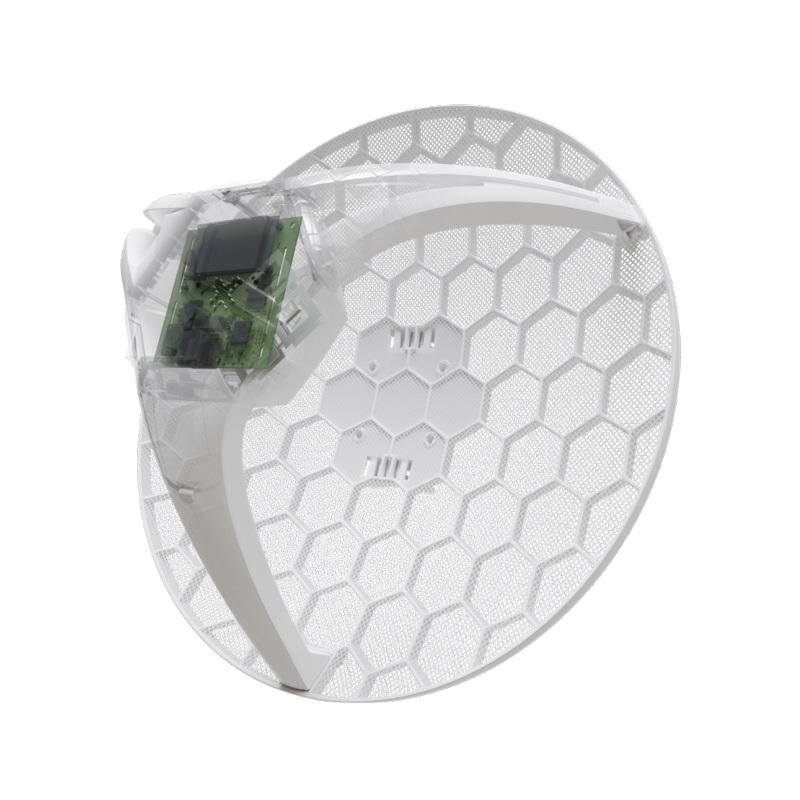

The grid design ensures protection against wind, the antenna element is built into the wireless unit – no loss on cables. Choose LHG LTE6 kit and always be connected!
Specifications
Specifications RBLHGR&R11e-LTE6
| CPU QCA9531 | 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB flash |
| LTE antenna gain | 17 dBi |
| Antenna beam width | 25° |
| LTE category | 6 (300 Mbps downlink, 50 Mbps uplink) |
| 3G category | R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink) |
| 2G category | Class12 |
| Mini SIM slot | 1 |
| PoE in | Passive PoE, 802.3af/at |
| Supported input voltage | 12 - 57 V |
| Dimensions | 391 x 391 x 227 mm |
| Operating ambient temperature | -40°C .. +60°C |
| License level | 3 |
| Max power consumption | 6 W |
| Supported bands | |
| LHG LTE6 kit | |
| LTE (FDD) bands | 1(2100)/2(1900)/3(1800)/5(850)/7(2600)/8(900)/12(700)/17(700)/20(800)/25(1900)/ |
| 26(850) | |
| LTE (TDD) bands | 38(2600)/39(1900)/40(2300)/41n(2500) |
| 3G bands | 1(2100)/2(1900)/5(850)/8(900) |
| 2G bands | 2(1900)/3(1800)/5(850)/8(900) |
