Product Information

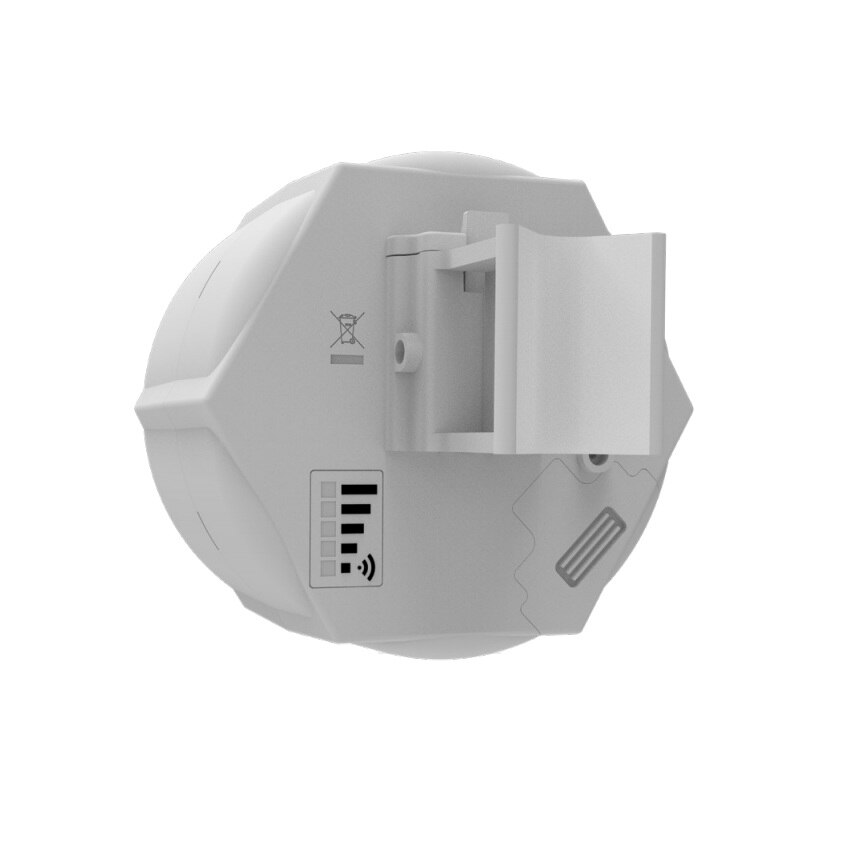

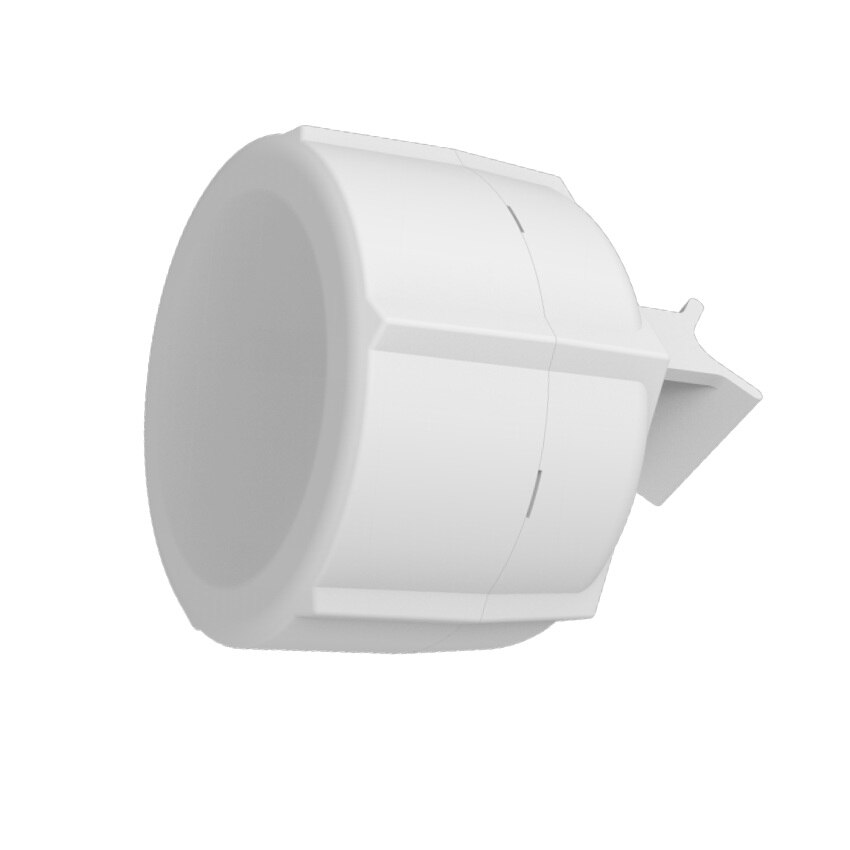

MikroTik RouterBOARD RBSXTR&R11e-LTE-US (US Version)
MikroTik SXT LTE kit with enclosure RouterOS L3
These products will not work on Verizon’s US network outside large metro areas because they do not run Band 13. They are also not certified on Verizon so use them at your own risk. Check with your cellular provider before using on that carrier’s network.
The SXT LTE kit (product code RBSXTR&R11e-LTE-US) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant
The device has a built in high quality 3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
Specifications
Specifications RBSXTR&R11e-LTE-US
| Product code | RBSXTR&R11e-LTE-US |
| CPU | QCA9531 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB Flash |
| 10/100 Ethernet ports | 2 |
| LTE antenna gain | 9 dBi |
| Antenna beam width | 60° |
| LTE category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| 3G category | R8 (Cat24 - 42.2Mbps Downlink) R7 (Cat14 - 21.1Mbps Downlink) |
| 2G category | Class12 - |
| SIM slot | 2 (Micro SIM) |
| PoE in | Yes, on Ether1 |
| PoE out | Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA max total out (A): 600 mA |
| Supported input voltage | 18 - 57 V (Passive PoE, 802.3af/at on Ether2) |
| Dimensions | 140 x 140 x 103 mm |
| Operating temperature | -40°C .. +60°C tested |
| License level | 3 |
| Operating System | RouterOS |
| Max Power consumption | 6 W |
| Supported Bands | RBSXTR&R11e-LTE-US |
| LTE (FDD) bands | 2(1900)/4(1700)/5(850)/12(700) |
| 3G bands | 2(1900)/5(850) |
