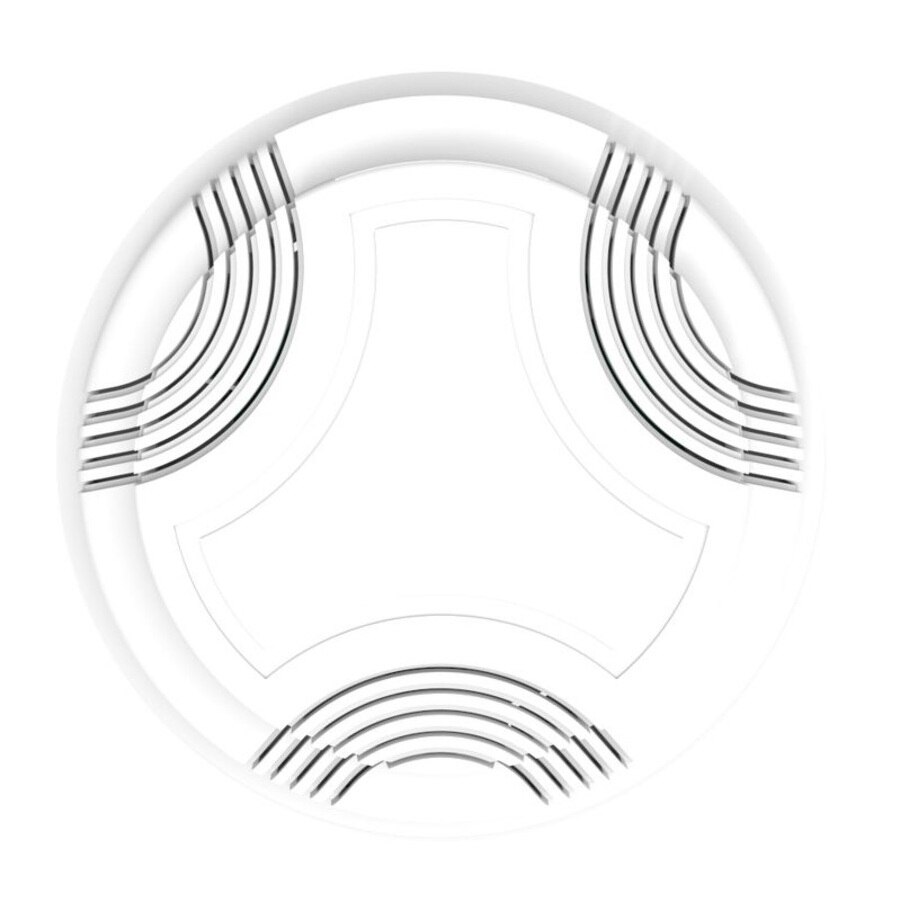

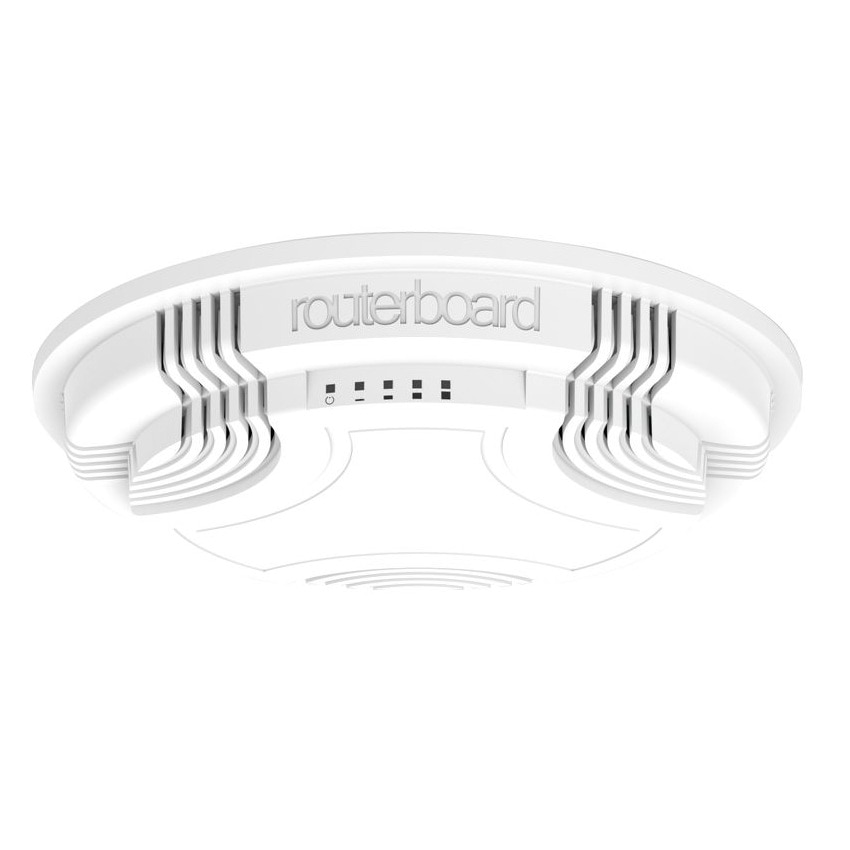

MikroTik cAP 2.4GHz Ceiling AP

(0) No Reviews yet
  • SKU: RBcAP2nD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: Please Contact Us for AvailabilityEmail me when this product is in stock!

Specifications RBcAP2nD

Product code RBcAP2nD
CPU QCA9533 650 MHz
Memory 64 MB
Storage type Flash
Storage size 16 MB
Ethernet One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
Wireless Wireless Built-in 2.4 GHz 802.11b/g/n, dual chain
Power options Passive PoE input 11-57 V
Consumption 4W
Dimensions ⌀ 185mm, height: 31mm
Operating temperature -40°C .. +70°C tested
LEDs 5x LEDs, 1x user LED
License level 4
Operating system RouterOS
Antenna gain 2 dBi

MikroTik RouterBOARD RBcAP2nD

MikroTik cAP-2nD 2.4GHz Ceiling AP

RouterBOARD cAP-2n is our first 2.4GHz ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2n supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.


  • PoE in 11-57V
  • Built in 2.4GHz AP
  • Station or AP mode wireless
  • AR9533 650 MHz CPU
  • 64 MB RAM
  • Dual Chain
  • Output power up to 158 mW
  • Any type PoE input 802.3af and 802.3at
  • Passive PoE output (same as input voltage)
  • RouterOS, level 4 license
