Mikrotik Small dual-band 2.4 / 5GHz white weatherproof wireless access point for mounting

US$‎89.00
Tariff Fee: US$4.65
  • SKU: RBwAPG-5HacD2HnD
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • User Guide: Download
  • Block Diagram: Download
  • Availability: 59 In Stock    (updated live)
US$‎89.00

Specifications RBwAPG-5HacD2HnD

ArchitectureARM 32bit
CPUIPQ-4018
CPU core count4
CPU nominal frequency716 MHz
Dimensions185 x 85 x 30 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Wireless capabilities
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2.5
Wireless 2.4 GHz chip modelIPQ-4018
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2.5
Wireless 5 GHz chip modelIPQ-4018
Wireless 5 GHz generationWi-Fi 5
AC speedAC1200
Ethernet
10/100/1000 Ethernet ports2
Powering
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage10-57 V
Max power consumption10 W
Max power consumption without attachments9 W
FAN countPassive
PoE in802.3af/at
PoE in input Voltage18-57 V
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS
IPIP54
Other
PCB temperature monitorYes
Voltage MonitorYes

Wireless specifications
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 25-100
11MBit/s25-94
6MBit/s25-96
54MBit/s19-78
MCS025-96
MCS718-73
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s24-96
54MBit/s20-80
MCS024-96
MCS719-75
MCS917-70

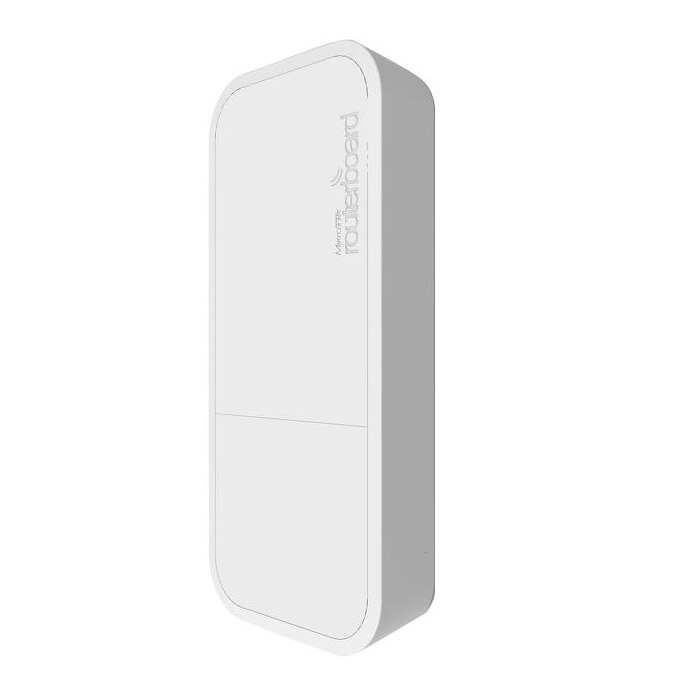

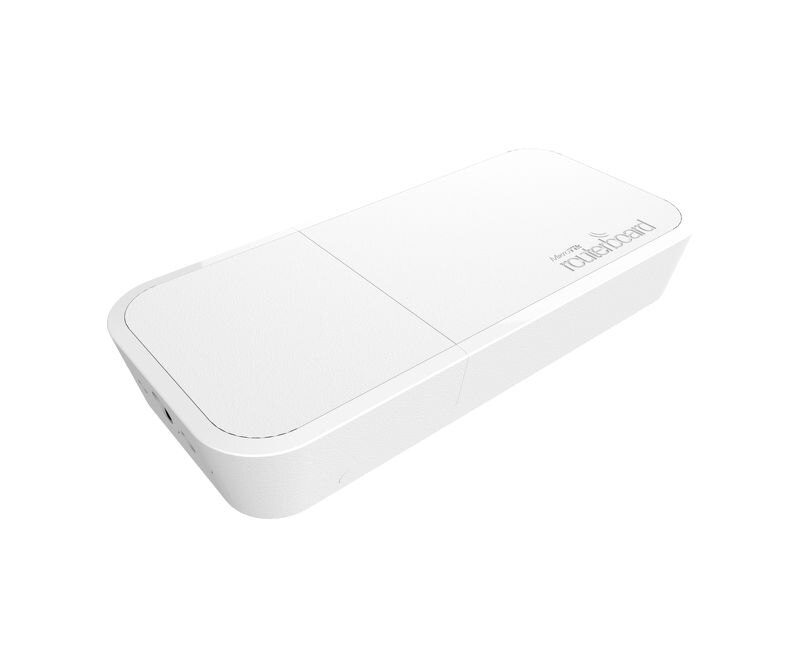

MikroTik RouterBOARD RBwAPG-5HacD2HnD (International Version)

2.4/5GHz wAP ac 3x3 White Outdoor Access Point

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch, or anywhere else where you need a capable wireless connection. The new revision features 2x Gigabit Ethernet ports, enhanced wireless antenna performance, more RAM, and a powerful quad-core CPU!

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else since this frequency is less cluttered.

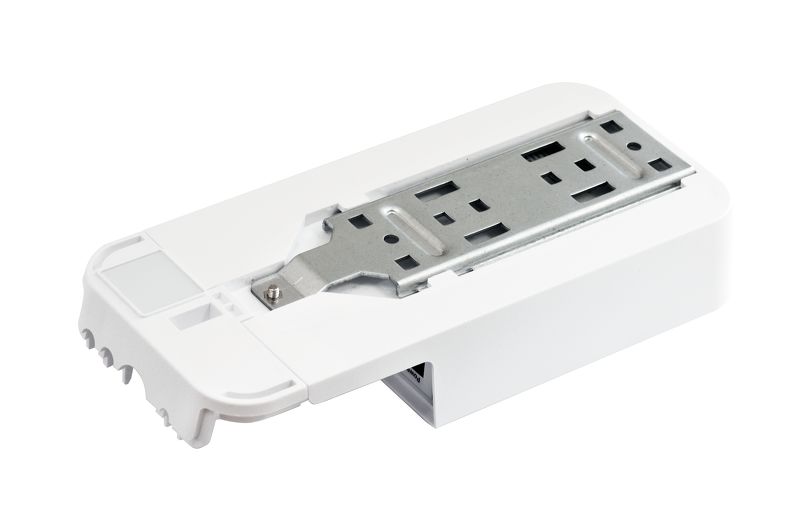

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner.

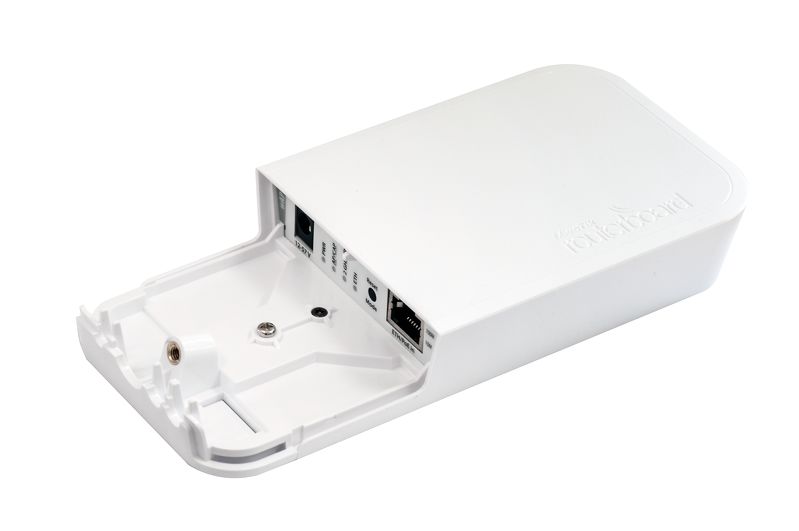

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP ac attracts less attention and blends into any environment.It looks unobtrusive and sleek.
