MikroTik RBwAPGR-5HacD2HnD wAP R ac 2.4-5GHz Dual-Band Wireless AP (without LTE Card)
Product Information

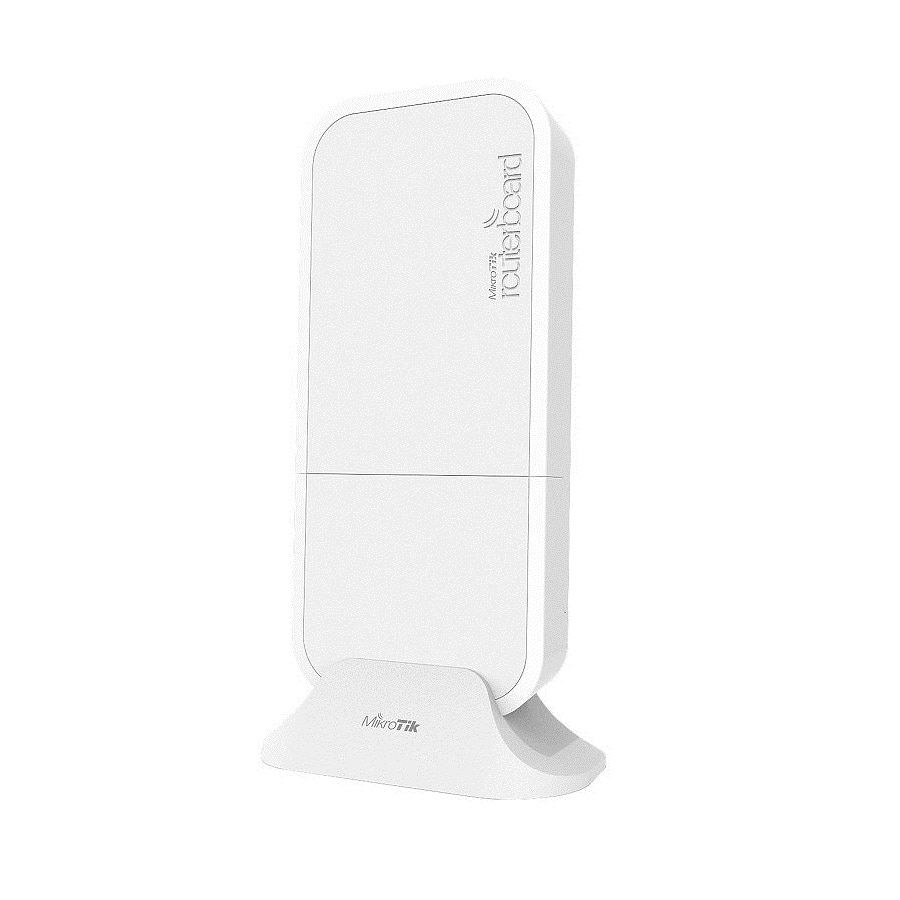

MikroTik RouterBOARD RBwAPGR-5HacD2HnD
wAP R ac 2.4-5GHz Dual-Band Wireless AP (without LTE Card)
A small package with a huge ambition – the wAP ac R is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. Enjoy wireless experience anywhere – indoors or outdoors! wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C and can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included).
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.
Specifications
Specifications RBwAPGR-5HacD2HnD
CPU | Quad-core IPQ-4018 716 MHz |
Size of RAM | 128 MB |
Storage | 16 MB flash |
10/100/1000 Ethernet ports | 2 |
Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
Wireless regulations | Specific frequency range will be limited by country regulations |
Wireless antenna max gain | 2.5 dBi |
LTE antenna max gain | 4 dBi (with u.FL connector) |
Antenna beam width | 360° |
Micro SIM slot | 1 |
Supported input voltage | DC jack 10 - 57 V |
PoE in | Passive PoE 18-57V or active 802.3af/at |
Dimensions | 185 x 85 x 30 mm |
Operating temperature | -30°C .. +60°C |
Operating system | RouterOS, License level 4 |
MiniPCIe slots | 1 |
Max Power consumption | 11 W |
Wireless specifications | ||
Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
1MBit/s | 22 | -100 |
11MBit/s | 22 | -94 |
6MBit/s | 23 | -95 |
54MBit/s | 19 | -78 |
MCS0 | 23 | -95 |
MCS7 | 18 | -73 |
6MBit/s | 24 | -96 |
54MBit/s | 20 | -80 |
MCS0 | 24 | -96 |
MCS7 | 19 | -75 |
MCS9 | 17 | -70 |
