MikroTik RBwAPGR-5HacD2HnD&R11e-4G-US wAP ac 4G kit Small weatherproof Dual Band 2.4 / 5 GHz wireless access point (US Version)
- SKU: RBwAPGR-5HacD2HnD&R11e-4G-US
Product Information
MikroTik RouterBOARD RBwAPGR-5HacD2HnD&R11e-4G-US (US Version)
wAP ac 4G kit Small weatherproof Dual Band 2.4 / 5 GHz wireless access point with LTE antennas and modem for International/USA bands 3, 7, 20, 31, 41n, 42 and 43

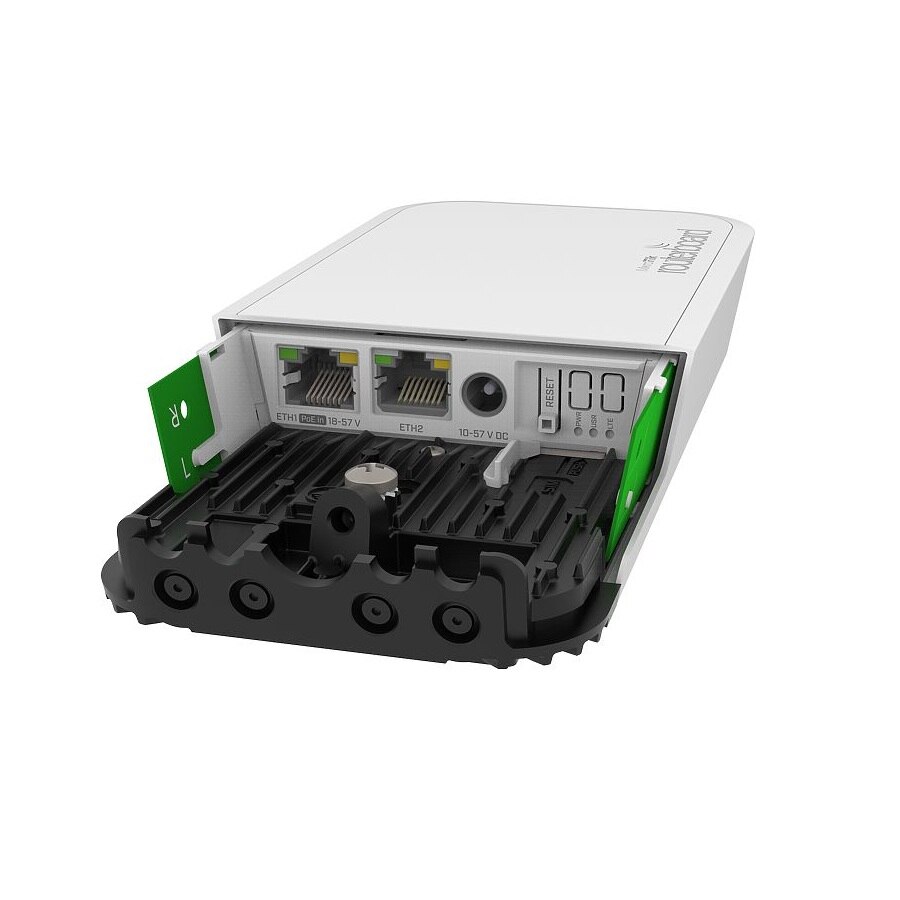

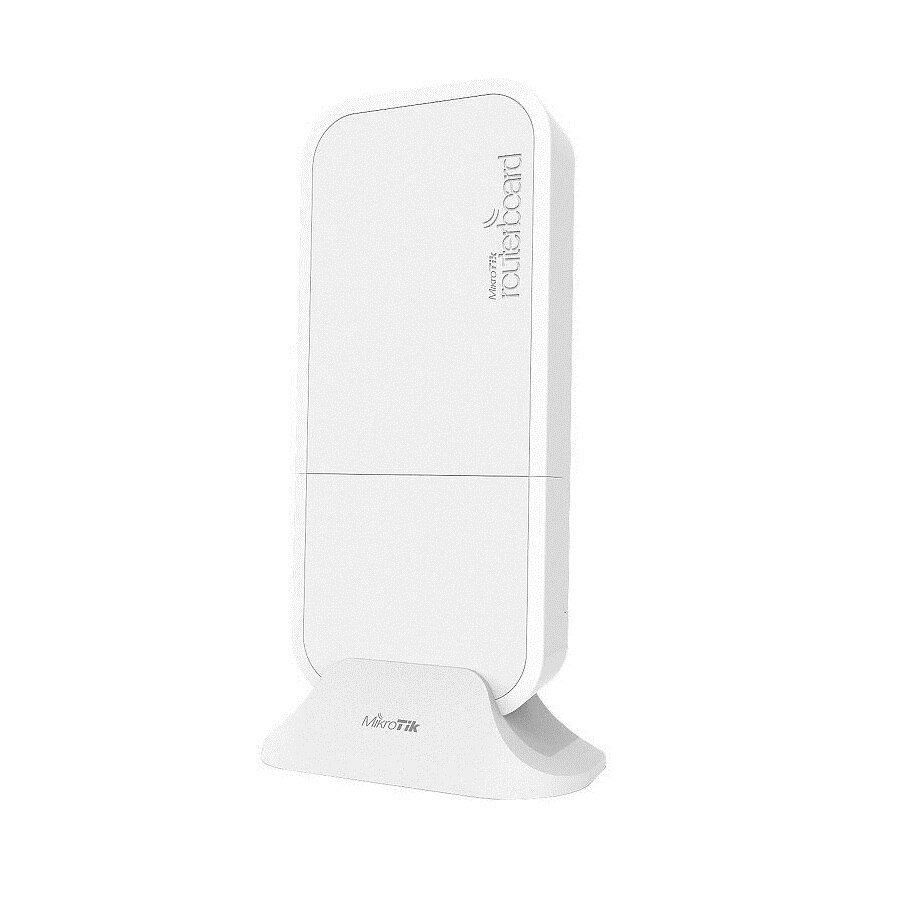

A small package with a huge ambition – the wAP ac 4G is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac 4G is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C and can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
RBwAPGR-5HacD2HnD&R11e-4G includes LTE modem that supports International/USA LTE bands FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac 4G will meet most demands without making sacrifices.
Specifications
Specifications RBwAPGR-5HacD2HnD&R11e-4G-US
CPU | Quad-core IPQ-4018 716 MHz |
Size of RAM | 128 MB |
Storage | 16 MB flash |
10/100/1000 Ethernet ports | 2 |
Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
Wireless regulations | Specific frequency range will be limited by country regulations |
Wireless antenna max gain | 2.5 dBi |
LTE antenna max gain | 4 dBi (with u.FL connector) |
Antenna beam width | 360° |
LTE category | 4 (150 Mbps Downlink, 50 Mbps Uplink) |
Micro SIM slot | 1 |
Supported input voltage | DC jack 10 - 57 V |
PoE in | Passive PoE 18-57V or active 802.3af/at |
Dimensions | 185 x 85 x 30 mm |
Operating temperature | -30°C .. +60°C |
Operating system | RouterOS, License level 4 |
MiniPCIe slots | 1 |
Max Power consumption | 14 W |
Supported bands | |
RBwAPGR-5HacD2HnD&R11e-LTE | |
LTE (FDD) bands | 3/7/20/31 (1800/2600/800/450) |
LTE (TDD) bands | 41n/42/43 (2500/3500/3700) |
Wireless specifications | ||
Rate (2.4 GHz) | Tx (dBm) | Rx (dBm) |
1MBit/s | 22 | -100 |
11MBit/s | 22 | -94 |
6MBit/s | 23 | -95 |
54MBit/s | 19 | -78 |
MCS0 | 23 | -95 |
MCS7 | 18 | -73 |
6MBit/s | 24 | -96 |
54MBit/s | 20 | -80 |
MCS0 | 24 | -96 |
MCS7 | 19 | -75 |
MCS9 | 17 | -70 |
