Product Information
MikroTik RouterBOARD RBwAPR-2nD
wAP R 2dBi 2.4GHz Weatherproof Wireless Access Point
These products will not work on Verizon’s US network outside large metro areas because they do not run Band 13. They are also not certified on Verizon so use them at your own risk. Check with your cellular provider before using on that carrier’s network.

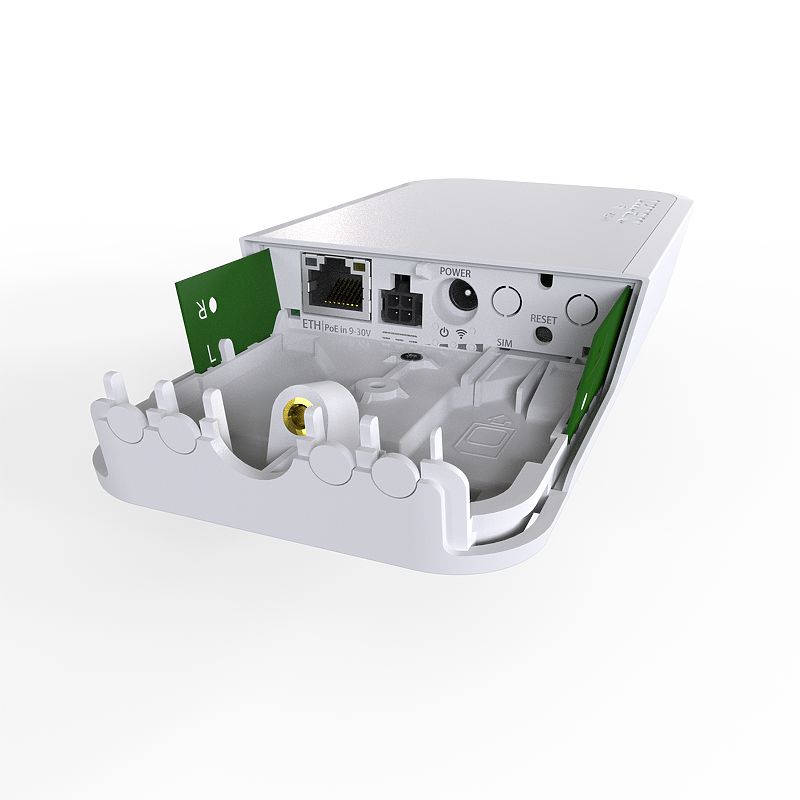

The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

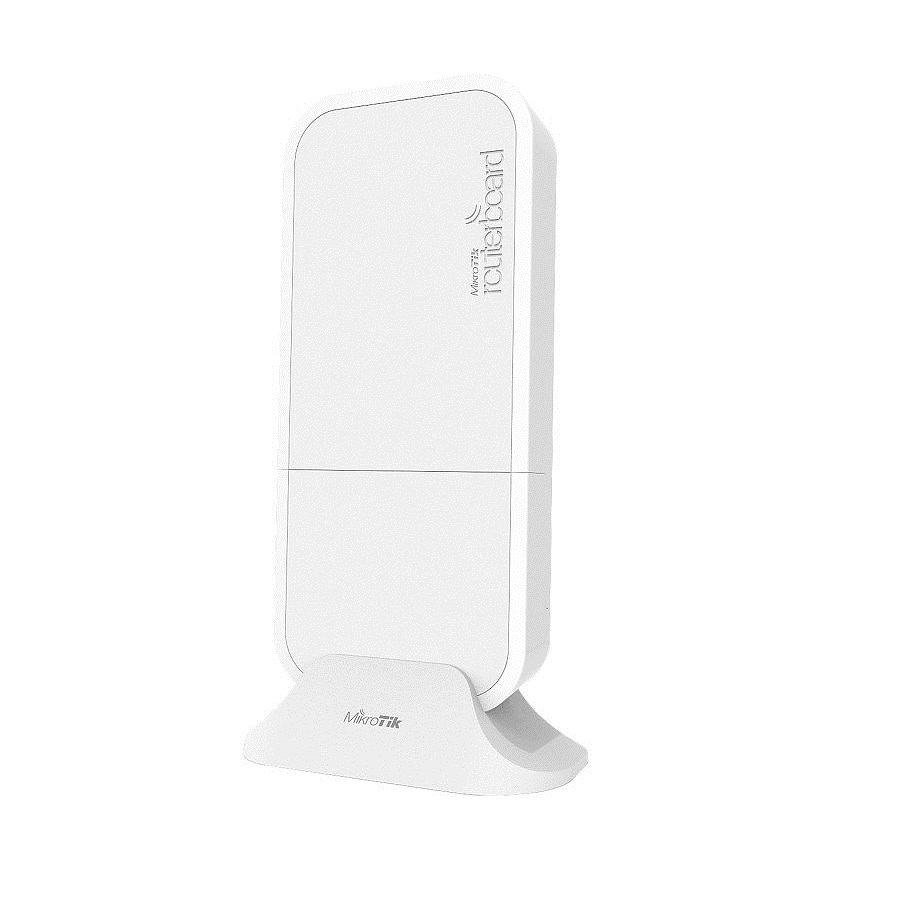

The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.
Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.
Specifications
Specifications RBwAPR-2nD
| Product code | RBwAPR-2nD |
| 10/100 Ethernet ports | 1 |
| Antenna gain dBi for 2.4 GHz | 2 |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| DC jack | 9-30 V |
| Dimensions | 185x85x30 mm |
| Max Power consumption | 6W |
| MiniPCI-e slots | 1 |
| Number of chains | 2 |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | Passive PoE |
| Power Jack | 2 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +60°C |
| Voltage Monitor | Yes |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
Wireless Specifications
| 2.4 GHz | Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) |
| 1MBit/s | 22 | -96 | 158 |
| 11MBit/s | 22 | -89 | 158 |
| 6MBit/s | 20 | -93 | 100 |
| 54MBit/s | 18 | -74 | 4 63 |
| MCS0 | 20 | -93 | 100 |
| MCS7 | 16 | -71 | 40 |
