MikroTik RBwAPR-2nD&R11e-LR8 R11e-LoRa8 and wAP LoRa8 kit supports 863-870 MHz 2.4 GHz WLAN interface and Ethernet port
- SKU: RBwAPR-2nD&R11e-LR8
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

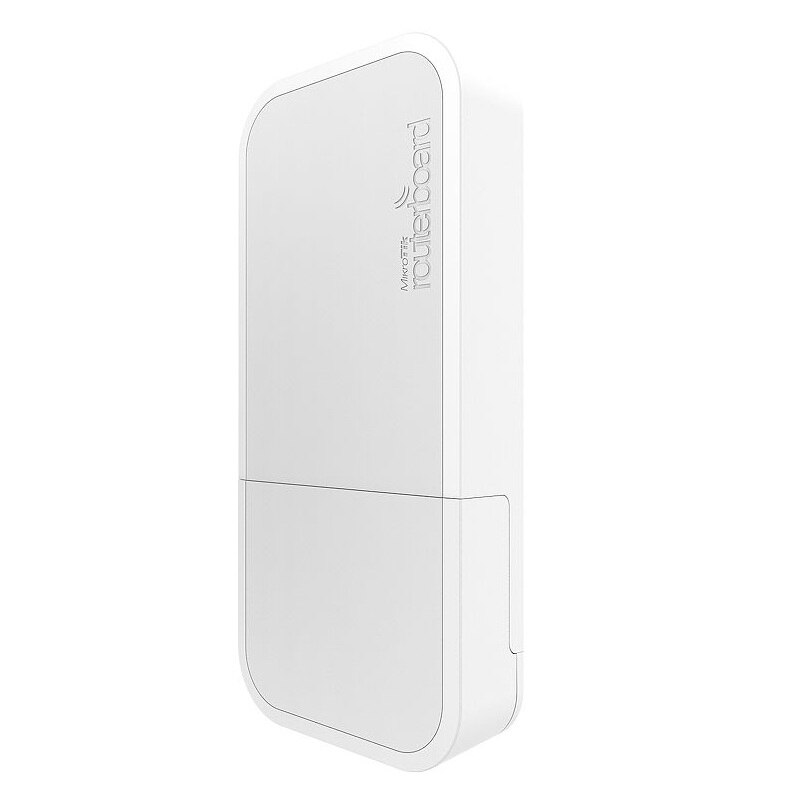

MikroTik RouterBOARD RBwAPR-2nD&R11e-LR8
R11e-LoRa8 and wAP LoRa8 kit supports 863-870 MHz, 2.4 GHz, 650MHz CPU,64MB RAM, 802.11b/g/n, dual-chain

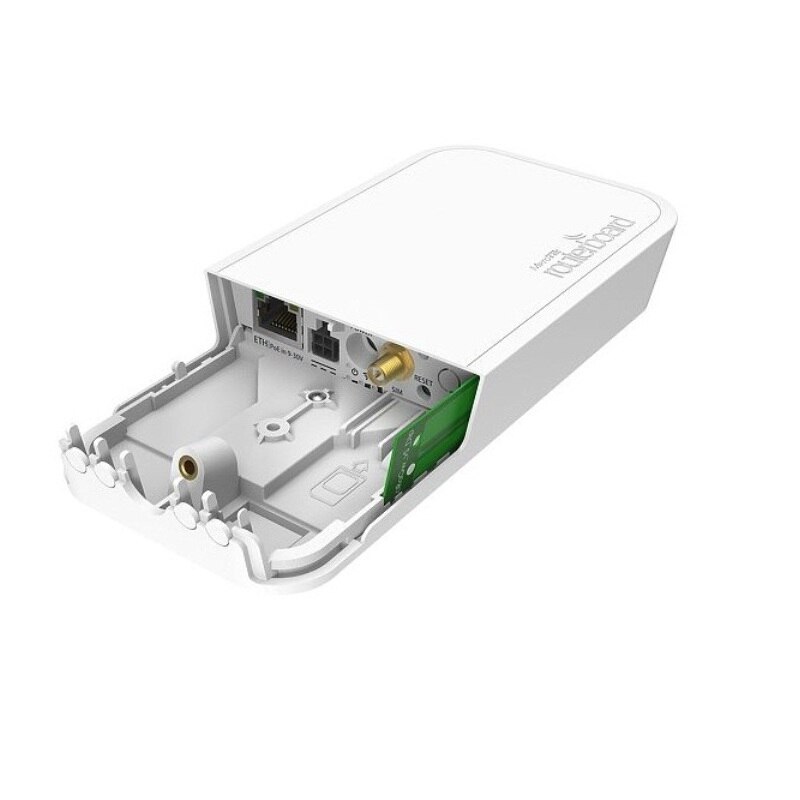

wAP LR8 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.
wAP LR8 kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
Specifications
Specifications RBwAPR-2nD&R11e-LR8
Product code | RBwAPR-2nD&R11e-LR8 |
CPU | QCA9531 650 MHz |
Size of RAM | 64 MB |
10/100 Ethernet ports | 1 |
Wireless | Built-in 2.4 GHz 802.11b/g/n, dual-chain |
Antenna gain | 2 dBi |
PoE in | Yes |
Supported input voltage | 9 V - 30 V (Passive PoE) |
Dimensions | 185 x 85 x 30 mm |
Operating ambient temperature | -40°C .. +60°C |
Operating system | RouterOS, License level 4 |
Max power consumption | 7 W |
