Mikrotik 720MHz CPU, 128MB RAM, 3x Gigabit Ethernet, 2xSFP cage, built-in 5GHz 3x3 MIMO wireless
- SKU: RB953GS-5HnT-RP
Product Information
Mikrotik RouterBOARD 5GHz 3x3 MIMO Triple Chain (International Version)
720MHz CPU, 128MB RAM, 3x Gigabit Ethernet, 2xSFP cage, built-in 5GHz 3x3 MIMO wireless
Product is EOL and here is suggested alternative RBM33G

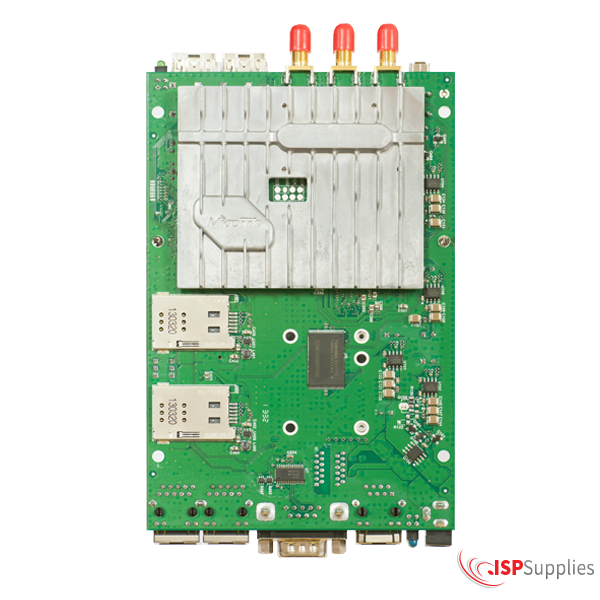

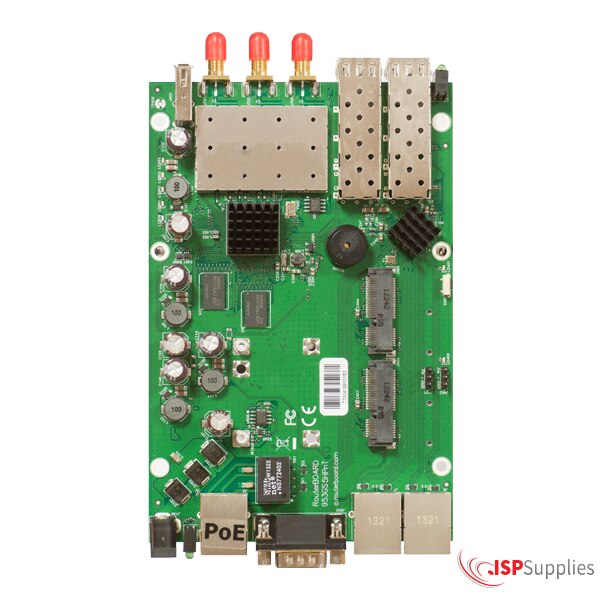

RouterBOARD 953GS-5HnT-RP is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.
RB953GS-5HnT-US is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.
Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.
Unit comes with preinstalled RouterOS Level5 license.
Specifications
Specifications RB953GS-5HnT-RP
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCI-e slots | 2 |
| Wireless chip model | QCA9558 |
| Wireless standards | 802.11a/n |
| Number of USB ports | 1 |
| Power Jack | 1 |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| Dimensions | 183x105x24mm |
| Operating System | RouterOS |
| License level | 5 |
| CPU | QCA9558 |
| Max Power consumption | 25W |
| SFP ports | 2 |
| USB slot type | USB type A |
| Storage size | 128 MB |
| Storage type | NAND |
